P-Pack 4PF/NF/13A

P-Pack powerfeed unit with 4 UK sockets, master 13A fuse

£23.00

SKU: DRD- P-Pack 4PF/NF/13A Category:

Description

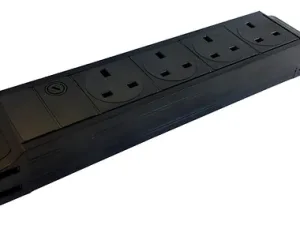

P-PACK 4PF/NF/13A – 4-Way Under-Desk Power-Feed Unit with Master 13 A Fuse

Short Description

A robust under-desk power-feed module providing 4 UK mains sockets protected by a master 13 A fuse, designed for fixed workstation power applications. Offers a 20 mm gland entry to a terminal block for hard-wired installation under desks or in cable trays.

Key Features

  • 4 × UK BS1363 sockets, wired via master 13 A fuse rather than individual fuses.

  • 20 mm gland entry with terminal block for clean hard-wired connection.

  • Designed for under-desk mounting or cable tray installation — ideal for workstation power distribution.

  • Durable ABS plastic housing, engineered for office environments.

  • Complies with BS6396 for fixed workstation power feed installations (when installed correctly).

Technical Specifications

Specification Detail
Socket count 4 × UK 13 A (BS1363) mains sockets
Fuse protection 1 × master fuse rated 13 A
Supply entry 20 mm gland into terminal block
Mounting Under-desk or inside cable tray
Housing material ABS plastic extrusion
Standards compliance Suitable for BS6396 compliant workstation installations
Additional notes Daisy-chaining only via suitable inter-connector leads; start lead required for feed

Ideal For / Use Cases

  • Workstations with multiple equipment (PCs, monitors, charging devices) that need a clean under-desk power feed.

  • Office fit-outs where desks or cable trays are used, and need a fixed under-desk power module rather than visible extension leads.

  • Installations where cost-effective power distribution is required, and individual socket fusing isn’t mandatory (master-fused only).

  • Modular furniture environments or refurbishment projects that specify hard-wired feed units.

Installation & Safety Notes

  • Must be installed by a qualified electrician in accordance with current wiring regulations.

  • Use correct cable sizing, terminate into the terminal block through the 20 mm gland, ensure proper strain relief.

  • Mount securely under the desk or inside the cable tray with suitable fixings and allow access for inspection and maintenance.

  • If daisy-chaining downstream units, ensure the total load on the module does not exceed the fuse rating (13 A).

  • Ensure correct earthing, circuit protection upstream, and support for BS6396 requirements if part of fixed workstation supply.

Related Products

  • P-PACK 6PF/NF/13A – 6-socket master-fused variant.

  • P-PACK 4PF/13A – 4-socket individually-fused version.

  • P-PACK 4PF/NF/RCBO – 4-socket master-fused and RCBO protected for higher safety spec.

Why Buy From Data Room Direct

At Data Room Direct we specialise in power and data infrastructure solutions tailored for modern office workstations. The P-PACK 4PF/NF/13A offers a reliable, hard-wired under-desk power feed option with master fuse protection — ideal for professional installations, installations with fixed desks and cable-tray systems. With UK-based service, accurate support and trusted stock, you are supported from specification through to commissioning.

FAQs

Q: What does “master fuse” mean?
A: The module uses one fuse (13 A) to protect all sockets, rather than individual fuses per socket. This simplifies maintenance but doesn’t isolate faults at a socket-by-socket level.
Q: Can I mount it on the desk top?
A: It’s designed primarily for under-desk or inside tray mounting. If surface mounting is required, ensure secure fixing and proper ventilation.
Q: Is this unit RS6396 compliant?
A: Yes — when installed correctly in a fixed workstation power feed in line with BS6396 requirements.
Q: Does the unit include a feed lead or connector?
A: No — this is a supply-entry unit via 20 mm gland to terminal block. It requires your own supply feed cable and any inter-connector leads if chaining.

Call to Action

Upgrade your workstations with a neat, professional under-desk power feed.

For project-spec enquiries, wiring advice or volume installation support, contact us at info@dataroomdirect.com or call 0800 852 1010.
