PD Surface unit with 2x UK sockets, dual USB charger, 1 x Type A, 1 x Type C Desk cutout 63 x 246mm

Description

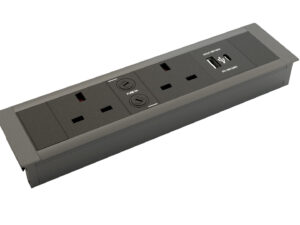

PD Surface Unit – 2 × UK Sockets + Dual USB (Type A & C) – Desk Cut-out 63 × 246 mm

Product Description

Overview
Built for the modern office environment, this surface-unit power module brings essential connectivity to the desktop – combining 2 UK mains sockets with a high-quality dual USB charger (Type A + Type C) in a compact, flush-mounted style. The unit is designed to fit a 63 mm × 246 mm desk cut-out and clamps securely into clean desk surfaces.

Key Features

• Two (2) UK BS 1363 standard sockets, each fused at 5 A.

• Dual USB charging ports: one Type A and one Type C – enabling fast and flexible USB-charging of phones, tablets, etc.

• Desk cut-out size: 63 mm (width) × 246 mm (length) – ideal for standard office workstations.

• Surface mount design fits flush into the desk – ideal for retro-fits or new office builds.

• Certified to UKCA & CE standards for safety and compliance.

• Integrated clamp system enables mounting to most desk thicknesses with ease.

• GST system input/output allows custom starter and inter-connecting leads to be used for flexibility in office power layouts.

Ideal For

• Office workstations where users need direct access to mains and USB charging ports.

• Meeting rooms, hot-desks, and agile workspace setups.

• Retro-fitting or new installations where a flush desk power solution is preferred.

• Environments requiring a modern USB-C ready charging port alongside traditional mains power.

Important Note
Please note: Starter cables (to connect to your mains feed) are not included and must be purchased separately. Choose the required length when ordering. dataroomdirect.com

Specifications

Ordering Options & Accessories

• Starter Leads: Select from various lengths (1 m, 2 m, 3 m, etc.) when ordering.

• Inter-connect leads: For linking units in series or expanding to other power/data modules.

• For best results, plan your cable routing under‐desk and leave sufficient clearance for the clamp system.

Installation & Usage Tips

• Desk cut-out: Ensure your workstation meets the 63 × 246 mm cut-out dimension with sufficient clearance underneath.

• Orientation: Position the socket and USB ports where they are easily accessible to users but with minimal cable clutter.

• Cable feed: Use the GST connector system to link back to your mains power supply, maintaining safe and serviceable runs.

• Mounting: Tighten the integral desk clamp so the unit sits flush and secure—check for desk thickness compatibility.

• Safety: Ensure the supply circuit is fused appropriately (e.g., via 5 A protection) and conforms to UK wiring regulations.

Why Choose This Product from DRD Office Power

As part of the DRD Office Power offering, this unit gives you a tidy, low-profile, professional desk power solution that modern offices demand. With included USB-C charging, it stays future-ready. And because you’re ordering through DRD Office Power (info@dataroomdirect.com), you get specialist service tailored to commercial installs — whether for one desk or a full office rollout.

FAQs

Q: Is the USB charger fast-charging capable?
A: Yes, the unit includes a dual USB charger (Type A and Type C) rated at 2.1 A output providing reliable charging for smartphones, tablets, and USB-C devices.

Q: Can multiple units be a chained together?
A: Yes — the GST input/output provisions allow installer-friendly linking of units using inter-connect leads, offering flexibility for desk runs.

Q: What desk thickness will it fit?
A: The unit features an integral clamp to suit common desk panel thicknesses. Confirm actual desk thickness and clearance during installation planning.

Q: What about certification and safety?
A: The unit is UKCA & CE certified, and comes with fused UK sockets. All wiring must still align with relevant UK electrical regulations.
