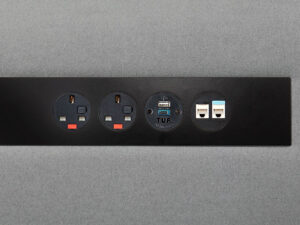

petra-black-UKF-TUF-AC-2RJ45

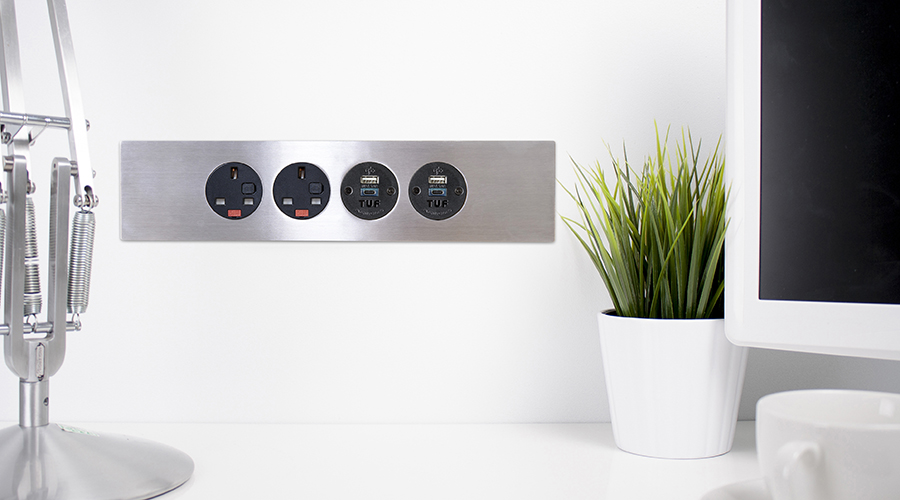

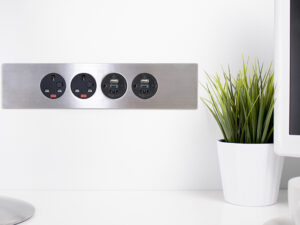

petra-SS-2uk-2tuf-web

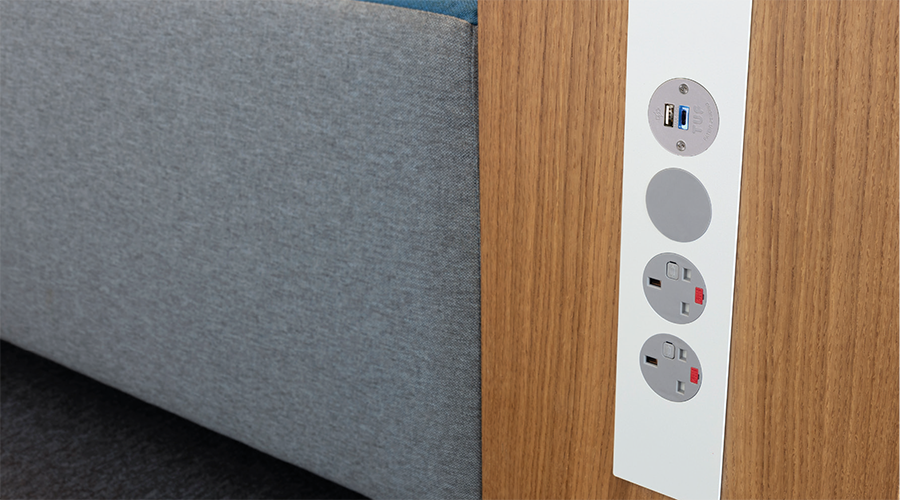

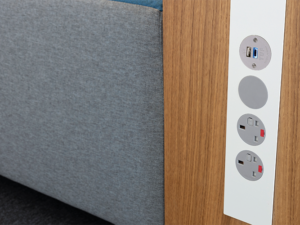

petra-1-copy-web
Full Screen

Petra

2mm Stainless steel fascia
Wide range of power sockets
Optional TUF A+C 25W
Built in mounting clips

UK Made to order – Please note delivery will be 15 working days aprox. and larger orders will take longer

Datasheet
Fitting instructions

£110.00

SKU: DRD-OE-Petra Category:

Description

PETRA is a premium panel mount power and data solution from OE Electrics, designed to complement the very best in contemporary office furniture.

The design highlight of PETRA is the one piece matt white or brushed finish stainless steel socket frame, with contrasting circular black or grey power and data fascias.

PETRA’s four socket apertures can be fitted with your choice of UK or international power sockets, the class leading OE TUFA+C25A:Twin USB Fast charger and data/AV connections.

PETRA’s built in mounting clips allow fast on site or factory screwless installation into screens from 5mm to 15mm thick.

Construction:

Power Unit body – Fire retardant ABS. Socket fascias – Fire retardant polycarbonate. Socket frame – 2mm brushed stainless steel.

Colours:

Socket frame: Matt white or brushed stainless steel Socket fascias: Black or grey

Socket Fusing:

To enable compliance to BS6396 UK sockets are fitted with 5 x 20mm anti-surge ceramic fuses, with colour-coded fuse clips to denote the rating (3.15A/5A)

Power entry/cord options:

Power in – Integral GST18-3 male connector. Power out – Optional GST18-3 female connector.

Installation:

PETRA fits into a 325mm x 65mm rectangular cut out in metal or wood screens 5mm to 15mm thick. Built in spring action mounting clips allow secure fixing without need for screws (rear access required).

Quality and Testing:

All PETRA units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch

  • Visual: Configuration and appearance.
  • Power sockets: Continuity, polarity, insulation & earth
  • USB charger: Output voltage and resistance

“We test every pin on every connection in every socket”

CE Marking

All units built with UK and European socket types are CE marked by OE Electrics as complying with: – Electromagnetic Compatibility Directive 2014/30/EU – Low Voltage Equipment Directive 2014/35/EU – RoHS2 Directive 2011/65/EU

Certifications

AC power socket: The fitted sockets will be certified to the appropriate national/international standard eg: BS1363/5733, IEC60884-1, CCC, AS/NZS3112. OE TUF 25W: Independently certified to IEC/UL 62368-1. Cable, connectors & mains plug: Independently certified to the appropriate national/international standard.

PETRA is ETL certified/listed for use in the USA and Canada. . PETRA is denoted by code PU. Please contact us for configurations certified.

Dimensions:



Cut-out size:
