RCBO- under desk bundle

Description

RCBO Under Desk Bundle

Overview

Deliver a robust, protected power solution for under-desk installations with this bundle designed for modern office furniture. This package integrates modular under-desk sockets with built-in RCBO protection — an ideal fit for flexible workstations, sit/stand desks and safe power distribution beneath work surfaces.

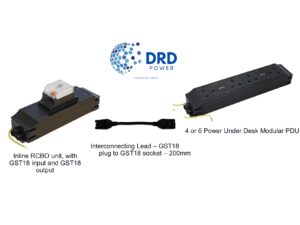

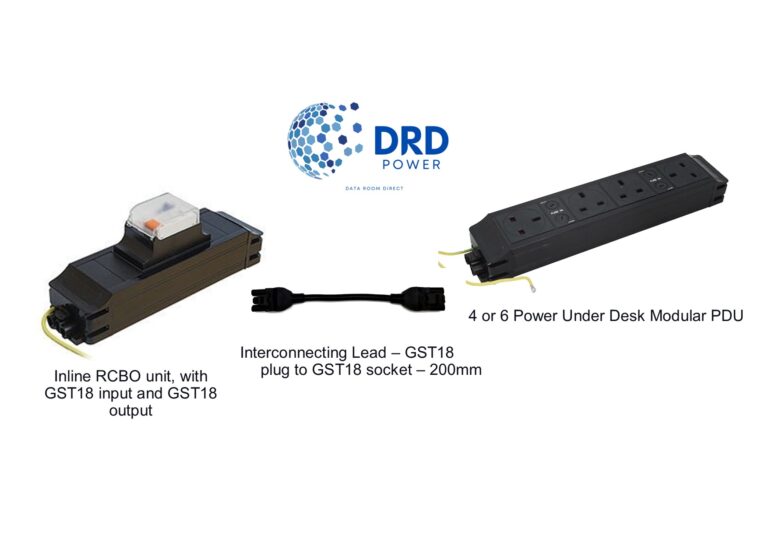

What’s Included

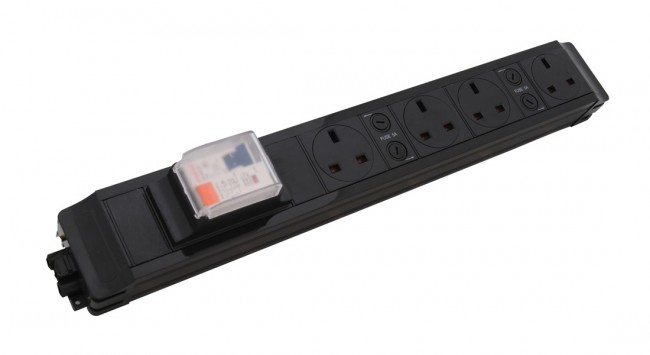

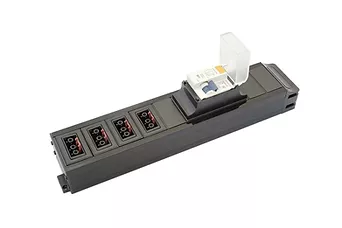

• One under-desk modular unit: either a 4-gang or 6-gang configuration (4 × UK or 6 × UK sockets) depending on selection.

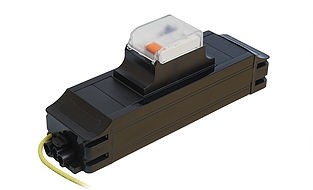

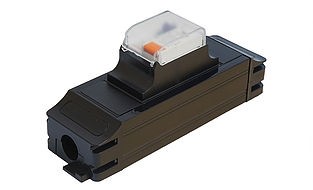

• Inline RCBO feed unit: An RCBO (Residual Current Circuit Breaker with Overcurrent protection) for added safety and compliance, GST18 output.

• Starter or inter-lead: Length options (1 m, 2 m, 3 m) available to connect to your mains feed.

Key Features

• RCBO protection built-in: The RCBO inline module ensures both residual current (leakage) and overcurrent protection — making it suitable for compliant installations under the desk.

• Modular under-desk sockets: Choose 4 or 6 UK sockets in the bundle, giving flexible outlet capacity to match device load.

• Hard-wired or plug-in compatibility: The feed module supports 20 mm gland wiring with terminal block or GST style connector output — ideal for modern office-power infrastructure.

• Office-fit design: The unit is mounted under desk or inside cable tray / furniture fit-out, keeping desk surfaces uncluttered while ensuring safe power distribution.

• Compliance: Designed to meet standards for under-desk power distribution (for example BS6396 when used appropriately).

Benefits

• Safety first: The RCBO gives an extra layer of protection compared to standard fused sockets, reducing risk of electrical faults under-desk.

• Neat workstation look: Outlets and cabling are hidden beneath the desk, giving a clean, professional finish above surface.

• Flexible capacity: Option to choose either 4-gang or 6-gang makes the bundle adaptable depending on how many devices you need to power/panel beneath each desk.

• Scalable fit-out solution: Ideal for commercial furniture, hot-desking zones, agile workplaces where numerous under-desk power points are required.

• Installer-friendly: The GST-style connector and gland option make installation easier for contractors integrating into furniture or tray systems.

Typical Applications

• Sit/stand desks in open-plan offices where devices (PC, monitors, lamps, chargers) all feed from one tidy under-desk module.

• Hot-desking zones, coworking spaces and shared workstations where neat power distribution and safety-compliance are important.

• Furniture / fit-out installations where under-desk power needs to be integrated into trays or cable management systems.

• Workshops, training rooms or flexible workspace layouts where modular under-desk power with protection is required.

Installation & Usage Tips

• Decide whether 4-gang or 6-gang is sufficient for your device load; allow head-room for future devices.

• Choose appropriate starter lead length — 1 m, 2 m or 3 m options available — to suit your desks / power feed location.

• Mount the under-desk unit securely beneath the desk or inside the cable tray, ensuring accesibility for maintenance.

• Connect the RCBO feed unit as specified — either via 20 mm gland wired to your supply or via the GST-style connector output.

• Ensure compliance with the relevant wiring regulations and furniture power standards (e.g., BS6396 for desk power when plugged) as noted in supplier datasheets.

• Label and document the power feed for each workstation so maintenance or future changes are simpler.

Specifications (Indicative)

• Configuration: 4-gang (4 × UK sockets) or 6-gang (6 × UK sockets) units.

• Protection: 16 A RCBO type C, 30 mA residual current protection.

• Input/Output: GST male/female connector output or 20 mm gland terminal block (depending on wiring setup).

• Mounting: Under-desk / under-furniture tray compatible.

• Standards compliance: Under-desk modules designed for use with office furniture power systems; may comply with BS6396 when installed correctly.
  (Please refer to full datasheet or contact us for detailed dimensions, wiring diagram and load ratings.)

Alternative for:

4 Power Under Desk Modular with RCBO

6 Power Under Desk Modular with RCBO
