20U IP65 Outdoor Data Cabinet 600x650mm – Lande

Description

Professional 20U IP65 floor-standing outdoor data cabinet designed to protect telecoms, networking and industrial equipment from demanding environments. Features double-layer pre-galvanised construction, 3-point locking and a 200mm plinth. Finished in Light Grey RAL7035.

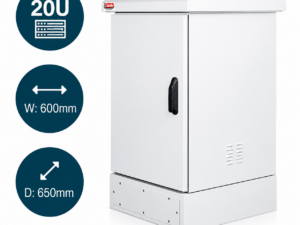

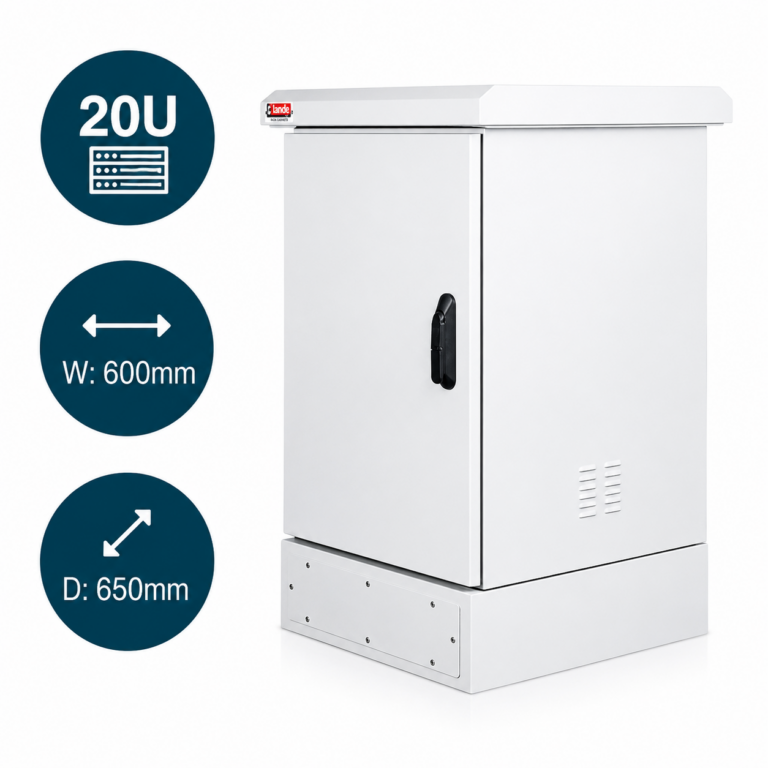

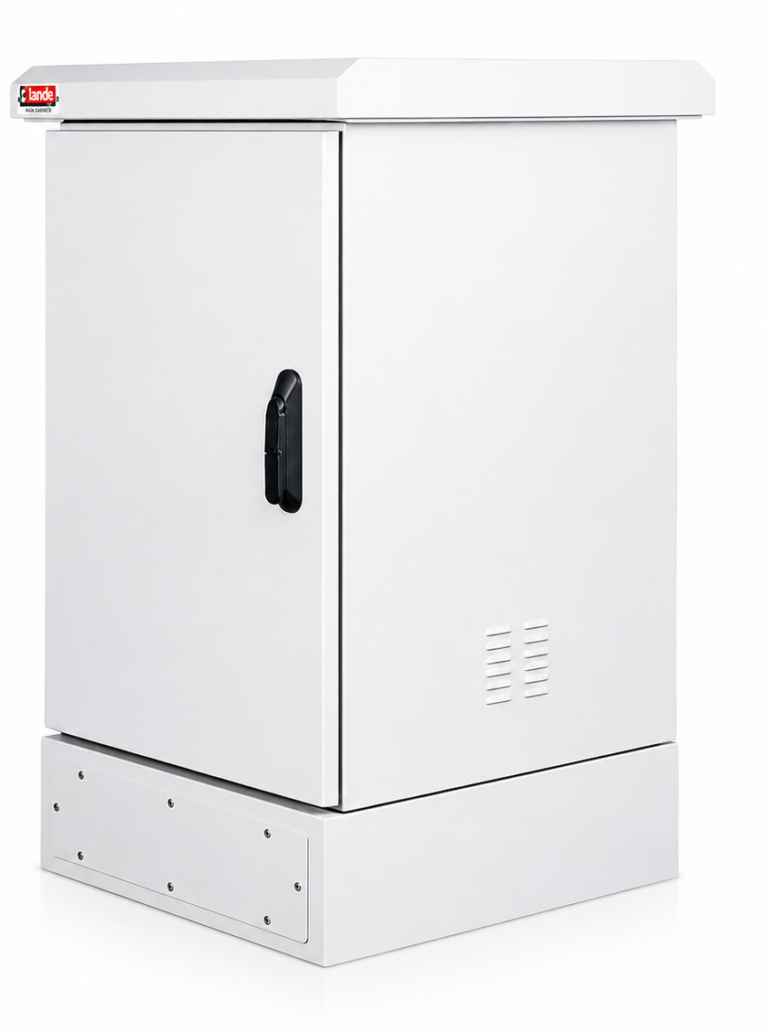

Lande 20U IP65 Outdoor Data Cabinet – 600x650mm

The Lande 20U IP65 Outdoor Data Cabinet provides a robust and professional enclosure for protecting networking, telecoms and industrial equipment in outdoor and demanding environments.

With 20U rack capacity, 600mm width and 650mm depth, the cabinet provides useful equipment capacity while maintaining a relatively compact footprint.

Its IP65 protection to EN60529, polyurethane-infused sealing system and double-layer pre-galvanised construction help protect installed equipment against dust and water ingress.

The cabinet also incorporates a hinged canopy roof with concealed louvres, allowing hot air to discharge through the roof while maintaining the protective enclosure design. A 200mm plinth with front and rear access panels is supplied as standard.

Key Features

• 20U rack capacity
• 600mm wide x 650mm deep
• 1258mm external height
• IP65 protection to EN60529
• Double-layer construction
• Pre-galvanised DX51 D+Z275 construction
• Polyurethane-infused sealing system
• Light Grey RAL7035 outdoor polyester finish
• 3-point locking swing handle
• Hinged canopy roof
• Concealed roof louvres for hot-air discharge
• Gland plate with 2 x PG21 and 1 x PG48 glands
• 2 x 28mm PVC blind caps
• Spare blank gland plate included
• 200mm plinth included
• Front & rear plinth access panels
• Stainless steel versions also available on request

Technical Specification

Specification	Details
Rack Height	20U
Width	600mm
Depth	650mm
External Height	1258mm
IP Rating	IP65
Construction	Double Layer
Material	Pre-Galvanised DX51 D+Z275
Colour	Light Grey RAL7035
Door Locking	3-Point Swing Handle
Roof	Hinged Canopy with Hidden Louvres
Plinth	200mm Included
Gland Plate	2 x PG21 + 1 x PG48
Blind Caps	2 x 28mm PVC
Spare Gland Plate	Included
Protection Standard	EN60529
Range	Lande IP65 Outdoor
DRD SKU	DRD-LANDE-IP65-828917

Ideal For

Outdoor networking installations, telecoms equipment, industrial communications, CCTV infrastructure, external data installations and other applications requiring increased protection from dust and water ingress.
