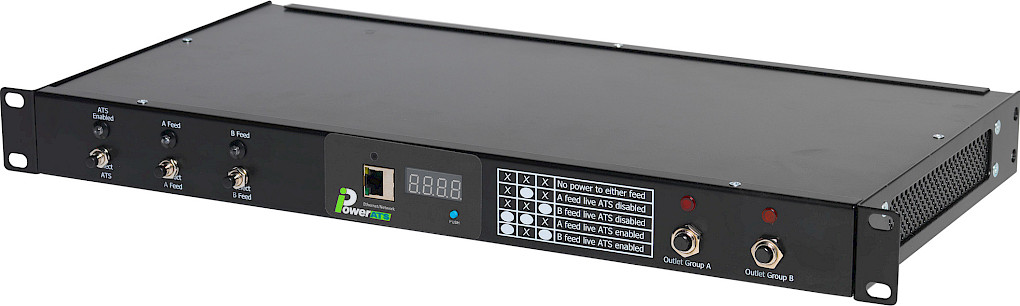

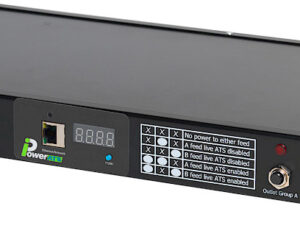

iPower Rack Automatic Transfer Switch – 16A & 32A ATS

UK-manufactured 1U automatic transfer switch for connecting single-cord IT equipment to two independent AC power feeds. Provides automatic or manual A/B source selection, manufacturer-stated 8–15ms live-and-neutral transfer, energy monitoring and remote management.

Choose dual C20, dual 16A commando or dual 32A commando inputs. All standard configurations provide ten IEC C13 outlets.

Made to order – allow up to 21 working days to despatch. Price on request.

Price on request

SKU: AT-120-04 Categories: ,

Description

Automatic A/B power switching for single-cord rack equipment

The UK-manufactured iPower Automatic Transfer Switch connects single-cord IT equipment to two independent AC power feeds. It monitors the selected source and can transfer the load to the alternative available feed automatically, or the source can be selected manually from the front panel or web interface.

Where it is used

Suitable for single-cord network switches, firewalls, communications equipment, legacy servers and other rack devices that require additional power-source resilience.

Made to order: allow up to 21 working days to despatch. Current lead time is confirmed with each quotation.

Key features

  • Automatic or manual A/B feed selection
  • Manufacturer-stated 8–15ms live-and-neutral transfer
  • Ten IEC C13 output sockets
  • Overall energy monitoring with stated 1% tolerance
  • Web interface, HTTP and SNMPv2
  • Email and SNMP alerts
  • UK manufactured and supported
  • Five-year return-to-base warranty

Choose your input configuration

Model Input Output Important details
AT-120-04-2XS1 2 × IEC C20 inlets 10 × IEC C13 Two input leads ordered separately
AT-120-04-2X3B 2 × 3m 16A IEC 60309 commando leads 10 × IEC C13 Attached input leads
AT-120-04-2X3C 2 × 3m 32A IEC 60309 commando leads 10 × IEC C13 Two groups of five outlets, each protected by a 16A thermal trip

Monitoring and management

The integrated meter reports RMS voltage and current, watts, VA, power factor, frequency, peak voltage, peak current, kWh consumption and internal temperature. Network settings support DHCP or a static IP over a 10/100Mbps Ethernet connection.

Download the ATS datasheet (PDF)

Technical specifications

Mounting format 19-inch rack mount, 1U
Enclosure depth 300mm
Construction Mild steel, black finish
Overall rating 16A or 32A, depending on selected configuration
Output sockets 10 × IEC C13
Earthing M6 earth stud
Manufacturer-stated standard BS EN 62368-1:2020
Declarations WEEE, RoHS, CE and UKCA stated by manufacturer
Warranty Five-year return to base

Important power information

An ATS switches between available power sources; it does not generate backup power or replace a UPS. Both incoming feeds must be correctly rated and suitably protected. Keep the connected load within the rating of the selected ATS and its upstream supplies.

The C20-input model does not include input leads. Order two suitably rated IEC C19-to-C20 leads separately and confirm their compatibility with the source supplies.

Frequently asked questions

Does this replace a UPS?

No. The ATS transfers the load between two available AC sources. It does not provide stored energy or create a backup supply.

Are the C20 input leads included?

No. The AT-120-04-2XS1 requires two compatible input leads, ordered separately. The 16A and 32A commando versions include attached three-metre leads.

Can iPower build another configuration?

Other inlet, outlet and enclosure combinations may be available for project requirements. Send us the required rating, connections, outlet types and quantity.

Related information

Browse IEC C19 power leads

Explore rack power distribution

Need help choosing?

Send the required quantity, available A and B source connections, maximum connected load and delivery postcode. We will confirm the appropriate configuration, current price and manufacturing lead time.

Request a Quote

Additional information

PDU Type

Automatic transfer switch
Rating

16A or 32A
Mounting

Horizontal 1U
Output

10 × IEC C13
