APC APDU11250ME NetShelter Advanced Gen 2 Metered PDU – 42 Outlets
Provide three phase rack power with the APC APDU11250ME. This vertical 0U PDU combines 21 × c13/c15/c19/c21 combination outlets and 21 × c13/c15 outlets with power metering for server and network installations.
Request a quotation: Send the part number, quantity and delivery postcode for pricing and availability.
Price on request
Description

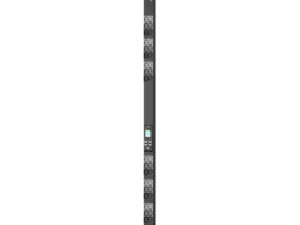

APC APDU11250ME Metered Rack PDU
Provide three phase rack power with the APC APDU11250ME. This vertical 0U PDU combines 21 × c13/c15/c19/c21 combination outlets and 21 × c13/c15 outlets with power metering for server and network installations.
Plan your setup
Check the input supply, plug, rack mounting space and equipment connections before ordering. Review the manufacturer datasheet and size the installation around the total and branch load limits.
Key features
- 21 × C13/C15/C19/C21 combination outlets and 21 × C13/C15 outlets
- IEC 60309 3P+N+PE (520P6); manufacturer designation 16A at 400V / 20A at 415V
- Vertical 0U mounting
- Power monitoring
Technical specifications
| Manufacturer | APC by Schneider Electric |
|---|---|
| Part number | APDU11250ME |
| PDU type | Metered |
| Phase | Three phase |
| Rated power | 11kW at 400V / 11.5kW at 415V |
| Input connection | IEC 60309 3P+N+PE (520P6); manufacturer designation 16A at 400V / 20A at 415V |
| Outlets | 21 × C13/C15/C19/C21 combination outlets and 21 × C13/C15 outlets |
| Mounting format | Vertical, 0U |
| Dimensions (H × W × D) | 1490 × 56 × 55 mm |
| Cable length | 3 m |
| Net weight | 5.7 kg |
| Manufacturer warranty | 36 months |
Frequently asked questions
How do I request a quotation?
Send the part number APDU11250ME, quantity and delivery postcode to Data Room Direct for pricing and current availability.
Can this PDU remotely switch outlets?
This listing is for a metered model. Do not assume metering includes remote outlet switching; ask us for a switched PDU if that function is required.
Technical downloads
Download manufacturer datasheet (PDF)
Need help choosing?
Call 0800 852 1010 or contact Data Room Direct for help with product selection, project quantities and delivery times.
Additional information
| PDU Type | Metered |
|---|---|
| Phase | Three phase |
| Mounting | Vertical 0U |
