APC Easy EPDU2232MBO Metered Outlet PDU – 32A 3 Phase, 24 Outlets
Provide three phase rack power with the APC EPDU2232MBO. This vertical 0U PDU combines 18 × iec c13 and 6 × iec c19 with individual outlet-level metering for server and network installations.
Request a quotation: Send the part number, quantity and delivery postcode for pricing and availability.
Price on request
Description

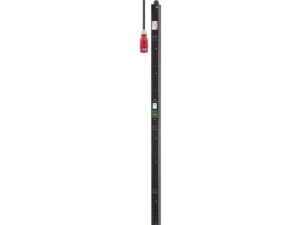

APC EPDU2232MBO Metered Rack PDU
Provide three phase rack power with the APC EPDU2232MBO. This vertical 0U PDU combines 18 × iec c13 and 6 × iec c19 with individual outlet-level metering for server and network installations.
Plan your setup
Check the input supply, plug, rack mounting space and equipment connections before ordering. Review the manufacturer datasheet and size the installation around the total and branch load limits.
Key features
- 18 × IEC C13 and 6 × IEC C19
- 400V, 32A, IEC 60309 3P+N+PE
- Vertical 0U mounting
- Outlet-level power measurement
Technical specifications
| Manufacturer | APC by Schneider Electric |
|---|---|
| Part number | EPDU2232MBO |
| PDU type | Metered outlet |
| Phase | Three phase |
| Rated power | 22kW |
| Input connection | 400V, 32A, IEC 60309 3P+N+PE |
| Outlets | 18 × IEC C13 and 6 × IEC C19 |
| Mounting format | Vertical, 0U |
| Dimensions (H × W × D) | 1800 × 55 × 56 mm |
| Cable length | 3 m |
| Net weight | 8.38 kg |
| Manufacturer warranty | 24 months |
Frequently asked questions
How do I request a quotation?
Send the part number EPDU2232MBO, quantity and delivery postcode to Data Room Direct for pricing and current availability.
Can this PDU remotely switch outlets?
This listing is for a metered model. Do not assume metering includes remote outlet switching; ask us for a switched PDU if that function is required.
Technical downloads
Download manufacturer datasheet (PDF)
Need help choosing?
Call 0800 852 1010 or contact Data Room Direct for help with product selection, project quantities and delivery times.
Additional information
| PDU Type | Metered outlet |
|---|---|
| Phase | Three phase |
| Mounting | Vertical 0U |
