C39 Hybrid Rack PDUs – 4 to 24 Way
C39 hybrid rack power distribution for equipment leads with IEC C14 or C20 plugs. Choose from five horizontal or vertical configurations and four input connections. Supplied with a 3m mains lead.
Delivery: Please contact us for current availability and lead time.
Images show representative configurations. Input plug supplied as selected.
Price range: £60.00 through £140.42 ex VAT Price range: £72.00 through £168.50 inc VAT
Description
C39 Hybrid Rack PDUs – 4 to 24 Way
Connect equipment leads with IEC C14 or C20 plugs to the same C39 hybrid outlet. This combines the flexibility of C13 and C19 socket formats, allowing the mix of connected equipment to change without committing to a fixed split of outlet types.
Choose your configuration

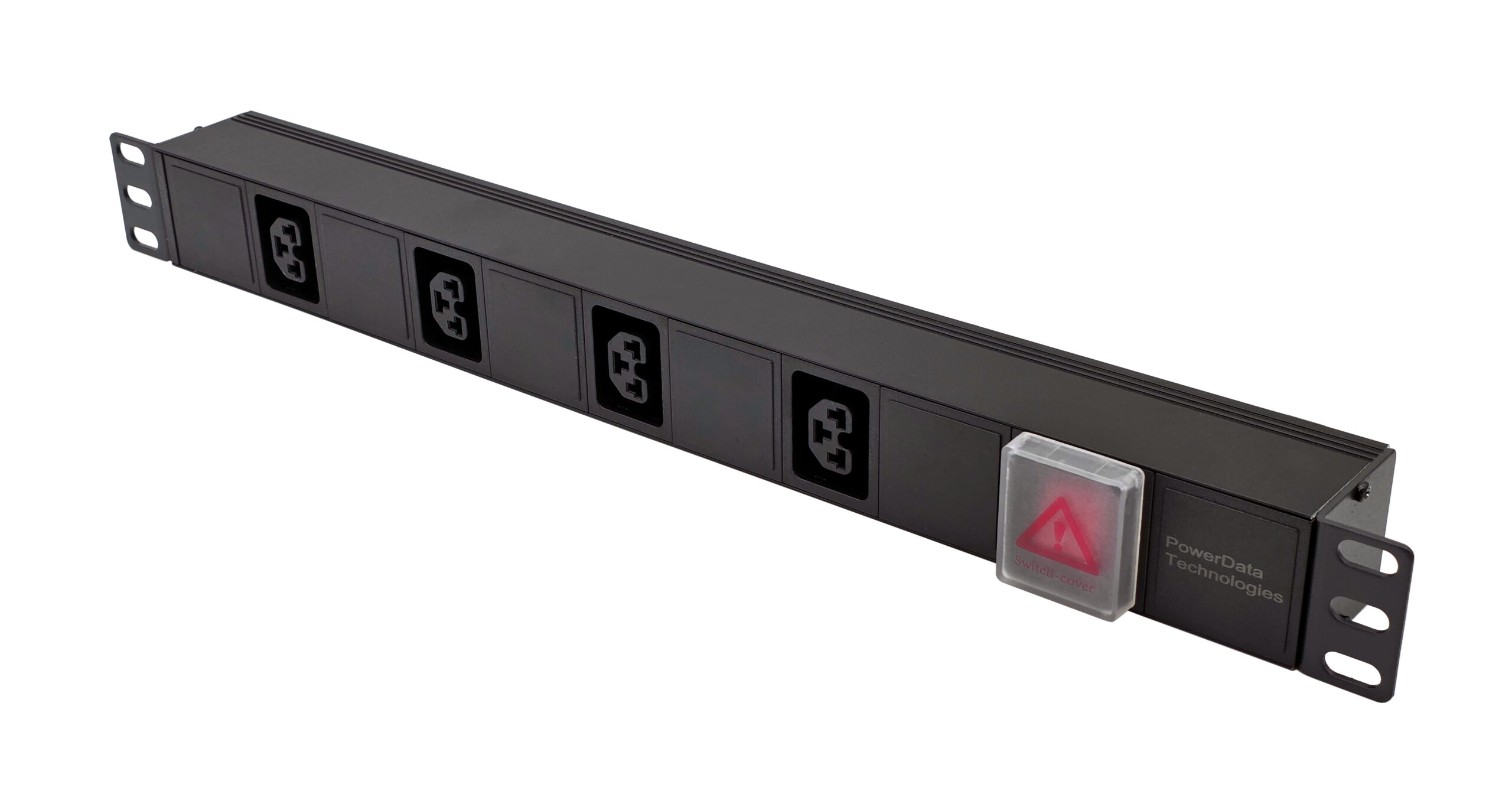

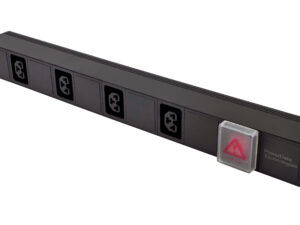

| 4 Way Horizontal 1U | HC39/4 |
|---|---|

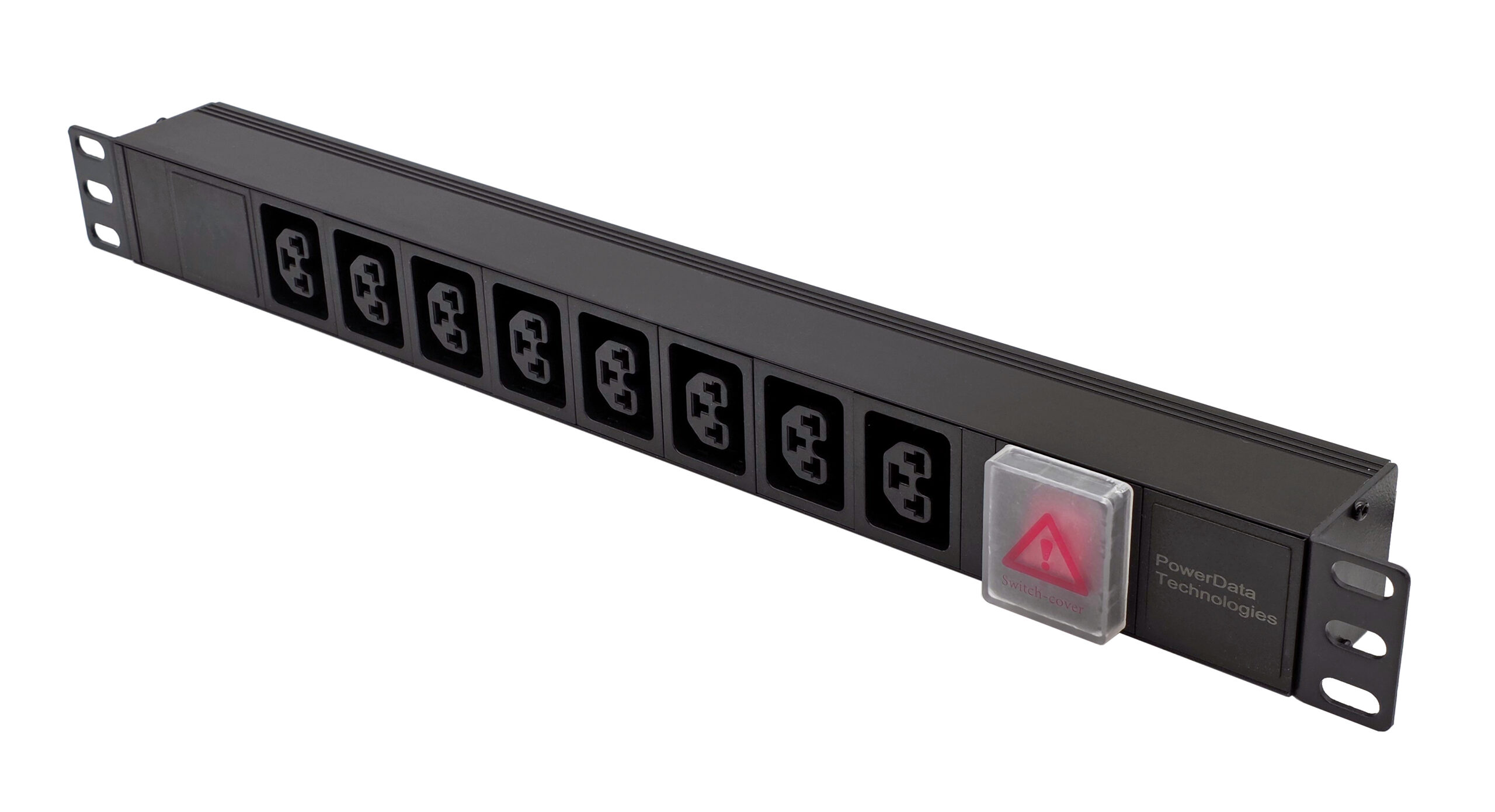

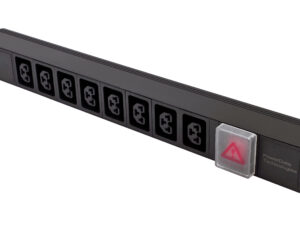

| 8 Way Horizontal 1U | HC39/8 |

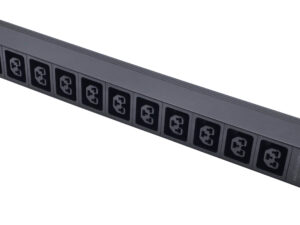

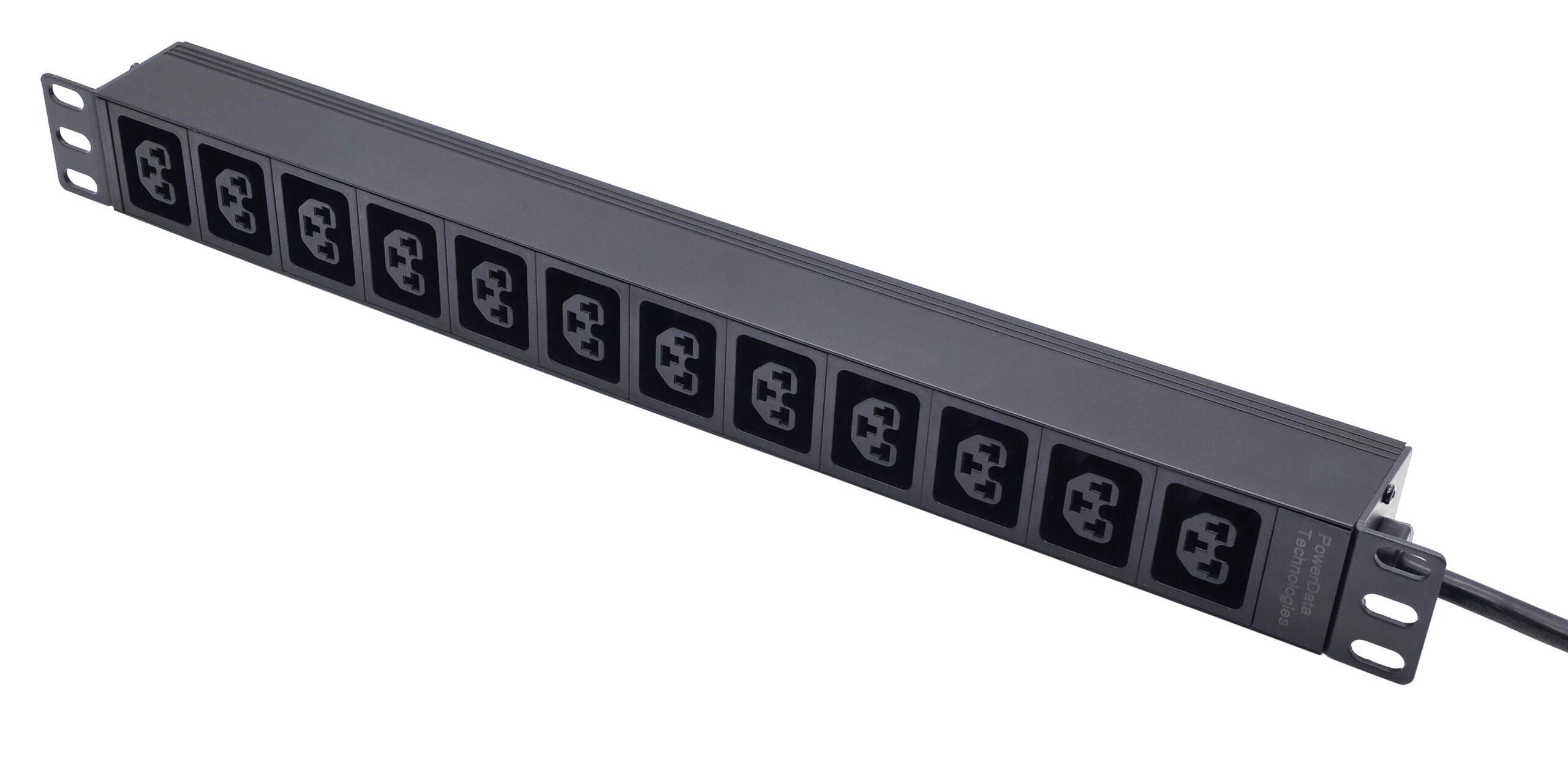

| 12 Way Horizontal 1U | HC39/12 |

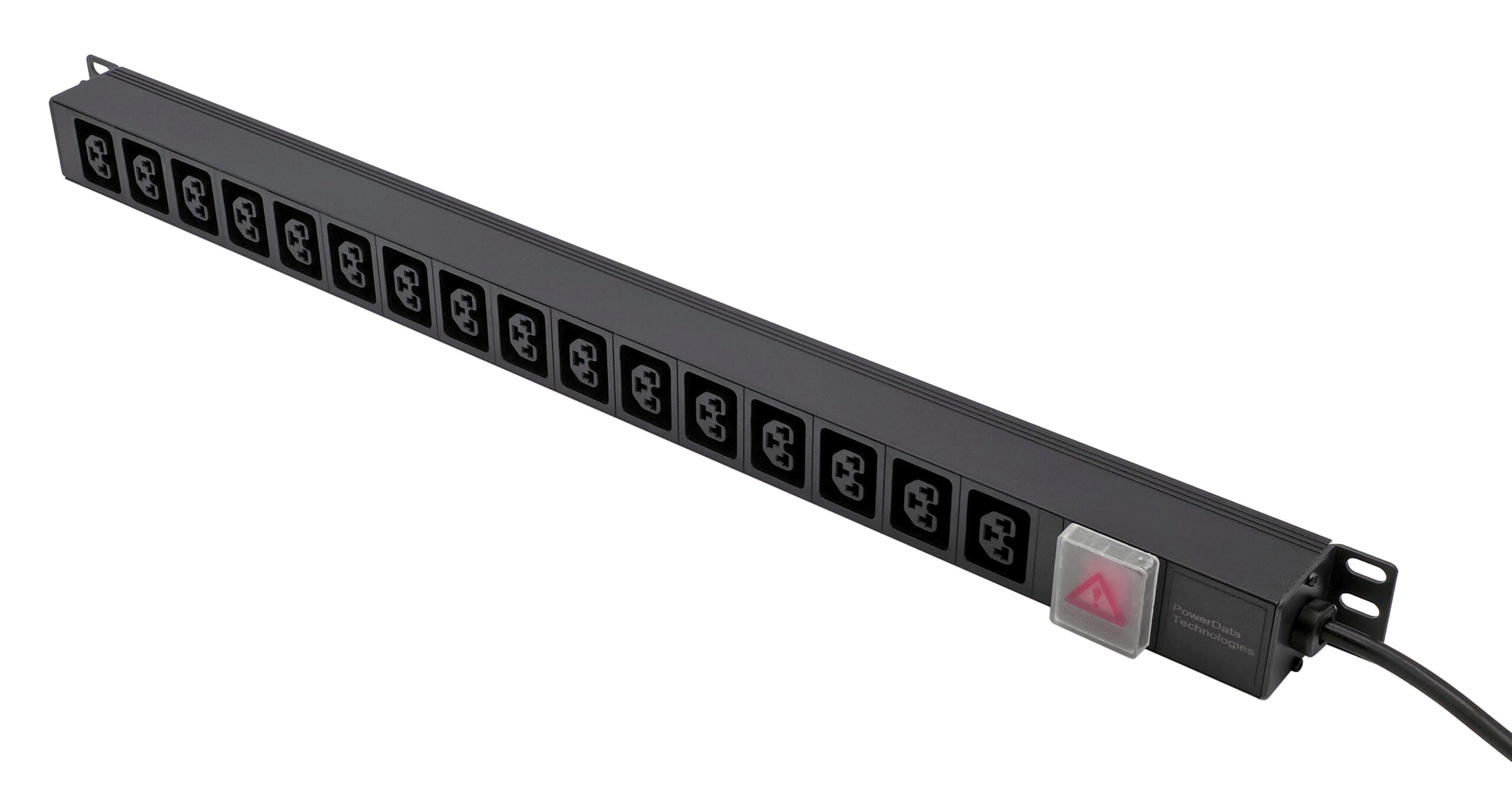

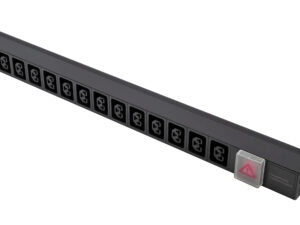

| 16 Way Vertical | VC39/16 |

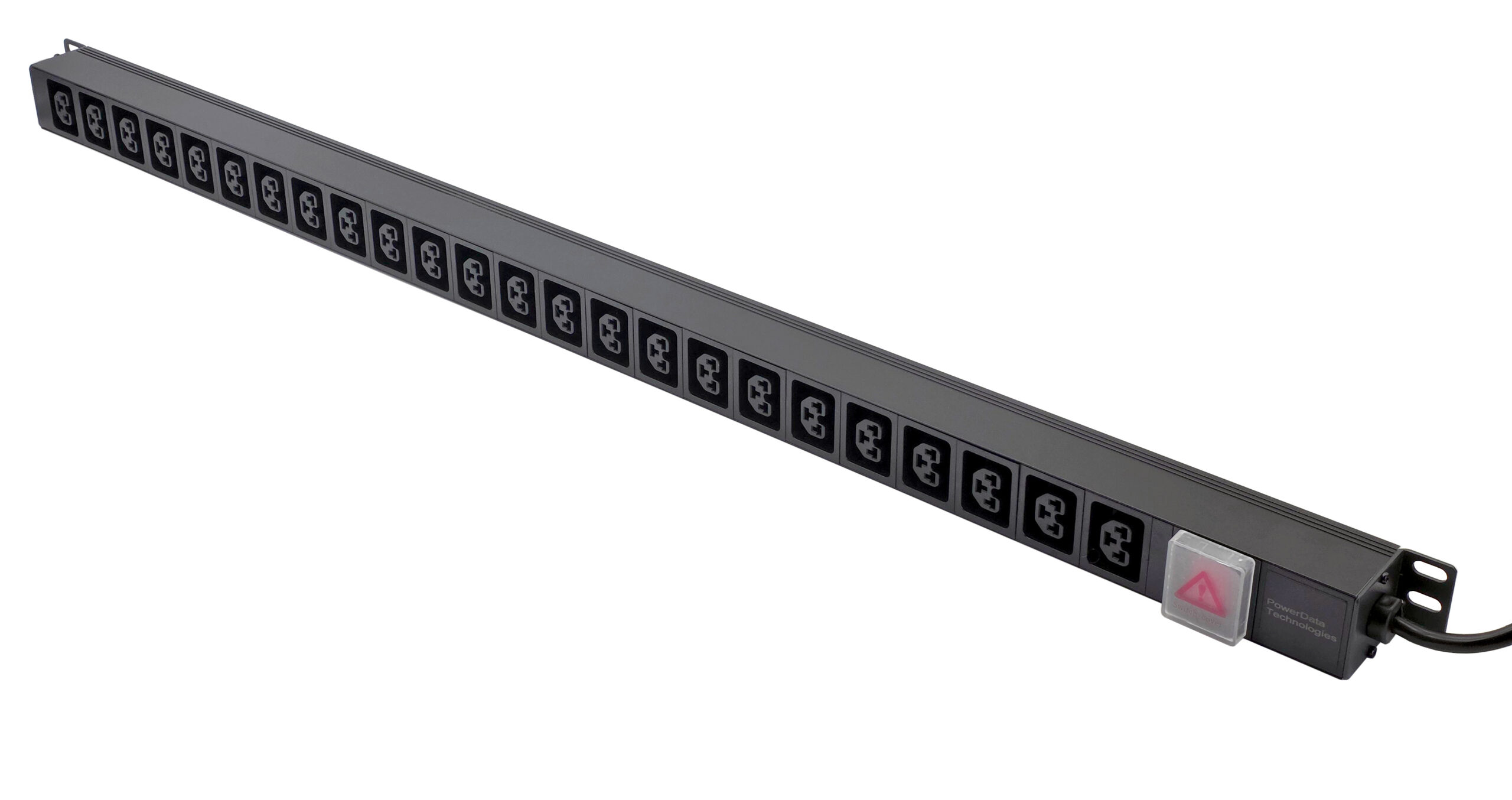

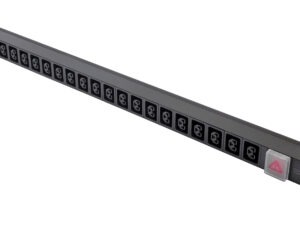

| 24 Way Vertical | VC39/24 |
Technical specifications
| Outlets | C39 hybrid sockets for IEC C14 and C20 plugs |
|---|---|
| Input connection | 13A UK; IEC C14; IEC C20; 16A Commando |
| Mains lead | 3m, 1.5mm² H05VV-F |
| Switch / protection | Covered master switch with neon indicator |
| Construction | Aluminium extrusion, PVC sockets and fascias, 2mm steel endcaps |
| Mounting | Rack mounting brackets; vertical units also support button mounting |
| Included | PDU and set of cage nuts |
| Maximum voltage | 250V |
| Manufacturer-listed compliance | RoHS, WEEE, CE and UKCA |
Planning your rack power
The input connection and marked PDU rating determine the total available capacity. Adding outlets does not increase that capacity. Select connecting leads suitable for your equipment and keep the combined load within the PDU, supply and lead ratings.
Longer mains leads and low-smoke cable options are available on enquiry.
Need help choosing?
Contact Data Room Direct for help with input connections, cabinet fit, project quantities and delivery times.
Additional information
| Configuration | 4 Way Horizontal 1U, 8 Way Horizontal 1U, 12 Way Horizontal 1U, 16 Way Vertical, 24 Way Vertical |
|---|---|
| Plug Options | 13A UK, IEC C14, IEC C20, 16A Commando |
