Description
Overview

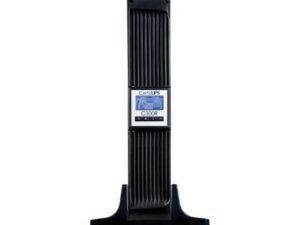

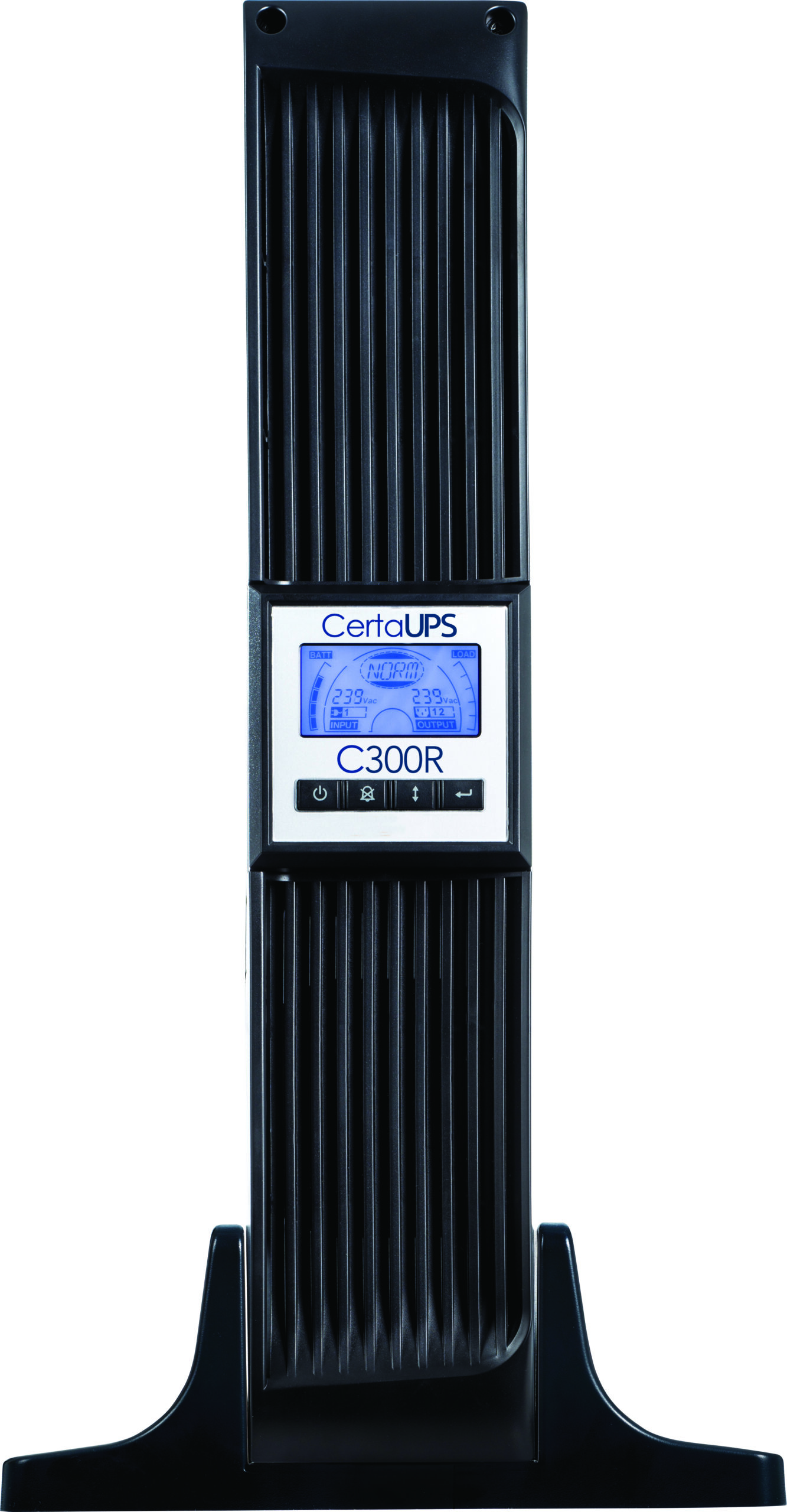

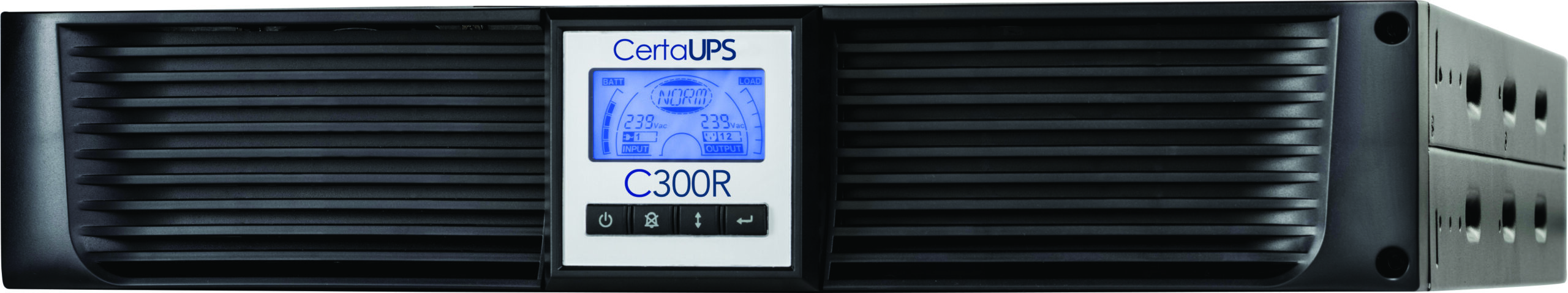

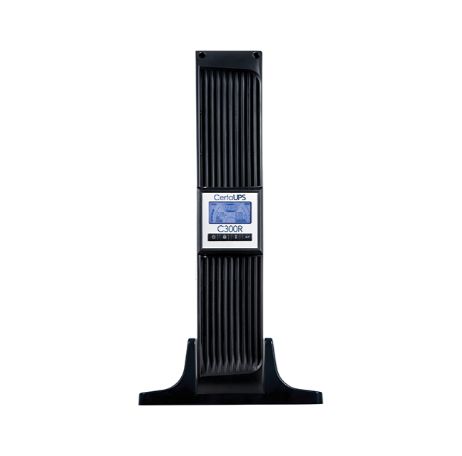

The CertaUPS C300R single phase range of line interactive UPS systems only take up 2U of rack space in a rackmount form and includes internal batteries for standard runtimes. The eurgonomic UPS comes with feet and rackrails allowing it to either be in rackmount or tower formation. The C300R series is ideal for telephone and security systems, IT servers and networks
Key Features
Rack/ Tower compact convertible design with rackrails included
External battery modules can be added for additional runtime
Intelligent monitoring software
Additional Features
- High efficiency UPS up to 97% with 0.9 output power factor
- Line interactive (VI) technology

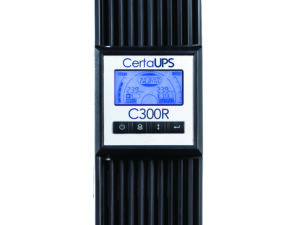

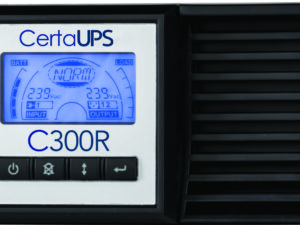

- Clear block LCD display
- Serial, USB, SNMP, MODBUS and Relay connectivity
- Network management for alerts and scheduled shutdown
- Battery modules
- Automatic voltage regulator (AVR)
- User-replaceable hot swappable batteries
Technical Specification
| WARRANTY | 3 Year Parts |
| RATING KVA | 1 / 1.5 / 2 / 3 |
| DIMENSIONS (WxDxH) | 440W x 430D x 88H (2U) (1000/1500VA), 440W x 600D x 88H (2U) (2000/3000VA) |
| WEIGHT | 18 / 20 / 28 / 32 |
| INPUT PHASE | Single Phase |
| INPUT VOLTAGE | 220/230/240VAC |
| INPUT VOLTAGE TOLERANCE RANGE | 176-288VAC |
| INPUT FREQUENCY | 50/60Hz |
| INPUT FREQUENCY TOLERANCE RANGE | ±5Hz |
| OUTPUT PHASE | Single Phase |
| OUTPUT POWER FACTOR | 0.9 |
| OUTPUT WAVEFORM | Sinewave |
| OUTPUT VOLTAGE | 220/230/240VAC (±5%) |
| OUTPUT FREQUENCY | 50/60Hz |
| OUTPUT EFFICIENCY | >95% (line mode), >82% (Battery mode) |
| BATTERY RUNTIME | 5 minutes at full load (1000/2000VA) 3 minutes at full load (1500/3000VA) |
| BATTERY DC VOLTAGE | 36VDC (1000VA/1500VA) / 72VDC (2000/3000VA) |
| BATTERY CHARGE CAPACITY | 1.5A |
| MECHANICAL AC OUTLETS | IEC C13*8 (1000VA / 1500VA / 2000VA models), IEC C13*8 and C19*1 (3000VA model) |
| OPERATING TEMPERATURE TOLERANCE | 0 – 40°C |
| STORAGE TEMPERATURE TOLERANCE | 0 – 40°C |
| RELATIVE HUMIDITY | <95% (non-condensing) |
| OPERATING ALTITUDE TOLERANCE | <1000m |
| COMMUNICATION | RS232 and USB |
| OPTIONAL COMMS | SNMP / dry contact relays / Modbus |
| PARALLEL | N/A |
| FUNCTIONS | EPO, RJ11 and RJ45 Filters, Expandable Battery Modules, Rack/Tower Flexibility, Rotatable LCD |
