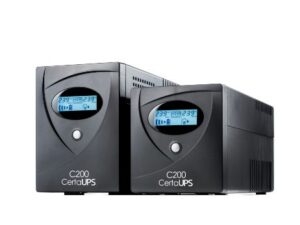

CertaUPSC200 – 1000VA, 1500VA and 2000VA

The C200 series is available in three power ratings 1000VA, 1500VA and 2000VA

Standalone Tower

Line interactive uninterruptible power supply with pure sinewave output

The C200 series is available in three power ratings 1000VA, 1500VA and 2000VA.

User Manual

Product Brochure

£235.00

SKU: DRD-Certa-c200 Category:

Description

Overview
The CertaUPS C200 single phase UPS range produces a pure sinewave output making it perfect or supporting critical loads. The UPS systems include AVR (Automatic Voltage Regulator) as standard, making them extremely effective even in poor mains supply conditions. Ideal for supporting sensitive applications such as CCTV, alarm systems, EPOS and small office networks

Key Features
Line interactive (VI) technology with automatic voltage regulator (AVR)
Inbuilt protection for modem and telephone
Intelligent monitoring software with USB connectivity

Additional Features
Automatic start
Auto shut down in the event of a mains fail
Smart LCD display
Pure sinewave output
PWM based controller

Technical Specification

WARRANTY 3 Year Parts
RATING KVA 1 / 1.5 / 2
DIMENSIONS (WxDxH) 146W x 350D x 160H (1000VA) / 146W x 397D x 205H (1500/2000VA)
WEIGHT 9 / 12.2 / 13.7
INPUT PHASE Single Phase
INPUT VOLTAGE TOLERANCE RANGE 162-290VAC
INPUT FREQUENCY 50/60Hz (Auto Sensing)
OUTPUT OUTPUT PHASE Single Phase
OUTPUT POWER FACTOR 0.7
OUTPUT WAVEFORM Pure sinewave
OUTPUT VOLTAGE 220/230/240VAC (±10%)
OUTPUT FREQUENCY 50/60Hz (±1Hz)
OUTPUT EFFICIENCY >97%
BATTERY RUNTIME 2 minutes (1000VA), 3 minutes (1500VA), 2 minutes (2000VA)
BATTERY DC VOLTAGE 24VDC (All models)
BATTERY CHARGE CAPACITY 0.5A
MECHANICAL AC OUTLETS 3*C13 (Battery) and 1*C13 (Surge only) (1000VA), 5*C13 (Battery) and 1*C13 (Surge only) (1500/2000VA)
OPERATING TEMPERATURE TOLERANCE 0 – 25°C
STORAGE TEMPERATURE TOLERANCE 0 – 40°C
RELATIVE HUMIDITY <95% (non-condensing)
OPERATING ALTITUDE TOLERANCE <1000m
COMMUNICATION USB
OPTIONAL COMMS N/A
PARALLEL N/A
FUNCTIONS Off-Mode Charging, AVR, Auto-Restart, Cold Start, RJ11 andRJ45 Filters, LCD
