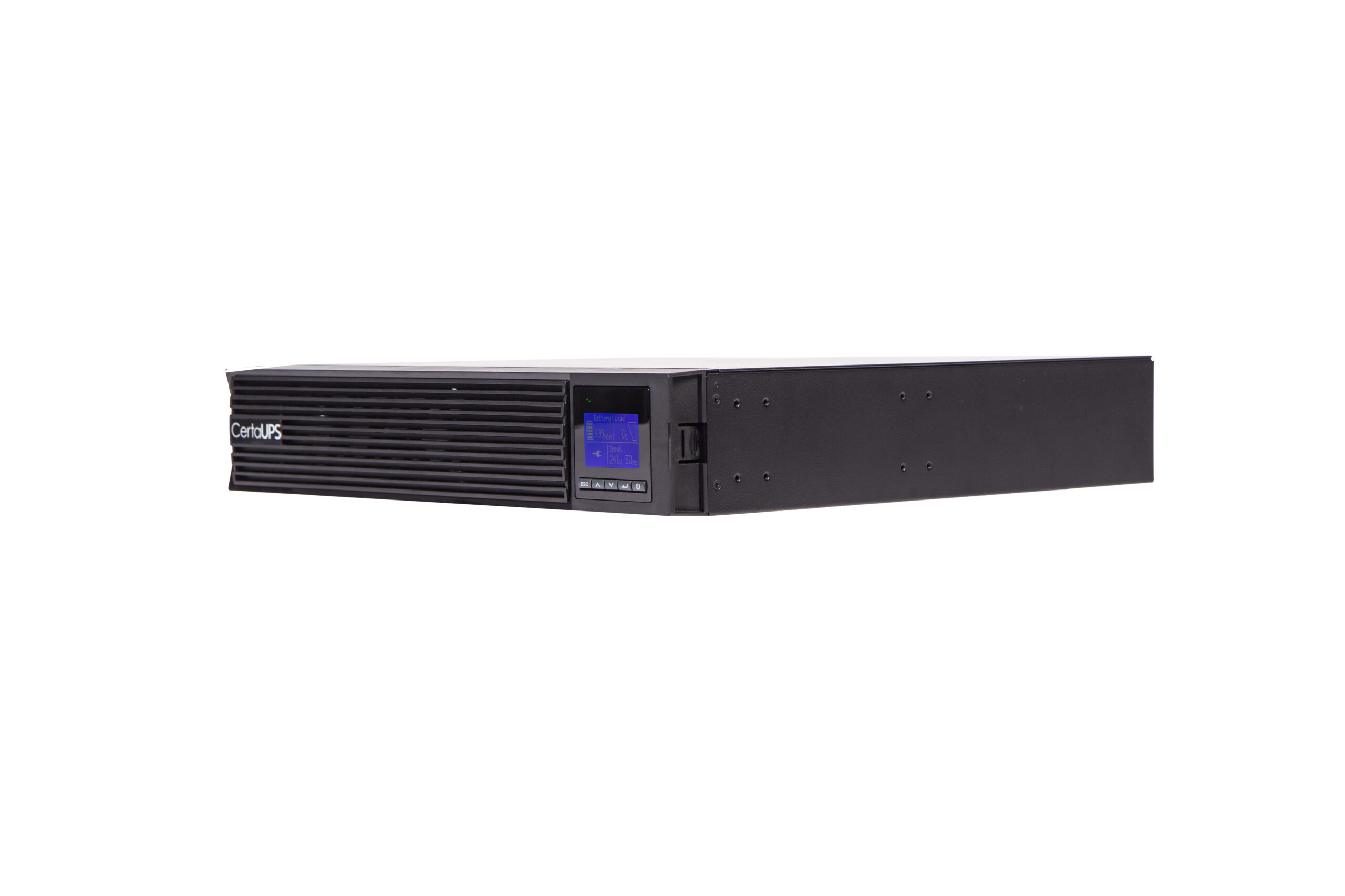

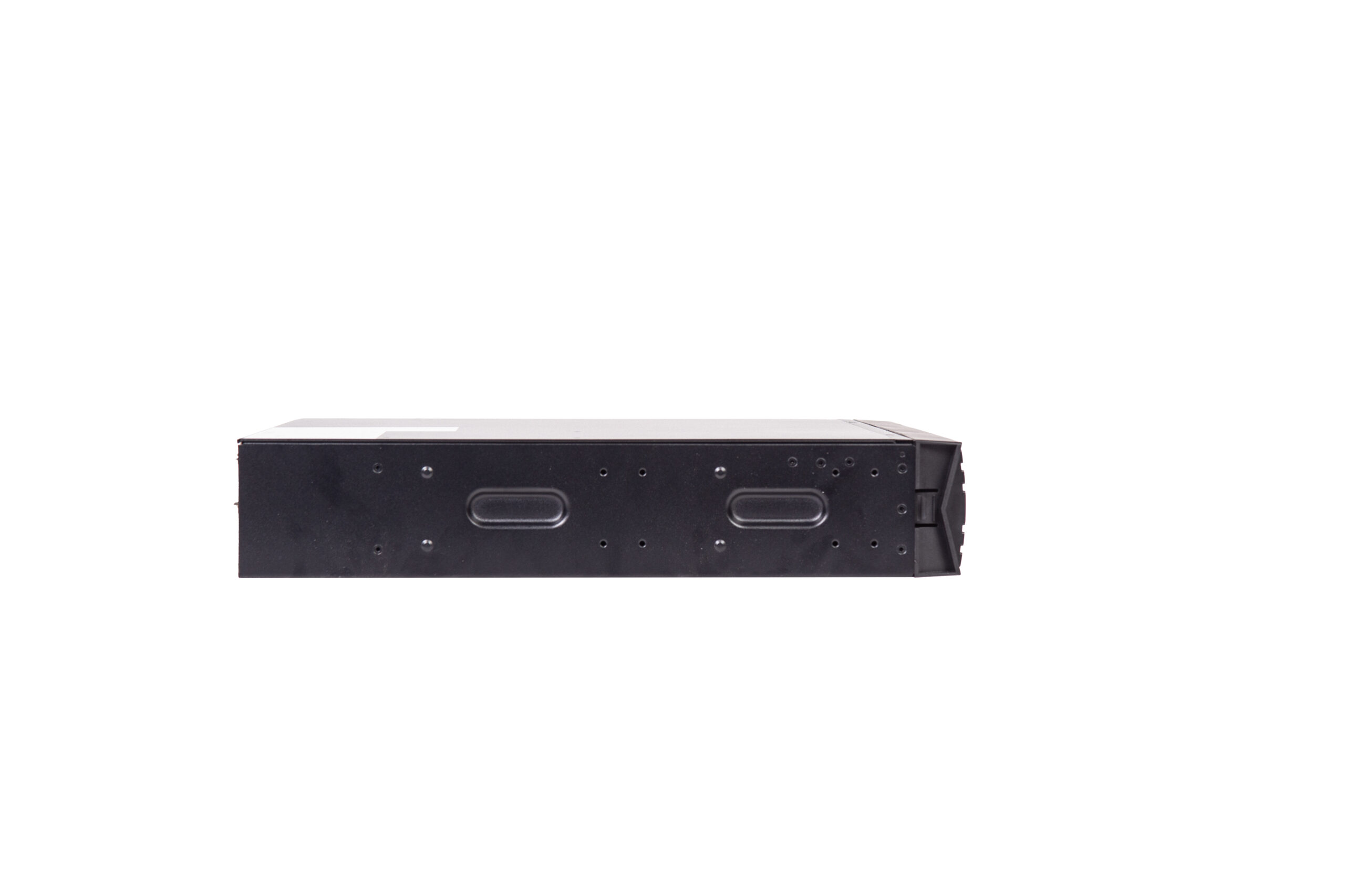

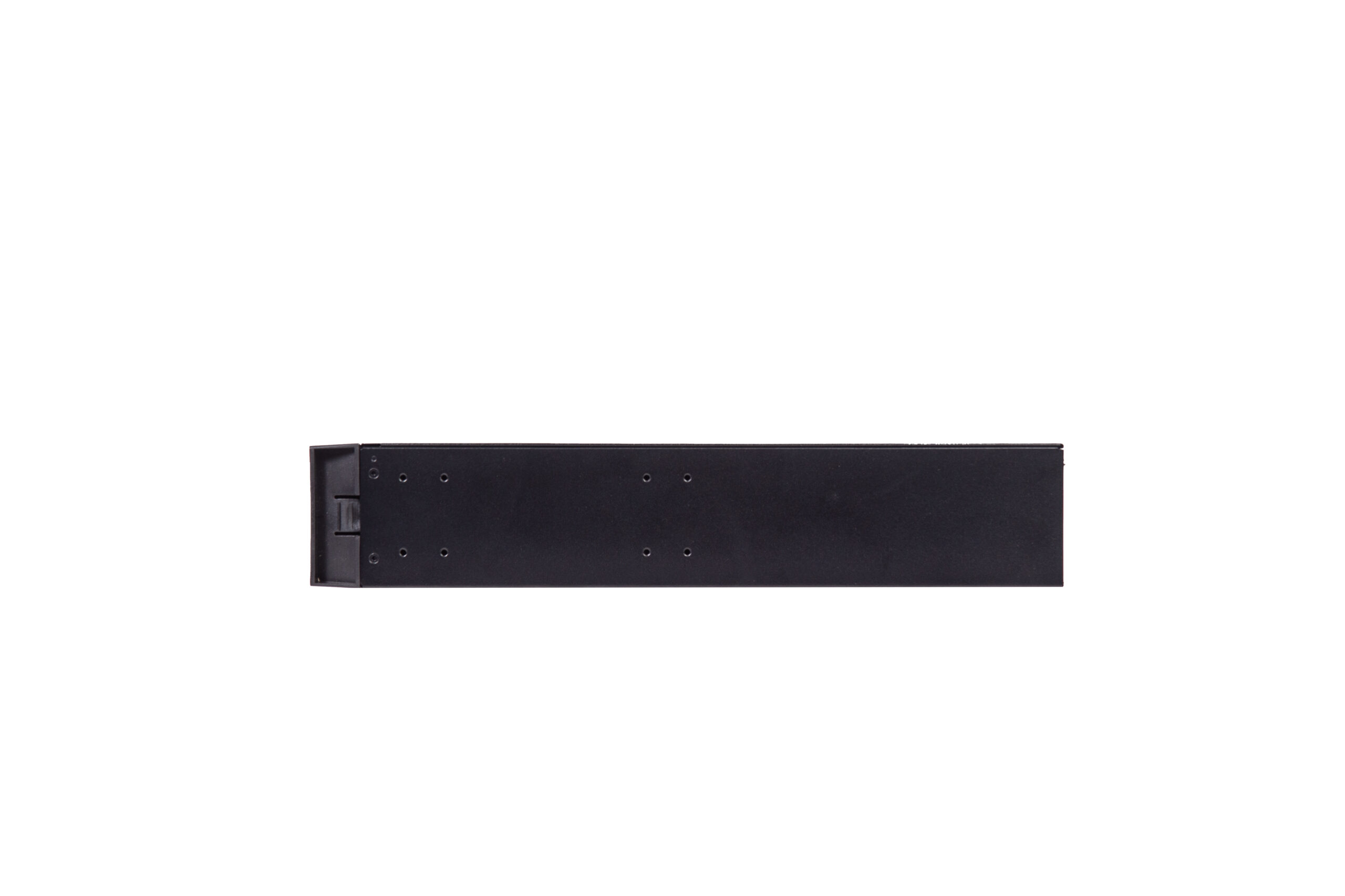

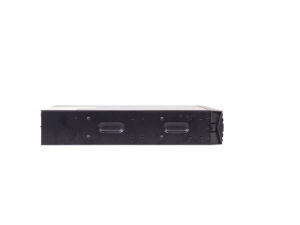

CertaUPS C450R – 1000VA, 2000VA and 3000V

The C450R series is available in three power ratings 1000VA, 2000VA and 3000VA.

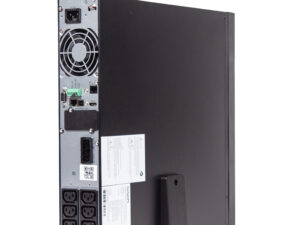

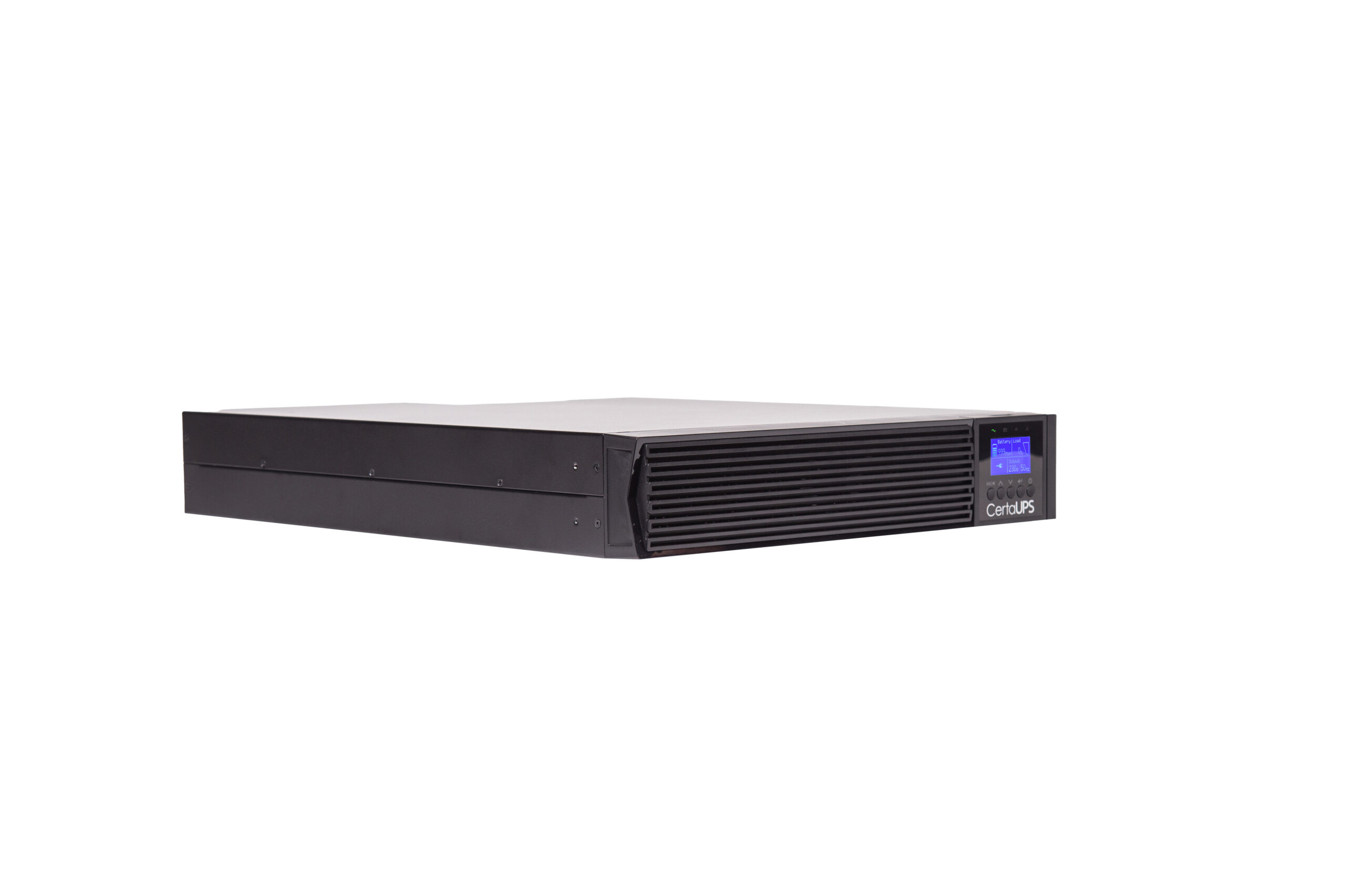

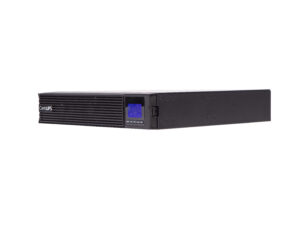

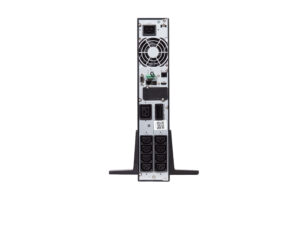

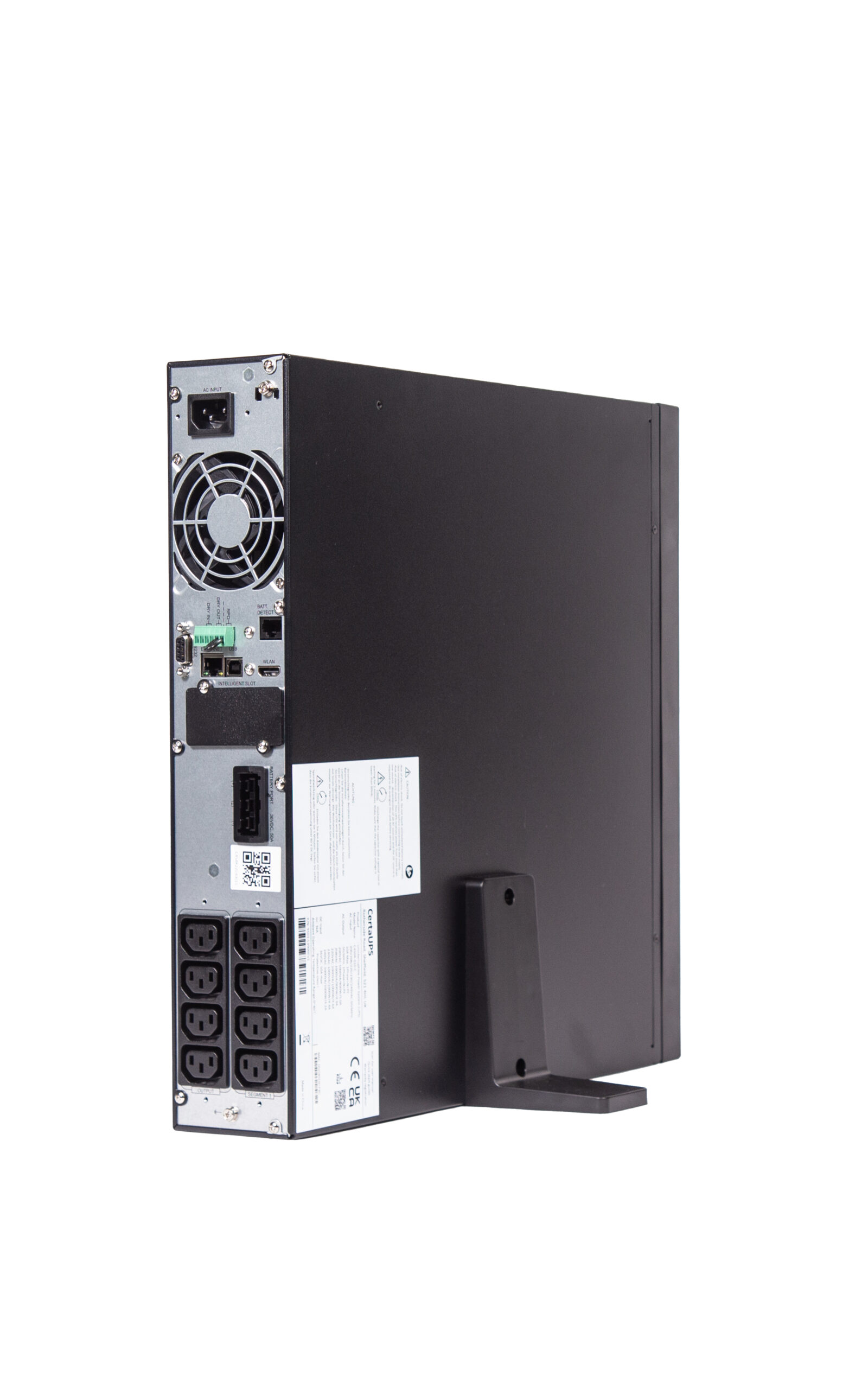

Rackmountable or Tower

Online double conversion uninterruptible power supply with unity power factor

User Manual

Technical Specification

£595.00

SKU: DRD-Certa-C450R Category:

Description

Overview
The CertaUPS C450R single phase range of online double conversion, unity power factor uninterruptible power supplies for tower or rack installation. Its compact and ergonomic rack mountable and floor standing design makes these UPS systems an ideal fit for many server cabinets, particularly in 2000VA and 3000VA configurations. The C450R comes complete with out of the box connectivity. An unlimited number of compatible CertaUPS UPS systems can be monitored any where in the world with the IoT monitoring software available for Android and iOS.

Key Features
Online double conversion topology
Unity Power Factor
expandable runtime with additional battery modules

Additional Features
Unity power factor
Online double conversion topology
High efficiency up to 96%
Pure sinewave output
Rackmount or Tower compatible
2U convertible design
Clear, user friendly display
Out of the box connectivity with IoT monitoring app
Serial, USB, Ethernet, WiFi, ModBus and Relay connectivity

Technical Specification

WARRANTY
3 Year Parts

RATING KVA
1 / 2 / 3

DIMENSIONS (WxDxH)
438W x 445D x 85.5H (2U) (C450R-010), 438W x 600D x 85.5H (2U) (C450R-020 and C450R-030)

INPUT PHASE
Single Phase

INPUT VOLTAGE
160-300V 100% load

INPUT VOLTAGE TOLERANCE RANGE
160-300V 100% load, 110-160V derating to 50% load linearly

INPUT FREQUENCY
50/60Hz

INPUT VOLTAGE TOLERANCE RANGE
±10%

OUTPUT OUTPUT PHASE
Single Phase

OUTPUT POWER FACTOR
1

OUTPUT WAVEFORM
Sine wave

OUTPUT VOLTAGE
200/208/220/230/240 VAC

OUTPUT FREQUENCY
50/60Hz (±10%)

BATTERY DC VOLTAGE
36VDC (C450R-010) / 72VDC (C450R-020 and 030)

BATTERY CHARGE CAPACITY
1.5A (All ‘B’ models), 8A (All ‘C’ models)

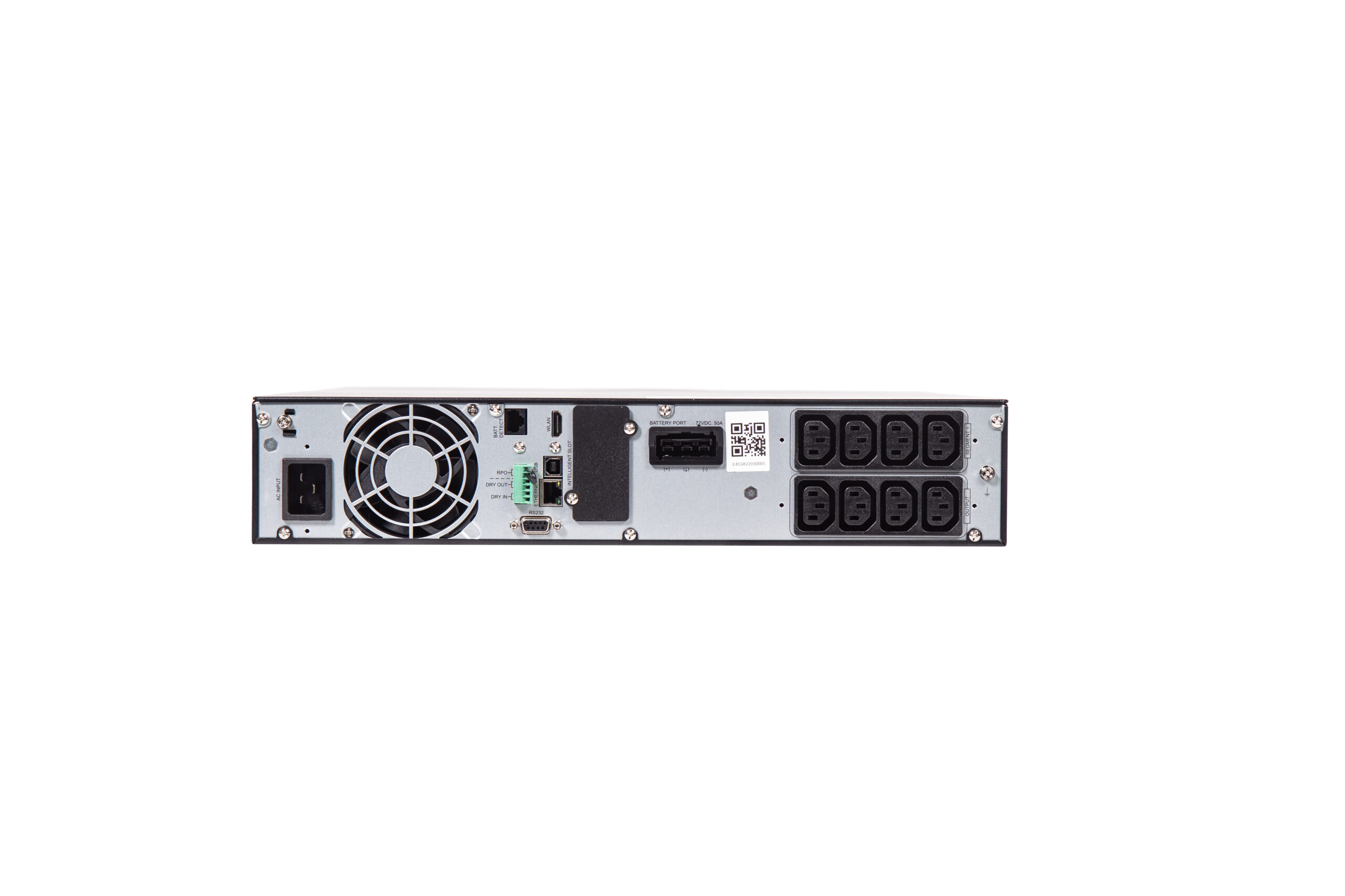

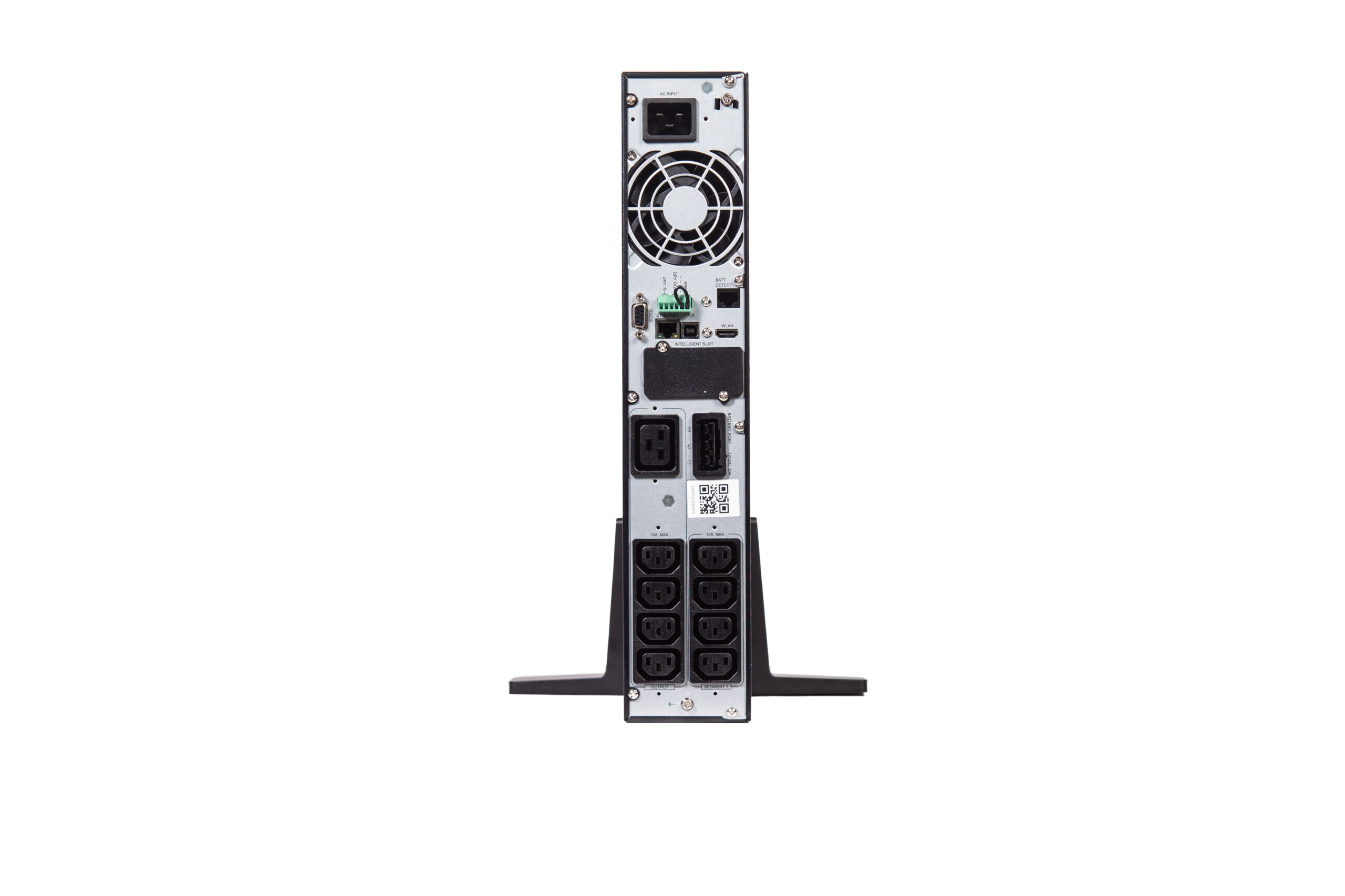

MECHANICAL AC OUTLETS
IEC C13*8 (1000VA and 2000VA models), IEC C13*8 and C19*1 (3000VA model)

OPERATING TEMPERATURE TOLERANCE
0 – 40°C

STORAGE TEMPERATURE TOLERANCE
0 – 40°C

RELATIVE HUMIDITY
<95% (non-condensing)

OPERATING ALTITUDE TOLERANCE
<1000m

COMMUNICATION
USB, RS232, Ethernet, WiFi, RS232

OPTIONAL COMMS
SNMP / dry contact relays / Modbus

PARALLEL
N/A

FUNCTIONS
EPO, Expandable Battery Modules, Rack/Tower Flexibility, Rotatable LCD
