Hover
In Desk Horizontal Unit with 4 power, and dual USB charger Desk cutout 132 x 335mm
Horizontal in-desk power unit with 4 individually fused UK sockets, USB-A and USB-C charging. Aluminium finish, ratchet clamps and brush cable entry.
Desk cut-out: 132 × 335mm. Check your starter lead before ordering.
Price range: £81.00 through £98.50 ex VAT Price range: £97.20 through £118.20 inc VAT
Description

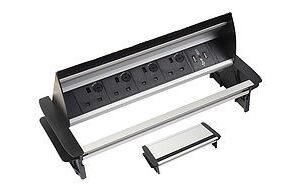

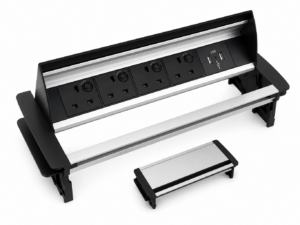

Horizontal In-Desk Power Unit — 4 UK Sockets + USB
Bring power into the desk surface with this horizontal power module. It combines 4 individually fused UK sockets, USB-A and USB-C charging in an aluminium housing with a brush cable entry.
Plan your setup
Designed for workstations and meeting tables where connections should sit within the worktop. This model requires a 132 × 335mm desk cut-out. Check the installation drawing, worktop thickness and clearance below the surface before cutting.
Key features
- 4 UK mains sockets, each individually fused at 5A.
- Integrated USB-A and USB-C charging ports.
- Aluminium finish with ratchet clamp fixings.
- Brush seal lets cables pass into the desk opening.
Download product datasheet (PDF)
Choose your setup
- Check the opening: allow a 132 × 335mm cut-out and confirm the installation drawing before modifying the desk.
- Plan the supply: select or order a compatible mains starter lead of the required length. Check the product options and your existing installation.
- Check access: allow space beneath the unit for connectors and cable routing.
Technical specifications
| Product reference | PD DESK 4 USB |
|---|---|
| UK mains sockets | 4 × UK, individually fused at 5A |
| USB charging | 1 × USB-A and 1 × USB-C |
| Desk cut-out | 132 × 335mm |
| Mounting | In-desk; ratchet clamps |
| Finish | Aluminium |
| Cable entry | Brush seal |
| Power connection | 3-pole connector for a compatible starter lead |
Frequently asked questions
What size hole does this model need?
The specified desk cut-out is 132 × 335mm. Confirm the installation drawing and available clearance before cutting your worktop.
Does it connect straight to a wall socket?
A compatible mains starter lead is required between the unit’s 3-pole connection and the supply. Select or order the length needed for your installation.
Need help choosing?
Call 0800 852 1010 or contact Data Room Direct for help with product selection, project quantities and delivery times.
Additional information
| Starter lead | 1m (+£5.00), 2m (+£5.50), 3m (+£6.30), 4m (+£7.20), 5m (+£8.30), 6m (+£9.50), 7m (+£12.50), 8m (+£13.50), 10m (+£17.50), No starter (UK mains) lead required |
|---|
