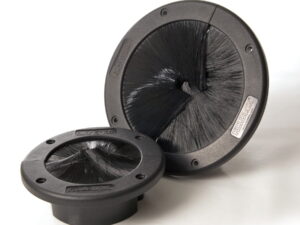

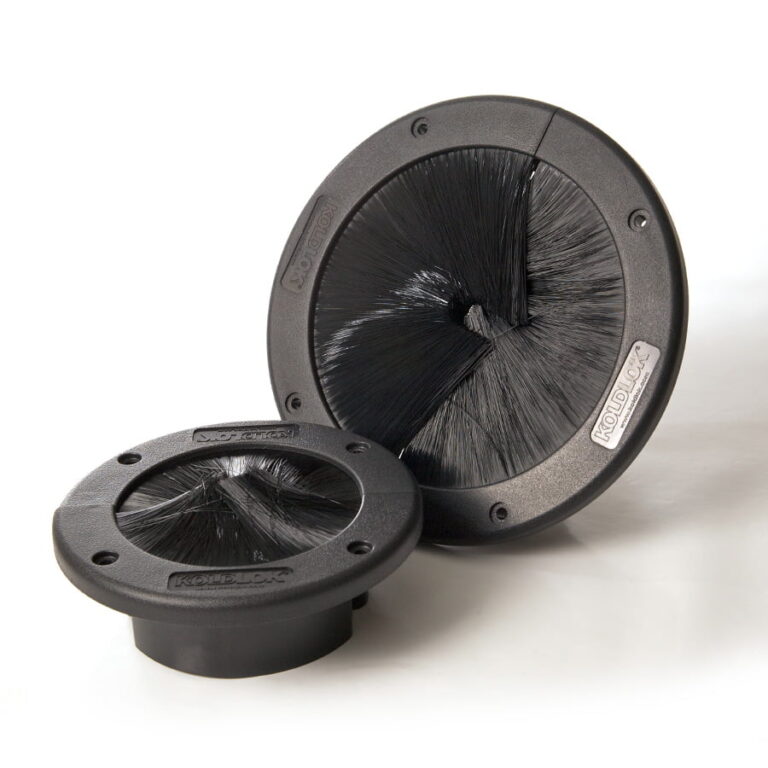

KoldLok Round Raised Floor Grommet
Reduce bypass airflow through raised-floor cable openings with the KoldLok Round Raised Floor Grommet. Check the opening and usable cable dimensions to select the correct fit.
Price range: £31.00 through £35.00 ex VAT Price range: £37.20 through £42.00 inc VAT
Description
KoldLok Round Raised Floor Grommet
Reduce bypass airflow through raised-floor cable openings with the KoldLok Round Raised Floor Grommet. Check the opening and usable cable dimensions to select the correct fit.
Plan your setup
Check the floor opening, tile position and cable bundle before installation. Overall grommet size, the opening it seals and usable cable space are different measurements. Use the fitting instructions for the exact model.
Key features
- Round format with split construction.
- Brush sealing around cable openings.
- Check the listed dimensions before ordering.
Choose your setup
- Measure the opening or gap and check the intended mounting position.
- Choose the required size or accessory option.
- Follow the product fitting instructions.
Technical specifications
| Product reference | DRD-6-40001 |
|---|---|
| 4-inch version cut-out | 102mm diameter |
| 4-inch overall size | 143mm diameter × 48mm high |
| 6-inch version cut-out | 152mm diameter |
| 6-inch overall size | 192mm diameter × 48mm high |
| Height above floor | 10mm |
| Size | 4″ (102mm); 6″ (152mm) |
Frequently asked questions
Will sealing this opening guarantee a cooling saving?
It helps manage unwanted airflow, but the result depends on other openings, equipment layout and cooling settings. No fixed saving is promised.
Which dimension should I check?
Compare the opening or gap with the relevant specification. Do not use overall product dimensions as a substitute for the required cut-out or sealing dimensions.
Need help choosing?
Call 0800 852 1010 or contact Data Room Direct for help with product selection, project quantities and delivery times.
Additional information
| Size | 4" (102mm), 6" (152mm) |
|---|
