Horizontal 12-Way IEC PDU – 10× C13 + 2× C19 Dual Branch

Description

12-Way Dual-Branch IEC Rack PDU

High-density IEC rack power with two independently protected branch circuits.

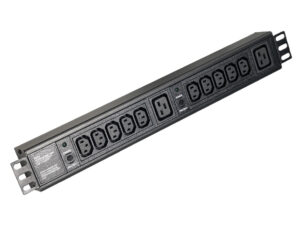

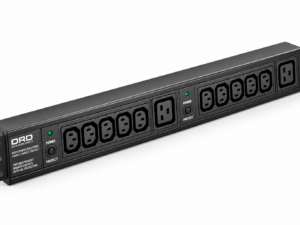

This horizontal PDU combines 10 × IEC C13 and 2 × IEC C19 outlets in a 1.5U rack-mounted unit, providing connections for both standard and higher-current IEC-powered equipment.

The outlets are divided across two branch circuits. Each branch provides 5 × C13 + 1 × C19 outlet and is protected by its own 16A thermal trip.

Key Features

✓ 10 × IEC C13 outlets
✓ 2 × IEC C19 outlets
✓ Two independent 5+1 branch circuits
✓ 16A thermal protection per branch
✓ Horizontal 19-inch rack mounting
✓ 1.5U rack height
✓ Neon power-present indication
✓ 3-metre mains lead supplied as standard
✓ 16A and 32A input options

Technical Specifications

Dual-Branch Circuit Protection

Dividing the outlets between two separately protected branch circuits provides more controlled power distribution than a single unprotected outlet bank.

Each circuit supplies 5 × IEC C13 and 1 × IEC C19 outlet and has its own 16A thermal trip. This allows connected equipment to be distributed across the two branches while providing dedicated overload protection for each circuit.

Mixed C13 & C19 Rack Power

The combination of C13 and C19 outlets makes this PDU suitable for racks containing a mixture of servers, switches, storage systems, UPS equipment and other IT hardware with different IEC power requirements.

Choosing the Input Supply

Select the 16A or 32A input configuration appropriate for your installation. The connected load on each branch must remain within its protected circuit rating.
