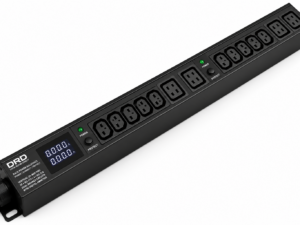

Vertical 24-Way IEC PDU – 20× C13 + 4× C19 Dual Branch Ammeter

Description

Vertical 24-Way Dual-Branch IEC Rack PDU

High-density mixed IEC rack power with dual branch protection and digital current monitoring.

This vertical PDU combines 20 × IEC C13 and 4 × IEC C19 outlets, providing power distribution for a mixture of standard and higher-current rack equipment.

The 24 outlets are divided across two independent branch circuits. Each branch provides 10 × C13 and 2 × C19 outlets with dedicated 16A protection.

Key Features

✓ 24 total IEC outlets
✓ 20 × IEC C13 outlets
✓ 4 × IEC C19 outlets
✓ Two independent branch circuits
✓ 10 × C13 + 2 × C19 outlets per branch
✓ 16A protection per branch
✓ Digital ammeter for current monitoring
✓ Neon power indication
✓ Vertical 0U rack mounting
✓ 3-metre mains lead supplied as standard
✓ 16A or 32A input plug options

Technical Specifications

Dual-Branch Power Distribution

The outlets are divided evenly between two separately protected circuits. Each branch supplies 10 × IEC C13 and 2 × IEC C19 outlets, allowing equipment loads to be balanced across the two circuits.

Each branch must remain within its protected rating and the total connected load must remain within the rating of the complete PDU and supply connection.

Digital Current Monitoring

The integrated digital ammeter provides a clear indication of current draw, helping operators monitor rack power usage and manage connected loads.

Mixed C13 & C19 Connectivity

The combination of IEC C13 and C19 outlets makes this PDU suitable for racks containing servers, storage systems, switches, UPS equipment and other IT hardware with different IEC power requirements.

Vertical 0U Installation

The vertical format provides high-density power distribution without consuming conventional rack-unit space, making it ideal for large server cabinets and data-centre installations.
