Description
Horizontal PDUS which take up 2 rack units, to allow more sockets per unit.
Available as a 10-way UK unit and a 24-way C13 unit, in both 16A and 32A
STANDARD PRODUCTS
Part Code Description
H2U13A/10 2U horizontal 10-way UK PDU, with 3m lead to UK plug
H2U13A/10/32A 2U horizontal 10-way UK PDU, with 3m lead to 32A commando

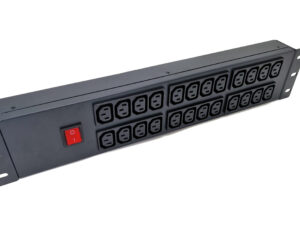

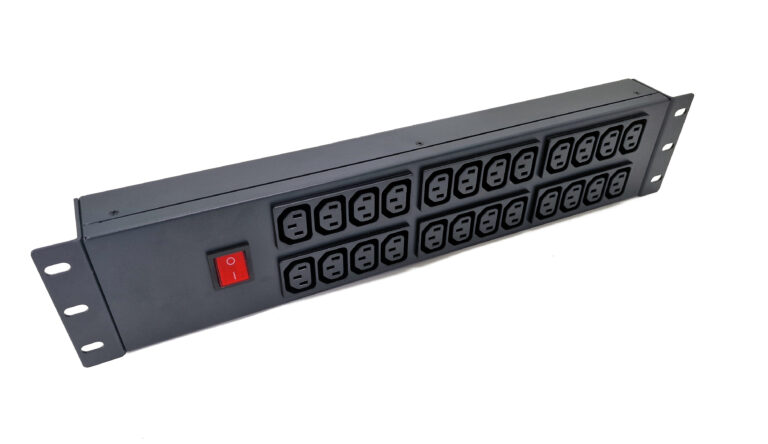

H2UIEC/24 2U horizontal 24-way C13 PDU, with 3m lead to C20 plug
H2UIEC/24/32A 2U horizontal 24-way C13 PDU, with 3m lead to 32A commando
TECHNICAL SPECIFICATION
In the box 1x PDU, 1x set of cage nuts
Construction Aluminium extrusion, PVC sockets and fascias, 2mm steel endcaps
Max voltage 250V
Mains lead length 3m
Mains lead spec 2.5m² HO5VV-f (16A) / 6.0mm² H05VV-f (32A)
Switch Double pole with neon indicator
Compliances RoHS; WEEE; CE; UKCA
