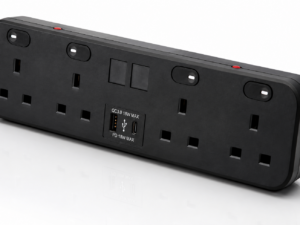

ICON.FOUR (18W) (Black or White)
Available in black or white, the Icon Desktop unit has a distinctive modern design suited to any new office.
-
-
Integral 2 x USB C (18W)
-
4 x UK sockets
-
Individual power switches
-
Resettable thermal fuses
-
Keystone cutouts- can be populated with data/multimedia/blank
-
£63.00
Description
The ICON 2-way and 4-way have individually switched sockets with resettable thermal fuses to BS6396:2022, a choice of the standard PD 18W A&C charger or a powerful PD 65W dual USB C charger. Available loaded with Data, USB and HDMI couplers.
USB Performance
PD 18W USB A: QC3.0, DC 5V3A, 9V2A, 12V1.5A. USB-C PD, 2V/5A, 5V/3A & 9V/2A
PD 65W USB C1 5V3A, 9V3A, 12V3A, 15V3A, 25A Total 65W max
PD 65W C2 5V32, 9V2.2A, 12V1A, Total 20W max
Multi use PD 65W performance USB C1 45W max, USB C2 20W max
Dimentions – 265mm long, 74mm high & 74mm wide (when positioned), each unit has a black or white 500mm lead to male 3-pole connector
The ICON series is an end-to-end desk power solution, conforming to BS6396:2022 it utilises thermal fuses instead of traditional 20mmceramic fuses, thus lowing the cost of ownership by avoiding engineers call outs. There are 3 ICON desktop sizes, a 1-way, 2-way, and a 4-way all of which have USB smart chargers, the standard version has PD 18W and the enhanced version offers a PD 65W output to cater for new higher powered laptops as well as mobile phones, ICON desktops are available in all black or white with desk clamps.
The 2-way and 4-way versions are individually switched and have two media slots where data or AV can be added, Cat 6, Cat 6A, HDMI, Fibre, USB A or USB C are popular amongst the various combinations which can be added on site or fitted to order.
