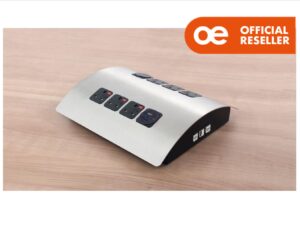

Pagoda

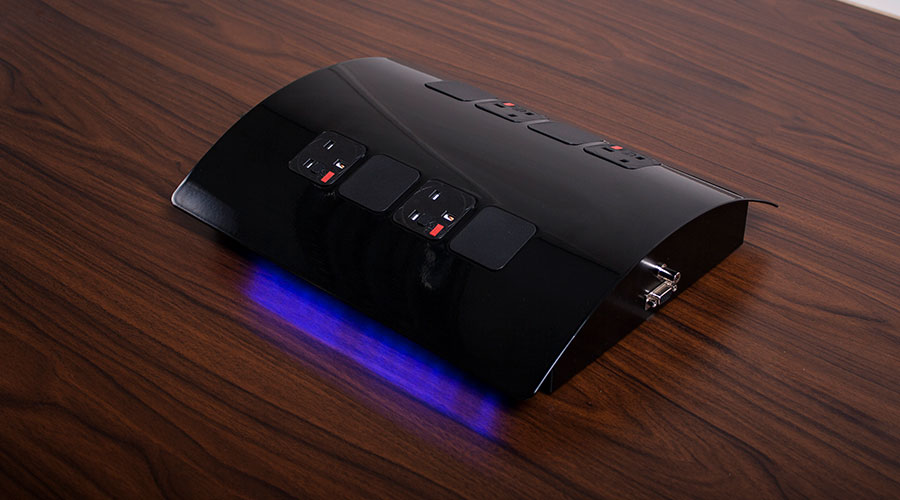

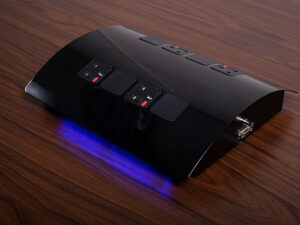

Pagoda-black-4xUKF

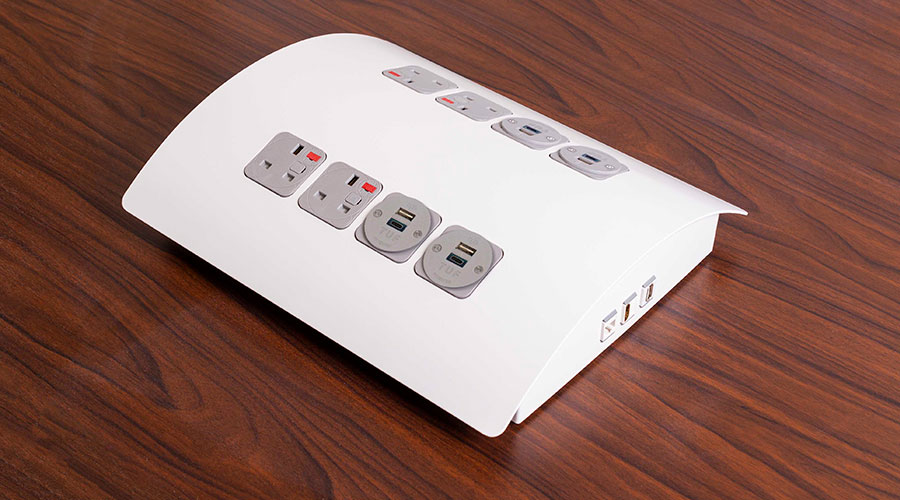

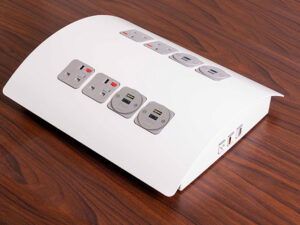

Pagoda-white-4xUKF-TUF-AC-004
Full Screen

Pagoda

Standard spec-

Stainless steel top

Black fabricated steel chassis with rubber feet

Black socket fascias

Other configurations and  are available – please contact us for a quote & Lead time.

Optional LED light bars are available in red, white, green or blue.

Datasheet
Fitting Instructions

£790.00

SKU: DRD-OE-Pagoda Categories: ,

Description

Dimensions:

Construction:

Power: the UK, European and International power socket options, and/or OE TUFA+C25W: Twin USB Fast charger  Data: Cat5e, Cat6, or Cat6a data connection options, with colour coded port identification. USB: USB2.0 and USB 3.0 for PC connection. For USB charging specify an OE TUFA+C25W: Twin USB Fast charger AV: VGA, HDMI, DVI-D and Display Port AV connection options Earthed steel casing with two self-enclosed fire-retardant ABS Powerunits.

Colours:

Main body – black Curved top – brushed stainless steel Socket fascia – grey or black,  (Nema 5-15R –black only) Cable –white (not 14AWG) or black.

Earth Bonding:

A rewireable external earth terminal allows the removal/change of earth bonding leads without dismantling the unit.

Socket Fusing:

To enable compliance to BS6396 UK sockets are fitted with 5 x 20mm anti-surge ceramic fuses, with colour-coded fuse clips to denote the rating (3.15A/5A)

Power cord options:

PAGODA may be hardwired to: – mains AC plug – male Wieland GST18 connector for “soft wiring” e.g. connection to an under desk module or to a mains supply socket via a starter cable

Installation:

PAGODA fits to a standard 80mm grommet hole in tabletops up to 35mm deep, using the supplied clamp 80 kit. Silicone rubber feet prevent damage to table surfaces.

Quality and Testing:

All PAGODA units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch. • Visual: Configuration and appearance. • Power sockets: Continuity, polarity, insulation & earth • USB charger: Output voltage and resistance • Data & AV: All sockets continuity tested with batch performance testing. “We test every pin on every connection in every socket”

CE Marking:

All units built with UK and European socket types are CE marked by OE Electrics as complying with: – Electromagnetic Compatibility Directive 2014/30/EU – Low Voltage Equipment Directive 2014/35/EU – RoHS2 Directive 2011/65/EU

Certifications:

AC Power socket:   The fitted socket will be certified to the appropriate national/international standard eg: BS1363/5733, IEC60884-1, UL498, CCC, AS/NZS3112 OE TUF 25W:   Independently certified to IEC/UL 62368-1. Cable, connectors & mains plug:   Independently certified to the appropriate national/international standard.

PAGODA is ETL certified/listed for use in the USA and Canada. Details are available here: Intertek. PAGODA is denoted by code GO. Please contact us for configurations certified.

LED lighting options:

Optional red, blue or green 12V LED strips with internal LED  driver.
