PLUTO satisfies the growing need for easily accessible AC power sockets and USB charging in informal areas, with a unique combination of style and function.

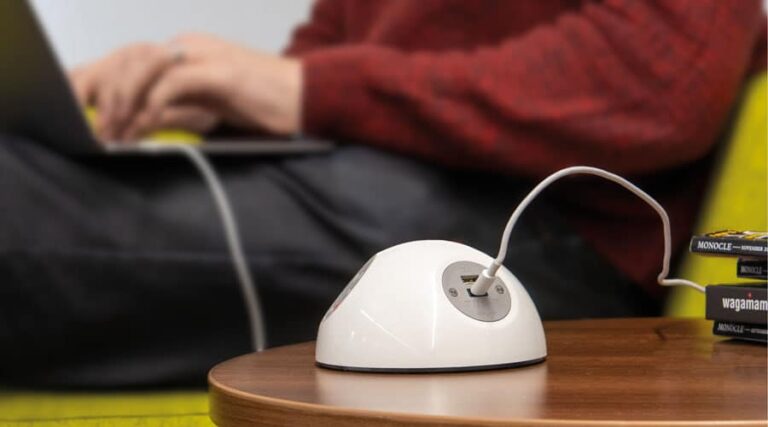

Perfectly suited to breakout areas, smaller meeting rooms and coffee tables, in offices, hotels, and other public spaces – PLUTO makes sharing power a pleasure.

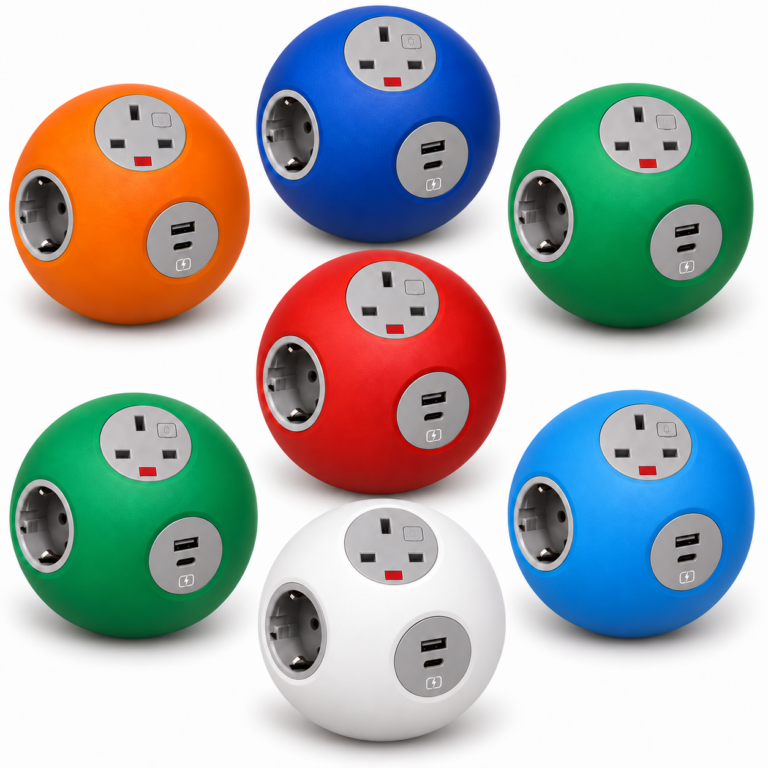

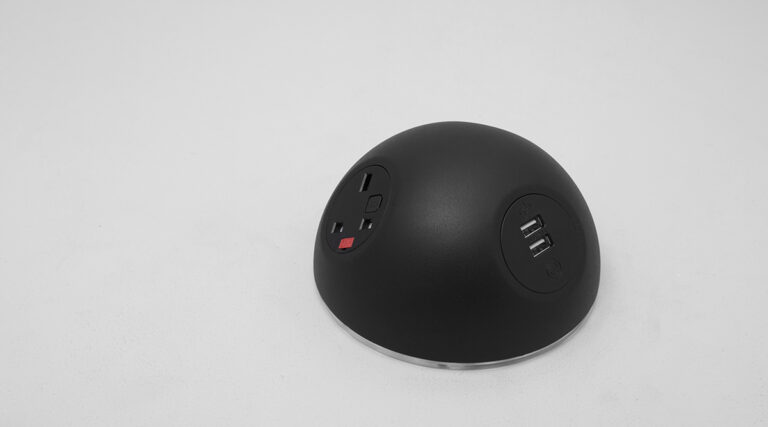

Infinitely customisable in appearance PLUTO is available from stock in white, black and 8 vibrant satin colours, with other paint and immersion graphics finishes to special order. As well as the perfect colour or pattern to match any interior design scheme, PLUTO can be screen printed with your own or your customer’s brand name or logo. (Please ask for quote for any other colours or with logo)

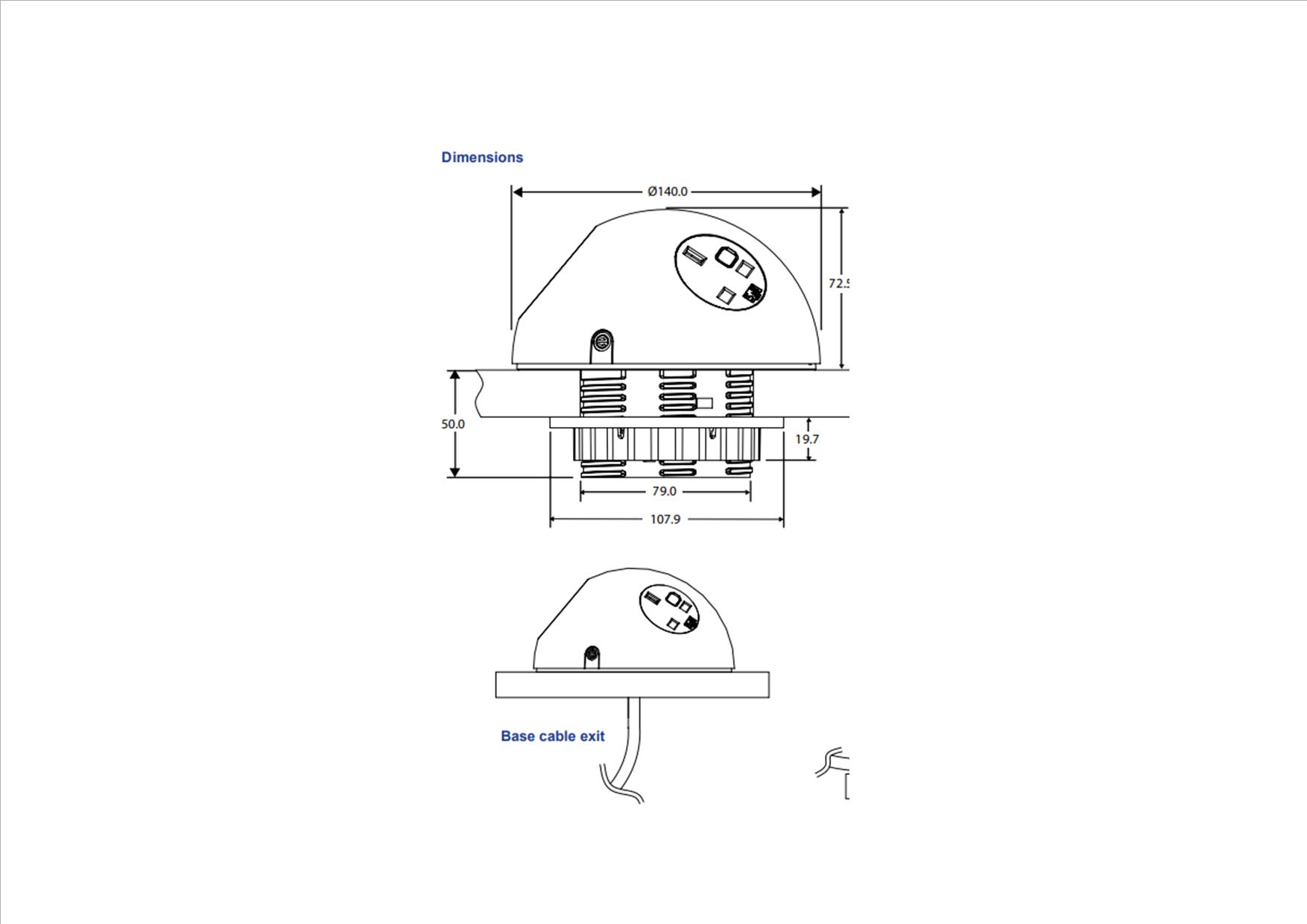

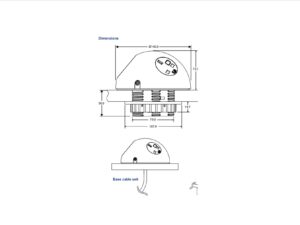

PLUTO is supplied with securely clamped to a standard 80mm desk grommet hole, screwed to any suitable surface or a side entry power cord (2 metre) and rubber feet for free standing use,which is located at- Pluto- On Desk
High strength 5VA fire retardant “Lexan 943” polycarbonate enclosure. OE “42mm” modular polycarbonate power socket fascia’s

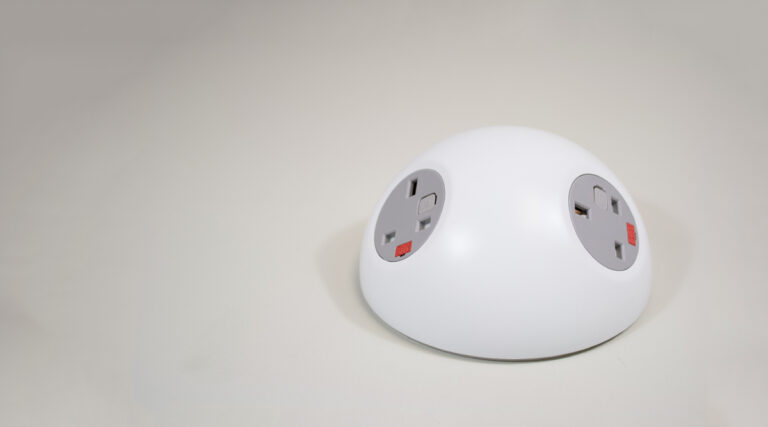

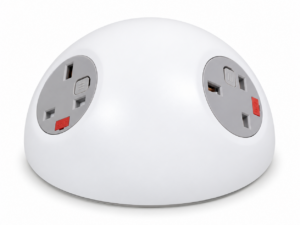

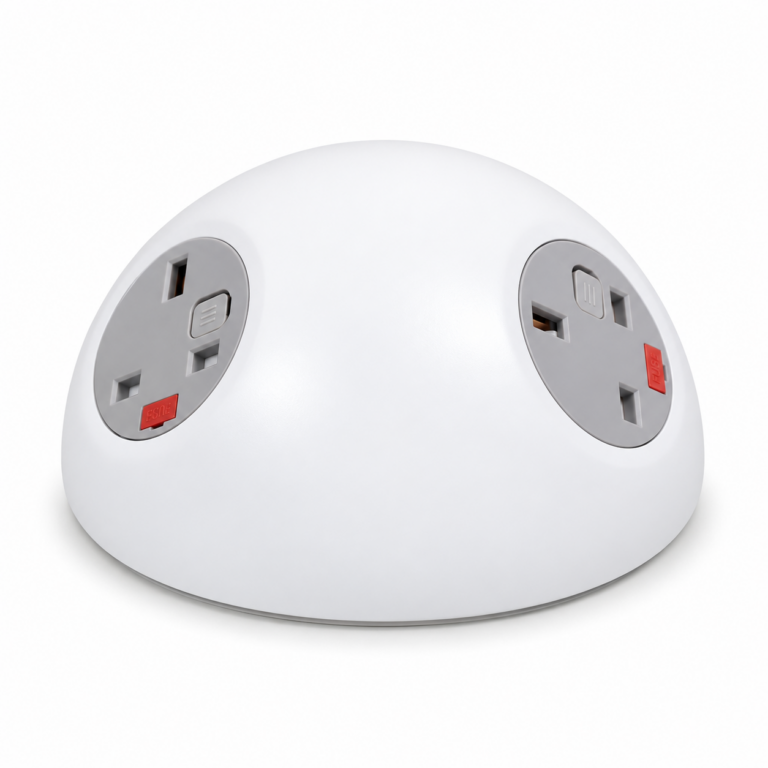

PLUTO is supplied as standard in a “polished” white RAL 9003 moulded finish with grey or black sockets. Pluto can also be ordered in a wide range of painted or immersion transfer printed finishes and with Pad printed logo’s.
A discreet ‘easy-connect’ 6.3mm spade type earth terminal is fitted as standard in base of unit for the attachment of an external earth bonding lead.
To enable compliance to BS6396, UK fused sockets are fitted with 5 x 20mm anti-surge ceramic fuses, with colour-coded fuse clips to denote the rating (3.15A/5A).
Power cord options:
PLUTO may be hardwired to: – mains AC plug, – Male Wieland GST18 connector for “soft wiring” e.g. connection to an under desk power modules or direct to a floor socket via a starter cable.
Base power cord entry PLUTOs are supplied as standard with the “clamp 80” kit for secure mounting to an 80mm grommet hole. For screw fixing Pluto can be ordered with just the bayonet mounting ring. Side power cord entry PLUTOs are fitted with silicone rubber feet. Special brackets can be supplied to order for fitting the side power cord entry PLUTO to tool/equipment rails
Quality and Testing:
All PLUTO units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch:
- Visual: Configuration and appearance.
- Power sockets: Continuity, polarity, insulation & earth
- USB charger: Output voltage and resistance
- Data & AV: All sockets continuity tested with batch performance testing.
“We test every pin on every connection in every socket”
All units built with UK and European socket types are CE marked by OE Electrics as complying with:
- Electromagnetic Compatibility Directive 2014/30/EU
- Low Voltage Equipment Directive 2014/35/EU
- RoHS2 Directive 2011/65/EU
AC power socket: The fitted sockets will be certified to the appropriate national/international standard eg: BS1363/5733, IEC60884-1, CCC, AS/NZS3112. OE TUF 25W: Independently certified to IEC/UL 62368-1. Cable, connectors & mains plug: Independently certified to the appropriate national/international standard.
