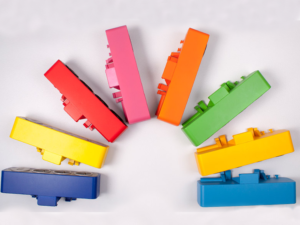

Product Shot

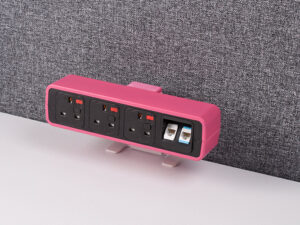

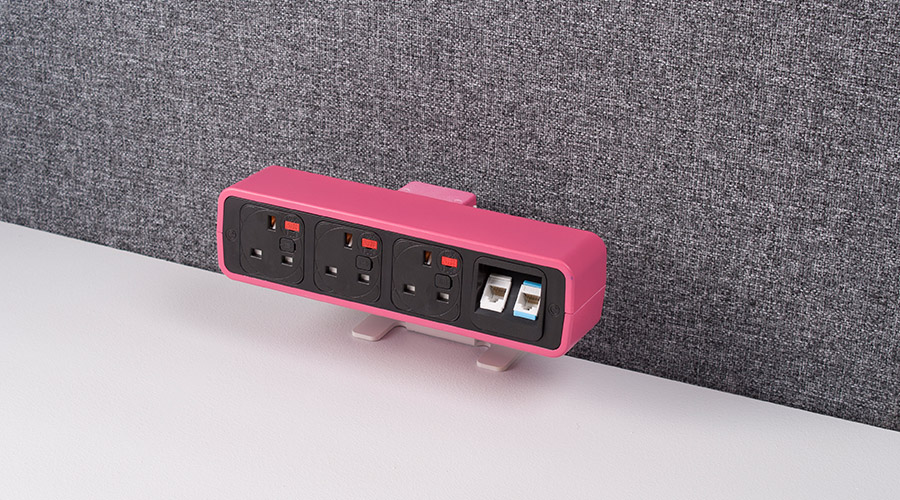

pink-blk-uk

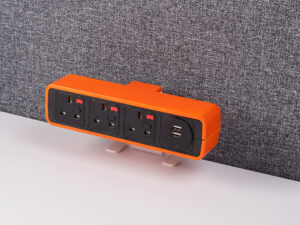

orange-blk-uk

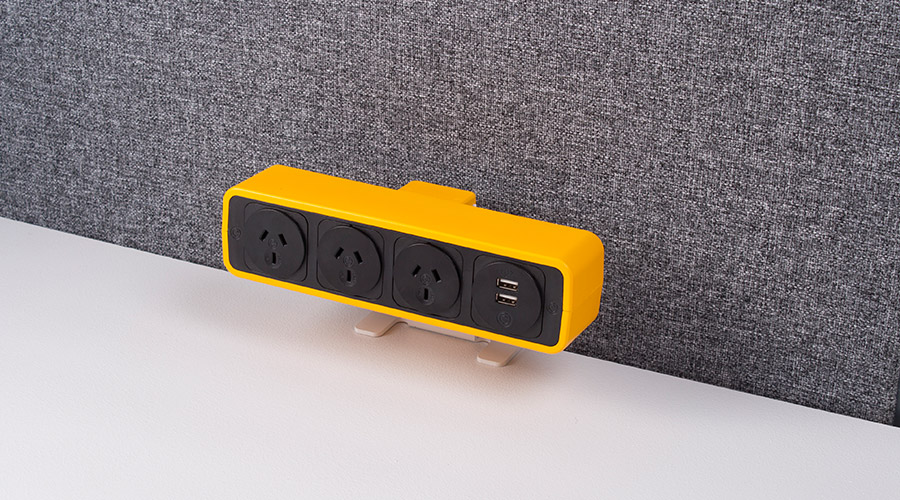

light-orange-blk-aus
Full Screen

Pulse-8

Choice of 8 colours
Optional TUFA+C 25W

Made to order – Please note delivery will be 7-10 working days and larger orders will take longer.

Datasheet

Fitting Instructions

£109.00

SKU: DRD-Pluse/8 Categories: ,

Description

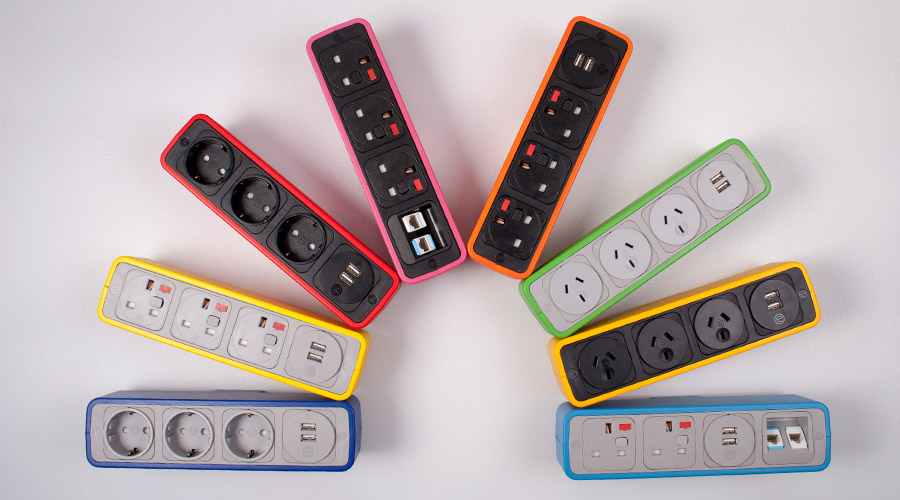

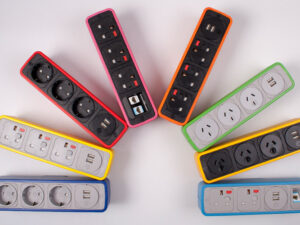

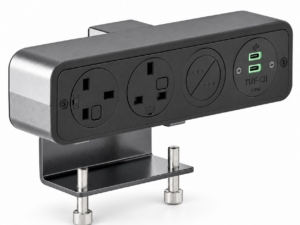

Add a splash of colour to your world with the PULSE-8 range from OE Electrics.  Based on our top selling PULSE unit, PULSE-8 is now available to order in a choice of 8 lively colours with a choice of black or grey sockets.

PULSE-8 can be specified with a wide range of OE Electrics modular power data and AV sockets including our class-leading OE TUFA+C25W:Twin USB Fast charger. In addition, multiple bracket options allow PULSE-8 to be fitted to desktops, screens, tool/equipment rails and many other locations

Construction:

PULSE-8 is moulded in fire retardant ABS and then painted in abrasion resistant “two pack” acrylic. Internal segregation is provided between Power and Data/AV components.

Colours:

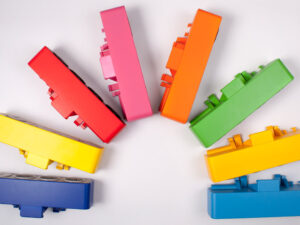

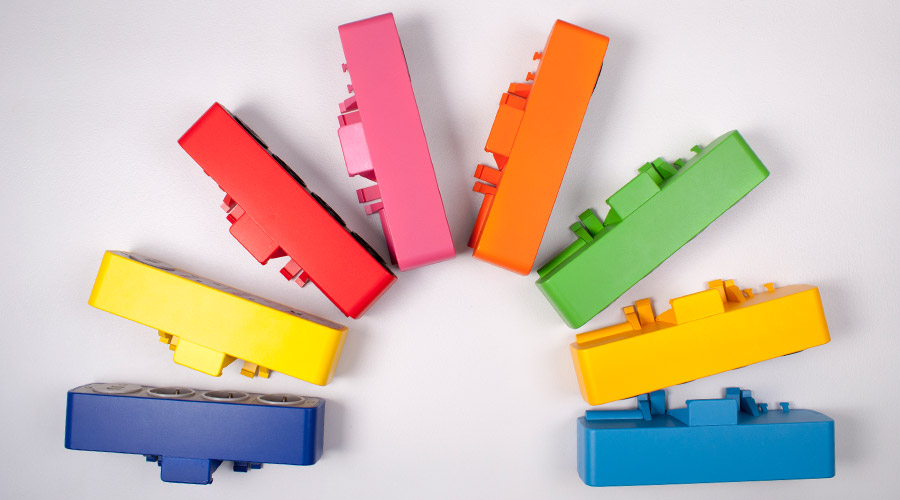

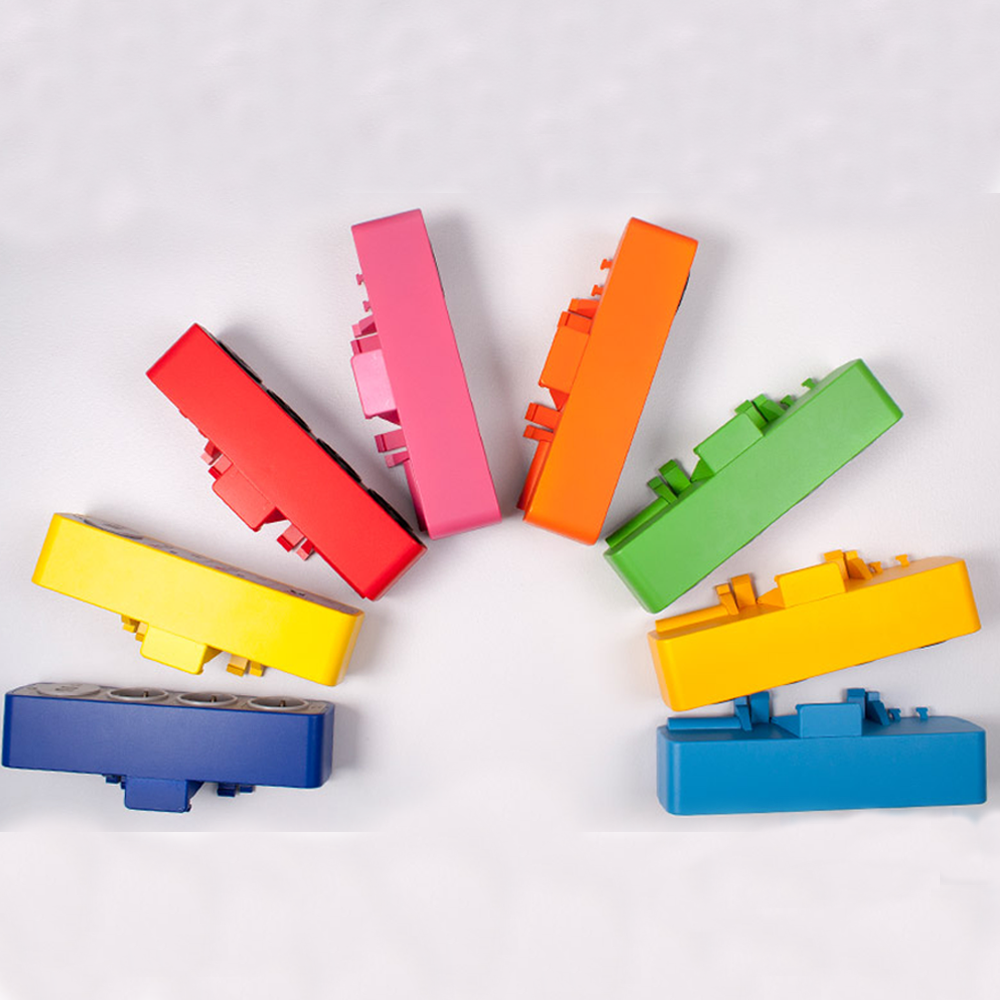

Main body – dark blue, light blue, orange, light orange, yellow, red, pink or light green Socket frame – black or grey Socket fascia – black or grey (Nema 5-15R – black only) Cable – white (not 14AWG) or black

Socket Fusing:

To facilitate compliance with BS6396  UK sockets are fitted with 5 x 20mm anti-surge ceramic fuses, with colour-coded fuse clips to denote the rating (3.15A/5A)

Earth Bonding:

UK versions are supplied with a 250mm earth lead with 5mm  ring terminal.

Power cord options:

PULSE-8 may be  hardwired to: – mains AC plug, – Male Wieland GST18 connector for “soft wiring” e.g. connection to an under-desk power modules or direct to a floor socket via a starter cable.

Installation:

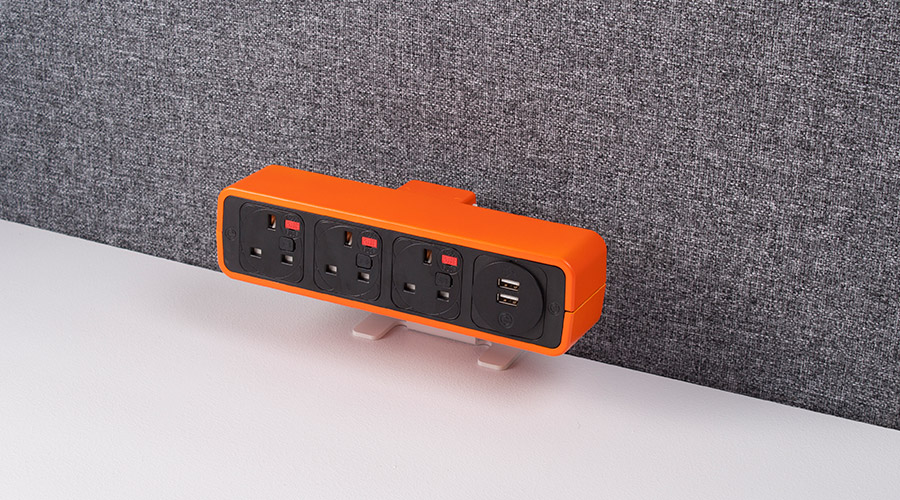

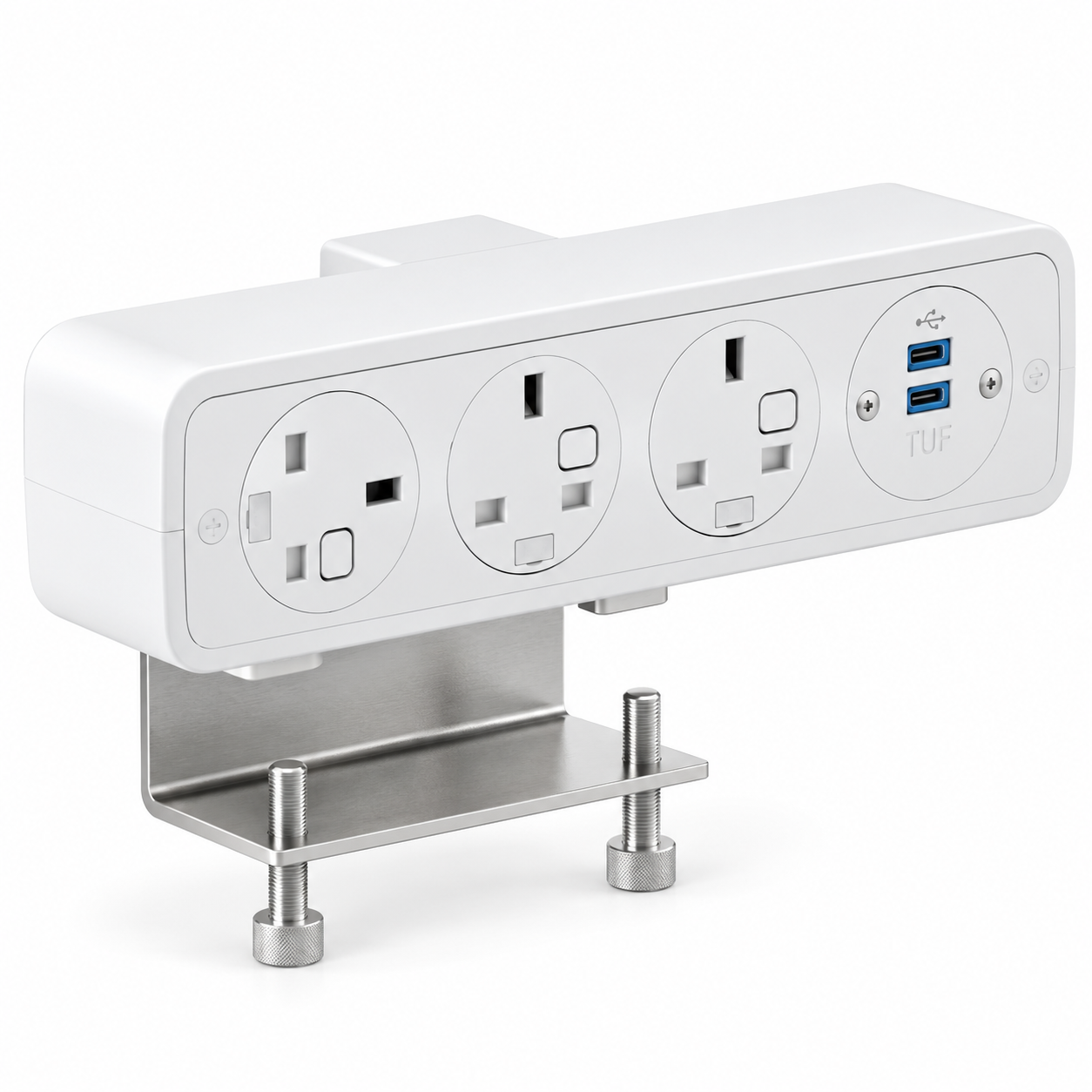

PULSE-8 is supplied as standard with a white, powder coated steel desk edge bracket with screw clamps for 15 – 35mm desk tops and slot for attaching a laptop security cable.  Other fixing options include an “extended” clamp bracket for desk tops up to 55mm thick, plus tool/equipment rail brackets, please enquire

Quality and Testing:

All PULSE-8 units are manufactured using ISO9001 quality controlled components and practices and are  100% tested before dispatch:

  • Visual: Configuration and appearance.
  • Power sockets: Continuity, polarity, insulation & earth
  • USB charger: Output voltage and resistance
  • Data & AV: Continuity (optional data performance certification)

“We test every pin on every connection in every socket”

CE Marking:

All units built with UK and European socket types are CE marked by OE Electrics as complying with:

  • Electromagnetic Compatibility Directive 2014/30/EU
  • Low Voltage Equipment Directive 2014/35/EU
  • RoHS2 Directive 2011/65/EU

Certifications:

AC power socket: The fitted sockets will be certified to the appropriate national/international standard eg: BS1363/5733, IEC60884-1, CCC, AS/NZS3112. OE TUF5A: Independently certified to IEC/UL 62368-1. Cable, connectors & mains plug: Independently certified to the appropriate national/international standard.

PULSE is ETL certified/listed for use in the USA and Canada. Details are available here: Intertek. PULSE is denoted by code PL. Please contact us for configurations certified.
