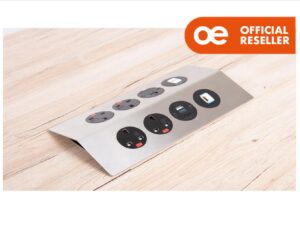

peak 80

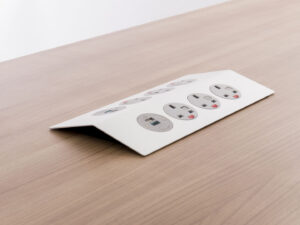

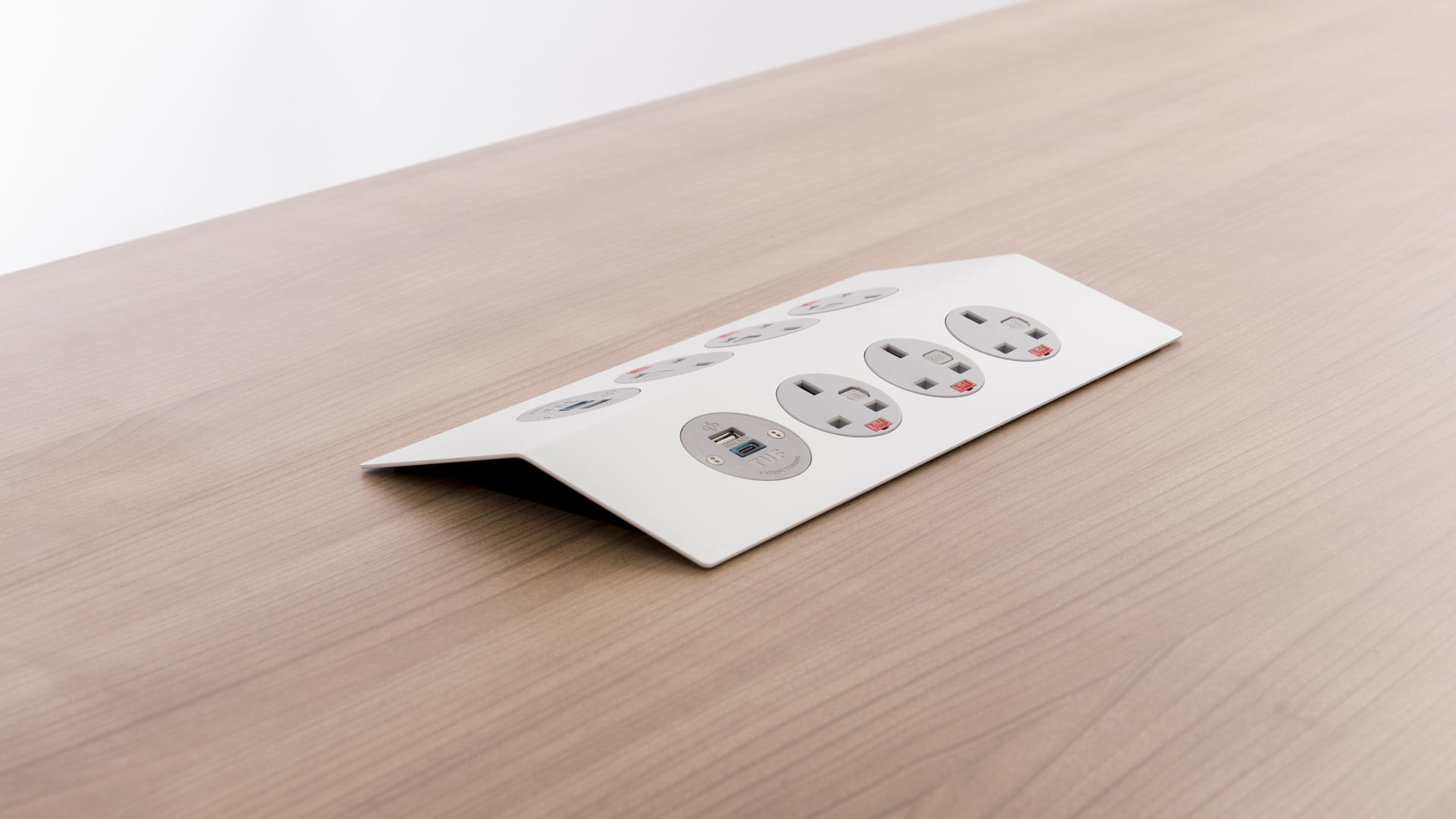

PEAK-80-UKF-TUF25W-White

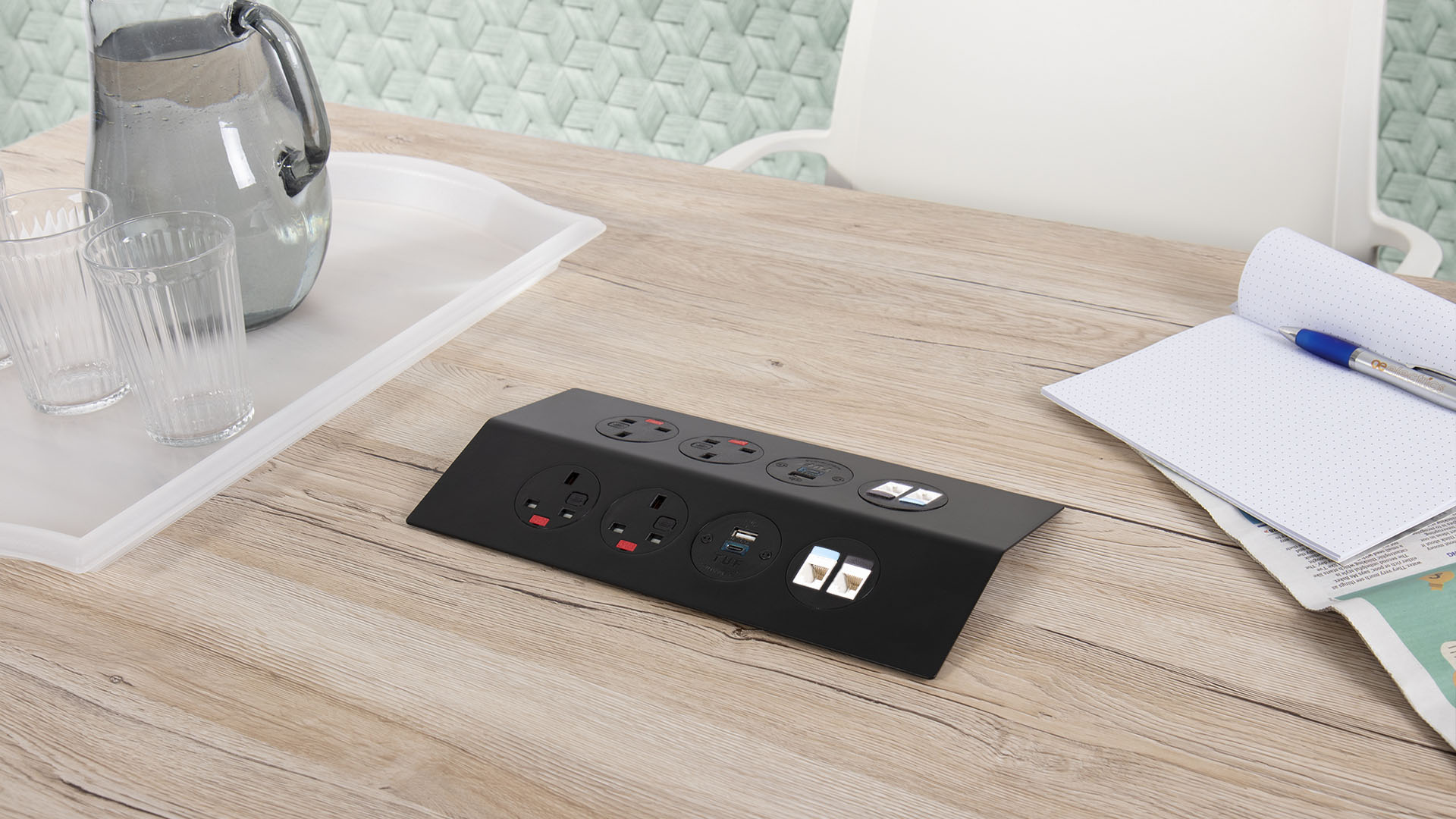

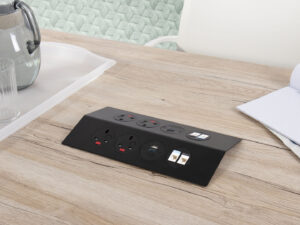

PEAK-80-UKF-TUF-RJ45-Black
Full Screen

Peak 80

Sleek spill-proof profile
Optional TUF A+C 25W
UK & International socket options
50mm Mounting depth

Other configurations and  are available – please contact us for a quote & Lead time.

Datasheet
Product Brochure

£386.00

SKU: DRD-OE-PEAK80 Categories: ,

Description

PEAK with its eye-catching “floating surface” design, is an elegant new approach for providing power and charging in meeting tables.

Choose PEAK in classic brushed stainless steel with black or grey sockets, or in matt white with black or grey sockets for a more contemporary look.

Low profile and available with either 6 or 8 sockets, PEAK can be configured with a wide range of International power sockets and the class leading OE TUF5 Twin USB Fastcharger.

The combination of subtle design features and well manufactured parts allows PEAK to ‘hover’ on the table surface. Made from extruded aluminium, with PC-ABS socket fascias and finished with a stainless steel or powder coated matt white steel faceplate, PEAK has the look of elegance, and is made to last.

Features
Sleek spill-proof profile
Optional TUF 5A
UK & International socket options
50mm Mounting depth

Despite a low visual profile requires only 50mm mounting depth. Four supplied M8 screw clamps are then all that is needed to fix Peak securely in place.

PLEASE NOTE
Due to BS6396, this regulation restricts the maximum number of sockets fed from a single 13A plug supply to 6 sockets, when they are individually fused at 3.15A. Therefore the Peak 80 Units (8 socket) with 7 or more UK 13A sockets in will come with 2 UK 13A Plugs on instead of 1.

Construction:

Brushed stainless steel or powder coated mild steel socket frame Aluminium extruded body 3mm powder coated mild steel end caps

Colours

Main body – Matt white (9003) or brushed stainless steel Socket fascia – grey (with matt white top plate) or black (with brushed stainless steel top plate),  (Nema 5-15R –black only) Cable –white (not 14AWG) or black

Socket Fusing:

To enable compliance to BS6396 UK sockets are fitted with 5 x 20mm anti-surge ceramic fuses, with colour-coded fuse clips to denote the rating (3.15A/5A)

Power cord options:

PEAK may be hardwired to: – mains AC plug, – male Wieland GST18 connector for “soft wiring” e.g. connection to an under-desk power modules or direct to a floor socket via a starter cable. Alternatively, PEAK may be fitted with an OE ‘J’ coupler.

Installation:

PEAK 60 is designed to fit into a 192mm x 132mm cutout, while PEAK 80 is designed to fit into a 272mm x 132mm cutout, both in table tops 10mm-30mm thick.

Quality and Testing:

All PEAK units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch.

  • Visual: Configuration and appearance.
  • Power sockets: Continuity, polarity, insulation & earth
  • USB charger: Output voltage and resistance
  • Data & AV: All sockets continuity tested with batch performance testing.

“We test every pin on every connection in every socket”

CE Marking

All units built with UK and European socket types are CE marked by OE Electrics as complying with:

  • Electromagnetic Compatibility Directive 2014/30/EU
  • Low Voltage Equipment Directive 2014/35/EU
  • RoHS2 Directive 2011/65/EU

Certifications

AC power socket: The fitted sockets will be certified to the appropriate national/international standard eg: BS1363/5733, IEC60884-1, CCC, AS/NZS3112. OE TUF5A: Independently certified to IEC/UL 62368-1. Cable, connectors & mains plug: Independently certified to the appropriate national/international standard.

PEAK is ETL certified/listed for use in the USA and Canada. Details are available here: Intertek. PEAK is denoted by code AK. Please contact us for configurations certified.

Dimensions
