PD Surface 246CU
Full Screen

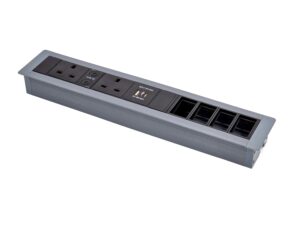

PD Surface unit with 2x UK sockets, 4x 6C cutouts, and dual USB charger Desk cutout 63 x 370mm

PD Surface unit with 2 individually fused UK sockets and a dual USB charger, plus four 6C cut-outs for optional modules.

Desk cut-out: 63 × 370mm. Compatible mains starter lead ordered separately.

£44.50 ex VAT£53.40 inc VAT

SKU: PD SURFACE 2/46CU Categories: , Brand:

Description

PD Surface — 2 UK Sockets, Dual USB & 4 × 6C Cut-outs

Fit accessible power and USB charging directly into your desktop. This PD Surface model provides 2 UK sockets and a dual USB charger, with four 6C apertures for optional data or multimedia modules.

Plan your setup

Designed for a 63 × 370mm desk cut-out, this unit mounts into the worktop using its integral clamp system. Check the installation drawing, desk thickness and clearance beneath the unit before cutting.

Key features

  • 2 UK sockets, individually fused at 5A.
  • 1 × dual USB charger.
  • Four 6C cut-outs for optional data or multimedia fit-out.
  • Integral desk clamp mounting.
  • 3-pole input and output connections.

Download product datasheet (PDF)

Choose your setup

  1. Check the opening: this model requires a 63 × 370mm desk cut-out. Confirm the installation drawing before cutting.
  2. Select modules: order compatible 6C modules and cables to populate the four apertures.
  3. Choose a supply lead: order a compatible mains starter lead in the required length.
  4. Plan cable access: leave room below the worktop for connections and cable routing.

Technical specifications

Product reference PD SURFACE 2/46CU
Mains sockets 2 × UK, individually fused at 5A
USB charging 1 × dual USB charger
Module provision 4 × 6C cut-outs; modules separate
Desk cut-out 63 × 370mm
Mounting Integral desk clamp system
Power connections 3-pole input/output

Frequently asked questions

Is the starter lead included?

The mains starter lead is ordered separately. Choose a compatible lead with enough length for the planned cable route.

Are the 6C cut-outs fitted network ports?

No. They are apertures that can be populated with compatible data or multimedia modules. Choose the modules and cables required for your setup.

Can it fit an existing desk opening?

Check your opening against the required 63 × 370mm cut-out and confirm the installation drawing, thickness and underside clearance.

Need help choosing?

Call 0800 852 1010 or contact Data Room Direct for help with product selection, project quantities and delivery times.
