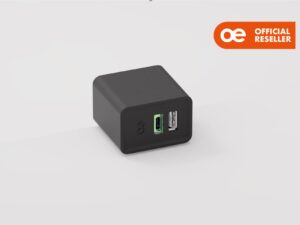

Piccolo DC

60W Type C laptop charging
Unique Reversible Type A connector
Multiple mounting options
24-30V DC power input
Designed for use with OE QikFit 30 PSU
Optimum safety for use in public areas

Made to Order – Please ask for aprox. lead times

Piccolo-DC-datasheet

£54.50

SKU: DRD-Piccolo-DC Categories: ,

Description

The new PICCOLO unit incorporates TUF-HP; our latest evolution in high power USB charging. When combined with our QF30 power supply, PICCOLO provides up to 60W through the USB Type-C port, allowing for laptop charging, and up to 12W fast charge through the USB Type-A port; perfect for phones and tablets.

PICCOLO when combined with our QF30 PSU, splits the USB outlets from the AC/DC power supply thereby minimising the visible footprint whilst providing class leading USB charging. An additional benefit of PICCOLO in combination with our QF30 PSU is the additional safety emanating from being able to locate the AC-DC power conversion separately to the user USB interface.

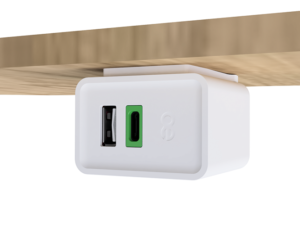

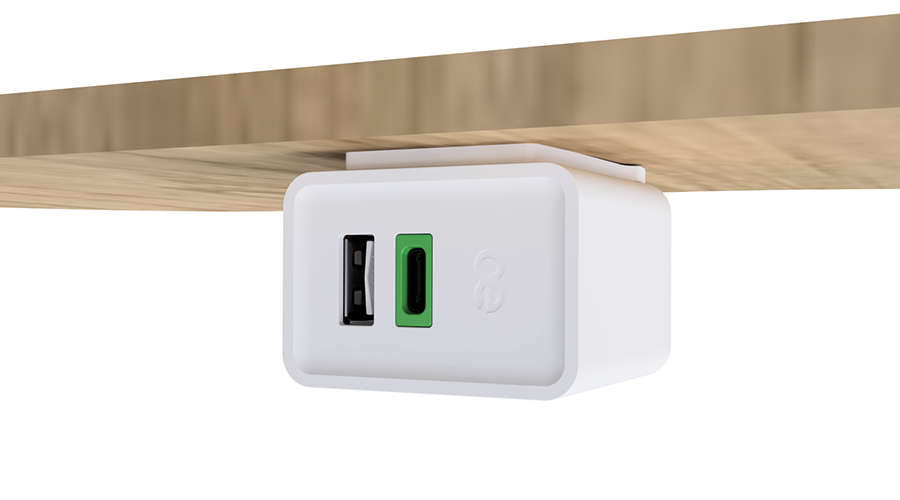

PICCOLO can be mounted on desk or under desk, using screws, clamp bracket, velcro or adhesive pads. Enabling you to provide high power USB charging outlets wherever they are needed.

Construction:

High strength fire retardant polycarbonate

Colours:

Black or white

Power cord options:

GST08 male to female interconnect cable

Installation:

PICCOLO can be mounted on or under a desk top, using screws or Velcro/adhesive pads.
In addition PICCOLO can be mounted to monitor arm pillars using Velcro cable ties.

Quality & Testing:

All PICCOLO units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch:

• Visual: Configuration and appearance

• USB charger: Output voltage and resistance

“We test every pin on every connection in every socket”

CE Marking:

PICCOLO is CE marked by OE Electrics as complying with:

• Electromagnetic Compatibility Directive 2014/30/EU
• Low Voltage Equipment Directive 2014/35/EU
• ROHS3 Directive EU 2015/863

Technical Specifications

USB Charging Outlets 1 x Type C (Reversible)
1 x Type A (Reversible)
Power In connector Male GST08 DC connector
Rated Total Output Power 72W Max
Output Voltages & Currents

TYPE C: MAX 60W
20V/3A, 15V/3A, 9V/3A, 5V/3A (PD3.0)
3.3 – 11.0V / 3.2A (PD PPS Mode)
QC 2/3.0 5V/3A, 9V/2A, 12V/1.5A

TYPE A: MAX 12W
5V / 2.4A  IDR BC1.2,
Apple 12W Mode
Samsung Fast Charge

Input voltage 24 – 30V DC
USB Connector Min. Insertions Type A – 10,000
Type C – 10,000
Over Current Protection Yes. Digital control at 3.3A. Auto reset with LED flash
Short Circuit Protection Yes. Digital control at 3.3A. Auto reset
Over Temperature Protection Auto power reduction to PD45W Mode.
20V/2.25A, 15V/3A, 9V/3A, 5V/3A
Rated Operating Temperature

0° TO 25°C

Certifications – Safety

IEC 62368-1 : 2014

Certifications – EMC

EN61204 : 2018
EN 50121-3-2 (railway)
FCC part 15 (B)

Certifications – ROHS

EU 2015/863

User Replaceable Module

No



Unit Dimensions:

Cable Options:

GST08 cable can be extracted from PICCOLO body  for shallow depth fitting
