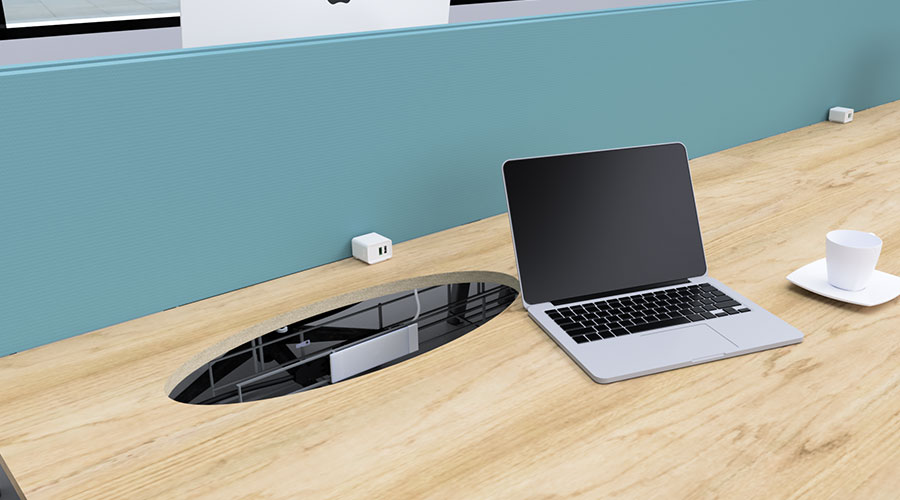

piccolo-PSU-HP-TUF zoom

Hover

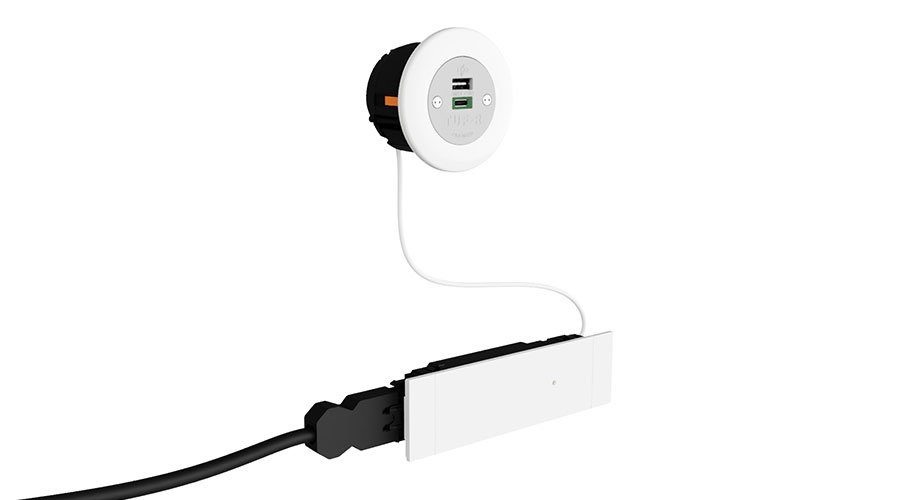

pip-PSU-HP-TUF zoom

Hover

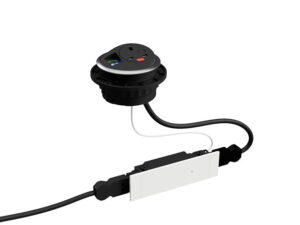

pixelTUF-PSU-HP-TUF zoom

Hover

PSU-white-01-web zoom

Hover

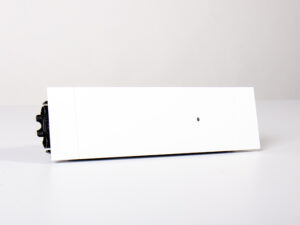

PSU-white-01-web

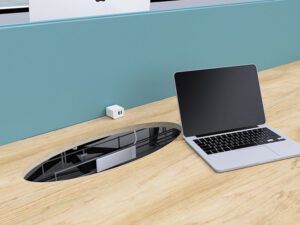

piccolo-PSU-HP-TUF

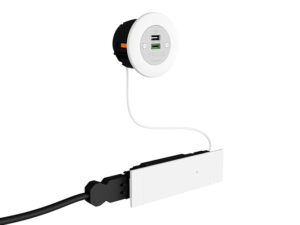

pip-PSU-HP-TUF

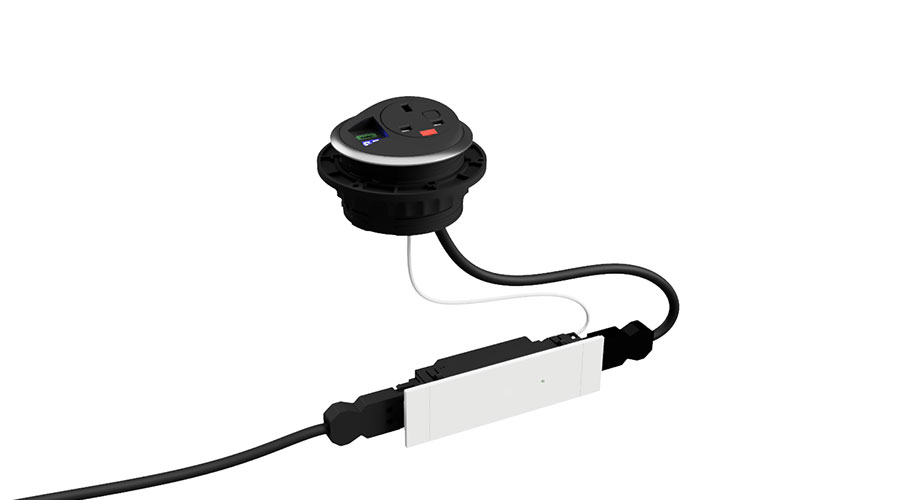

pixelTUF-PSU-HP-TUF

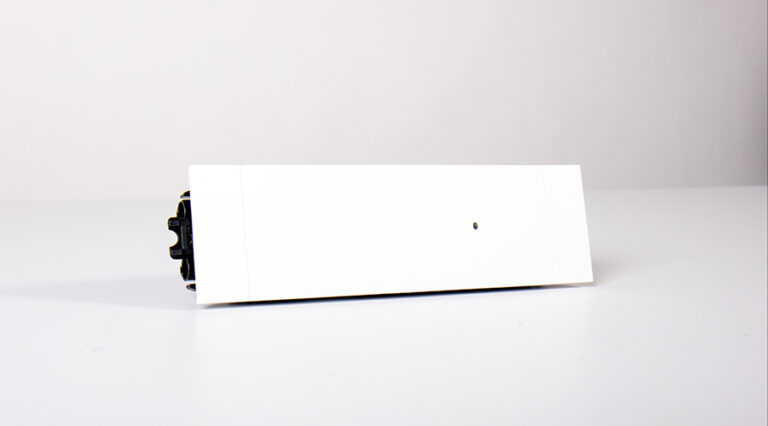

PSU-white-01-web
Full Screen

QF30 PSU

Compact QikFit system PSU
Optimised for TUF-R/HP®
70W max DC output
20A AC throughput capability
International certifications

Made to Order – Please ask for aprox. lead times



Datasheet

£99.99

SKU: DRD-QF30 Category:

Description

QF30 PSU is a compact QikFit modular system 70W AC-DC power supply designed as the ideal partner for our new TUF HP range of USB charging modules.

With its 30V DC output QF30 PSU can also be used for charging compatible battery packs such as our innovative QIKPAC modular battery pack.

GST18 AC power in/out connectors allow full compatibility with other QikFit system modules and OE GST starter and interconnect cables.

Technical Specifications
Input Connectors 1 x Male mains GST18i3 input 20A installation coupler
Output Connectors 1 x Female mains GST18i3 output 20A installation coupler
1 x Female 30V DC GST08
Input Voltage 100-230 VAC 50-60Hz
100-110 VDC
Rated Input Current 1.7A
AC through current rating 20A
Output Power 70W Max
Output Voltage 30V DC
Output Current Rated 2.34A
Standby Power 0.21W
Efficiency 92% Max
Over Current Protection Yes
Short Circuit Protection Yes
Over Temperature Protection Yes
Status Indication Yes Blue LED – Power on
Certifications – Safety UL/IEC 62368-1 :2014 (safety)
Certifications – EMC EN61204 :2018 (EMC)
EN50121-3-2 (railway)
FCC part 15 (B)
Construction:
High strength fire retardant polycarbonate

Colours:
Black or white RAL 9003 front fascia
Black rear body

AC power connectors:
Input – 20A Male GST18i3
Output – 20A female GST18i3

DC output connectors:
Single 6A female GST08

Quality and Testing:
All QF30 PSU’s are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch:

• Visual: Configuration and appearance
• DC Output voltage and resistance

CE Marking:
QF30 PSU’s are CE marked by OE Electrics as complying with:

• Electromagnetic Compatibility Directive 2014/30/EU
• Low Voltage Equipment Directive 2014/35/EU
• ROHS3 Directive 2015/863
• Ecodesign requirements (EU) 2019/1782

Dimensions:
