QIKPAC CARRY

Portable, rechargeable li-ion battery technology with integrated carry handle

PQuikPAC Datasheet

Please contact us for lead times

Price on Request
SKU: DRD-QikPac-Carry Category:

Description

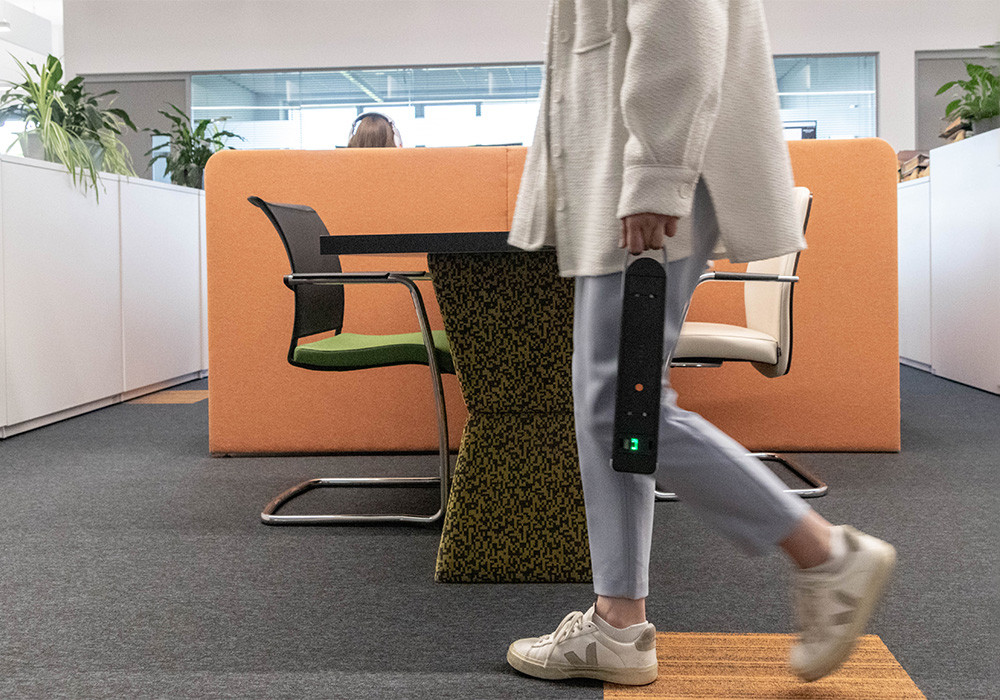

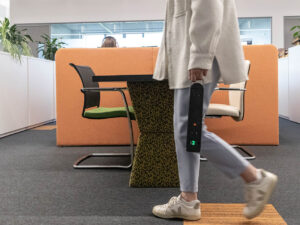

Make your space truly agile with QIKPAC CARRY enabling your workforce to work comfortably anywhere without the stress of finding a wall socket to charge.

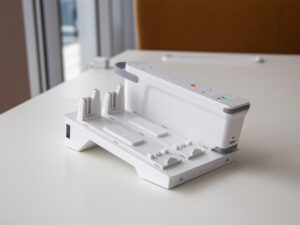

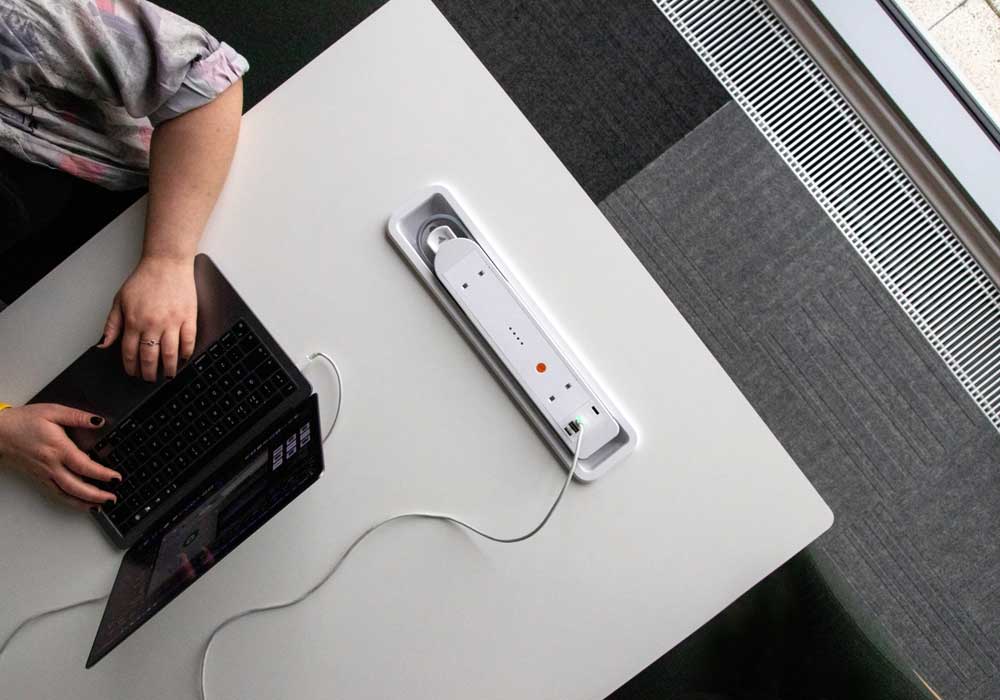

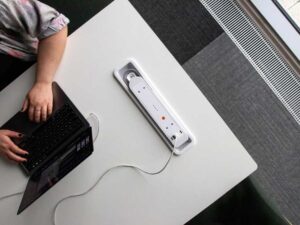

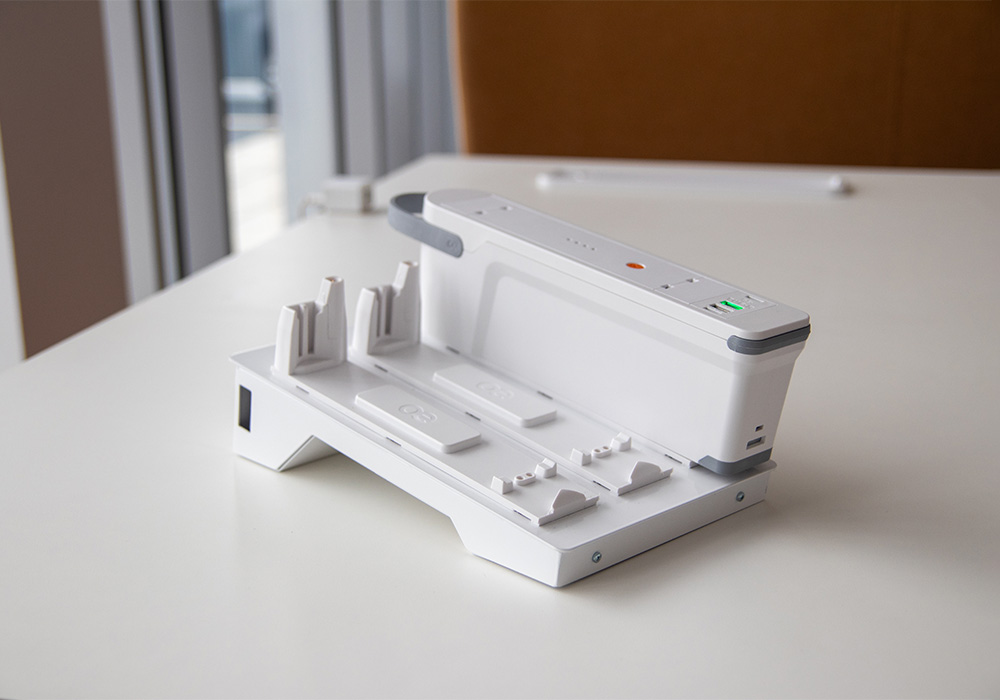

QIKPAC CARRY powers desks, soft seating and people. Its versatile design allows QIKPAC CARRY to be used as a hand-held portable power bank or ‘docked’ into furniture to supply power to a workstation, including height adjustable motors.

Offering 240Wh of battery power and available with high power USB-C outlet, QIKPAC CARRY will charge laptops and other devices all day long. Meaning your workplace is no longer restrained by traditional power supplies. Agile workplaces can then be moved and adapt to the needs of the user.

Battery Capacity 240Wh (Equivalent to 9540mAh)
Useable Capacity 200Wh
Input Charging Voltage  30.0V (Maximum)
TUF-R HP USB A+C outputs Max 60W type C

Max 12W Type A

Full TUF-R HP technical data Please see TUF-R HP data sheet
Output Current via QIKDOC Connect  21.0V to 29.4V

Max 12A

Operating Temperature 10 – 35C
Additional Battery technical, safety, usage and storage data For full data please see our QIKPAC battery data sheet
Weight  1.6kg
Transportation UN38.3 certified

Construction

High strength fire retardant polycarbonate

Colours

Black or white

Power Input (charging only)

GST08 male connector for electrical connection to a QIKPAC Charger Base or QIKDOC Connect

Power Output options

Integrated replaceable TUF-R HP 72W A+C USB charger

4 GST08 6A male connectors when installed in a QIKDOC Connect

Quality & Testing

All QIKPAC CARRY units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch:

Visual: Configuration and appearance

100% electrically tested

CE Marking

QIKPAC CARRY is CE marked by OE Electrics as complying with:

Electromagnetic Compatibility Directive 2014/30/EU

Battery Directive 2006/66/EC

ROHS3 Directive EU 2015/863

UN38.3 Dangerous Goods Transportation

QIKPAC CARRY is certified by Intertek as meeting the requirements of the UN38.3 dangerous goods transportation standard.  Shipment of QIKPAC CARRY units by OE is in UN38.3 certified boxes.

Safety & EMC Certifications

The integral QIKPAC battery pack and TUF-R HP USB charger have comprehensive International safety and EMC certifications – See our QIKPAC and TUF-R HP data sheets for full details.

Dimensions:
