pandorARC | Wireless charger

Please note delivery will be 7-10 working days and larger orders will take longer

DRD- PandorARC datasheet

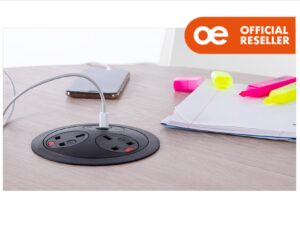

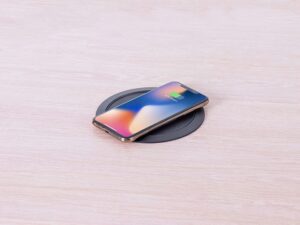

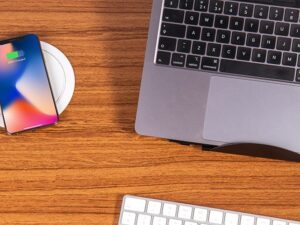

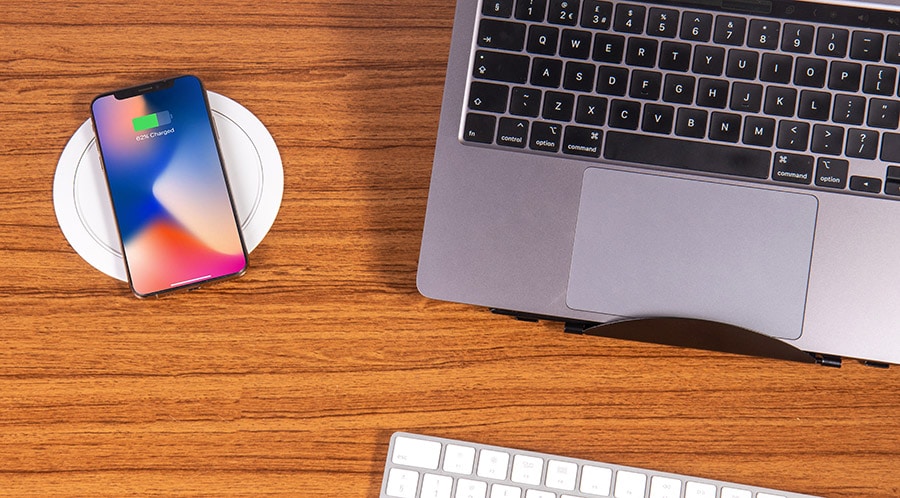

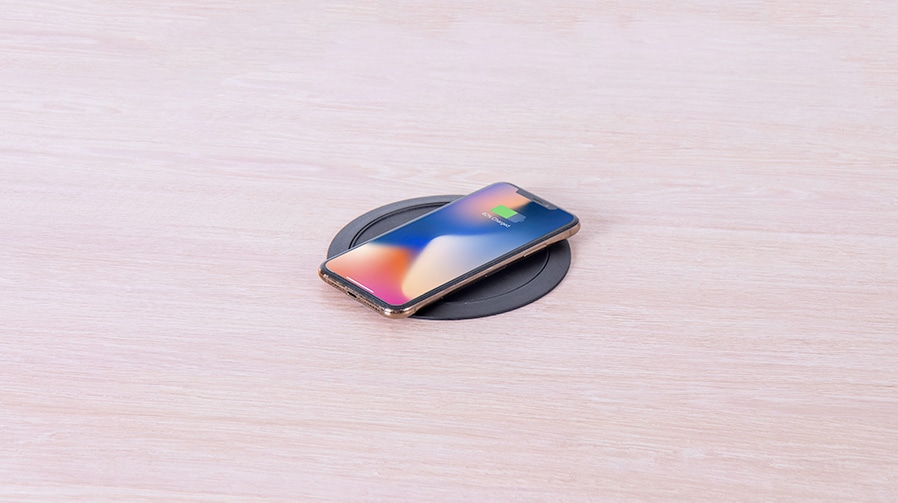

pandorARC provides a compact, all-in-one, power, and charging solution. Fitting neatly into a 128mm+grommet hole, pandorARC allows you to make the most of your space, whilst offering 10W Qi-compatible wireless charging as well as a choice combination of 25W USB charging and standard AC power.

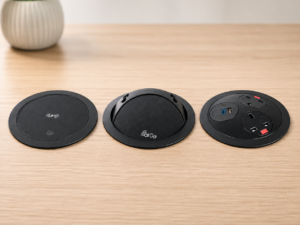

Available in both black and white with a choice of international sockets, pandorARC lends itself perfectly to meeting tables, hotel conference rooms, office hubs, and more! No matter what device you need to charge, pandorARC is sure to offer the solution.

£179.00

SKU: DRD-PandorARC Categories: ,

Description

Construction:

Body and grommet – Fire retardant PC/ABS
Securing nut – Nylon 6

Colours

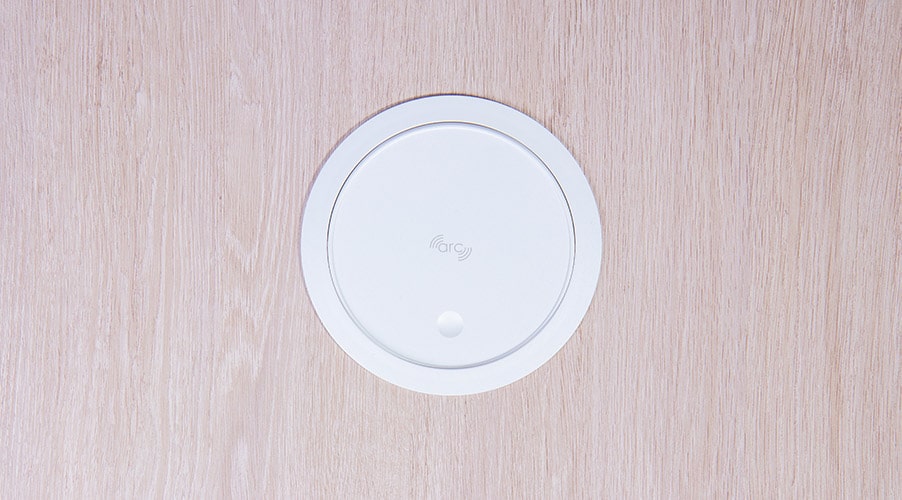

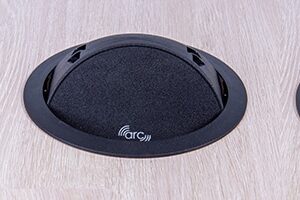

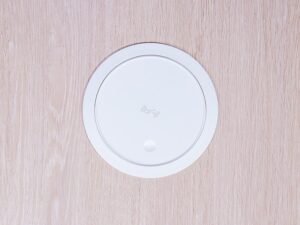

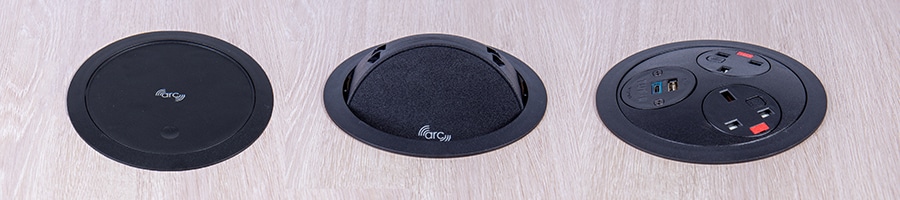

White (9003) body with grey socket fascias, or Black body with black socket fascias.

Socket Fusing:

To enable compliance to BS6396 UK sockets are fitted with 5 x 20mm anti-surge ceramic fuses, with colour-coded fuse clips to denote the rating (3.15A/5A)

Power cord options:

The pandorARC power cord may be hard-wired to a Wieland GST18 male connector, the appropriate mains AC plug for the socket type fitted, or an OE J Coupler for connecting two or more pandorARC units to a single mains supply socket.

Quality and Testing:

All pandorARC units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch.

Visual: Configuration and appearance.
Mechanical: correct operation of the rotating mechanism
Power sockets: Continuity, polarity, insulation & earth
USB charger: Output voltage and resistance
Wireless charger – Correct charging power

“We test every pin on every connection in every socket”

Certifications:

• AC Power socket: Certified to the appropriate national/international standard eg: BS1363/5733, IEC60884-1, UL498, CCC, AS/NZS3112
• OE TUF-R 25W IEC/UL 62368-1
• Wieland connectors – IEC 61535
• Wireless Charger – EU

Wireless Charger Specifications:

Output Power 10W MAX
Input Power 15W max (DC5V 2A / 9V 1.67A)
Standby Power 0.45W
Charging Z-Distance 0-8mm (coil to coil)

TUF25W USB Specifications:

Internal Over Temp Protection Yes, Self resetting, Blue & Green LED Flash
Internal Over Voltage Protection Self Limiting
Output Over Current Protection Self Limiting Type C – Flash Green Type A – Flash Blue
Short Circuit Protection Self Resetting
USB Sockets Gold plated for improved contact.
Type A and Type C manufactured for minimum 10,000 insertions
Power Indicator Blue LED Standard Voltage
Green LED Higher Voltage (PD/QC)
Charge Standards IDR – Intelligent Device Recognition PD3.0; QC2/QC3
Standards Certified to IEC 62368-1 : 2014 (safety) and EN61204 : 2000 (EMC)
USB Charging Outlets 1x Type A Female (Reversible)

1x Type C Female (Reversible)

Charging Current Type C: 5V/3A, 9V/2.22A, 15V/1.65A, 20V/1.2A (PD3.0)
Type A: 5V/3A, 9V/2A, 12V/1.5A (QC3.0/QC2.0)
Combined: (A+C) : 5V/4.0A (MAX)
Rated Total Output 25W
AC Voltage Range 100-240 VAC at 50/60Hz
AC Input Current (Full Load) Maximum 0.6A
Efficiency Up to 90%
Environment 0-25°C
Standby Power 0.05W

TUF-R HP USB Specifications:

USB Charging Outlets 1x Type A Female (Reversible)
1x Type C Female (Reversible)
Charging Current Type C: Max 60W 20V/3A, 15V/3A, 9V/3A, 5V/3A (PD3.0) 3.3 – 11.0V / 3.2A (PD PPS Mode) QC 2/3.0 5V/3A, 9V/2A, 12V/1.5A Type A: Max 12W 5V / 2.4A IDRBC1.2, Apple 12W Mode Samsung Fast Charge
Total Output Power 70W Max
Input Voltage 24-30V DC
Environment 0-25°C
Over Current Protection Yes. Digital control at 3.3A. Auto reset with LED flash.
Short Circuit Protection Yes. Digital control at 3.3A. Auto reset.
Over Temperature Protection Auto power reduction to PD 45W mode. 20V/2.25A, 15V/3A, 9V/3A, 5V/3A
Field Replaceable Yes, when in 42mm canister & QF05 solution.

QF30 PSU Specifications:

Input Connectors 1x Male mains GST18i3 input 20A installation coupler
Output Connectors 1x Female mains GST18i3 output 20A installation coupler
1x Female 30V DC GST08 output
Input Voltage 100-230 VAC 50-60Hz
100-110 VDC
Rated Current Input 1.7A
AC through current rating 20A
Output power 70W max
Output Voltage 30V DC
Output Current Rated 2.34A
Standby power 0.21W
Efficiency 92% Max
Over Current Protection Yes
Short Circuit Protection Yes
Over Temperature Protection Yes
Status Indication Yes – Blue LED – Power on
Standards

UL/IEC 62368-1 : 2018 (safety)
EN61204 : 2018 (EMC) EN 50121-3-2 (railway)
FCC part 15 (B)

The QF30 PSU must be paired with the TUF-R HP and GST08 lead.
