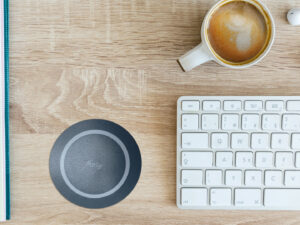

ARC-H-LD-Black

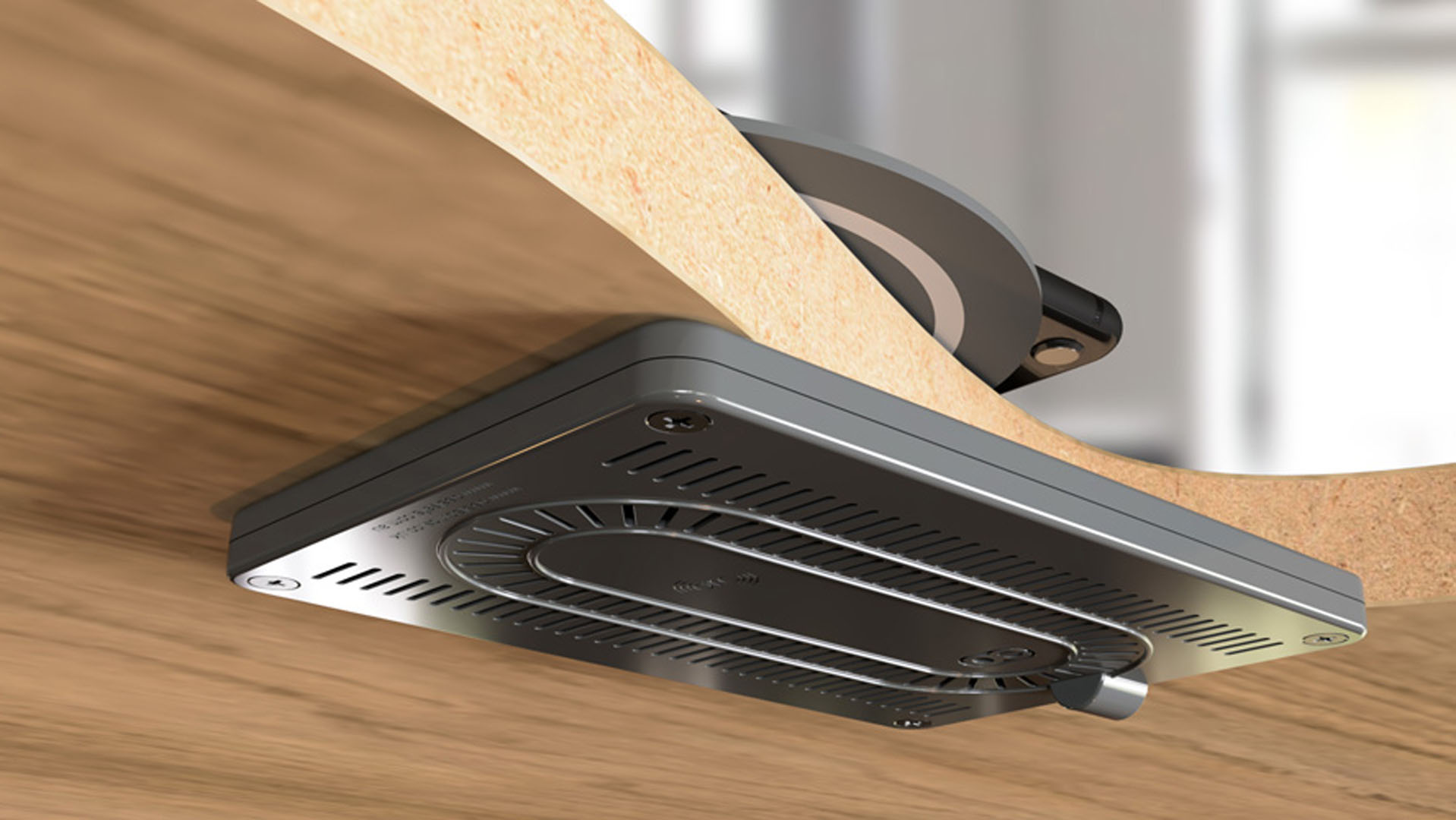

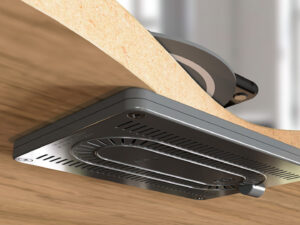

ARC-H-LD-Black04

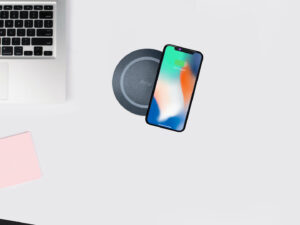

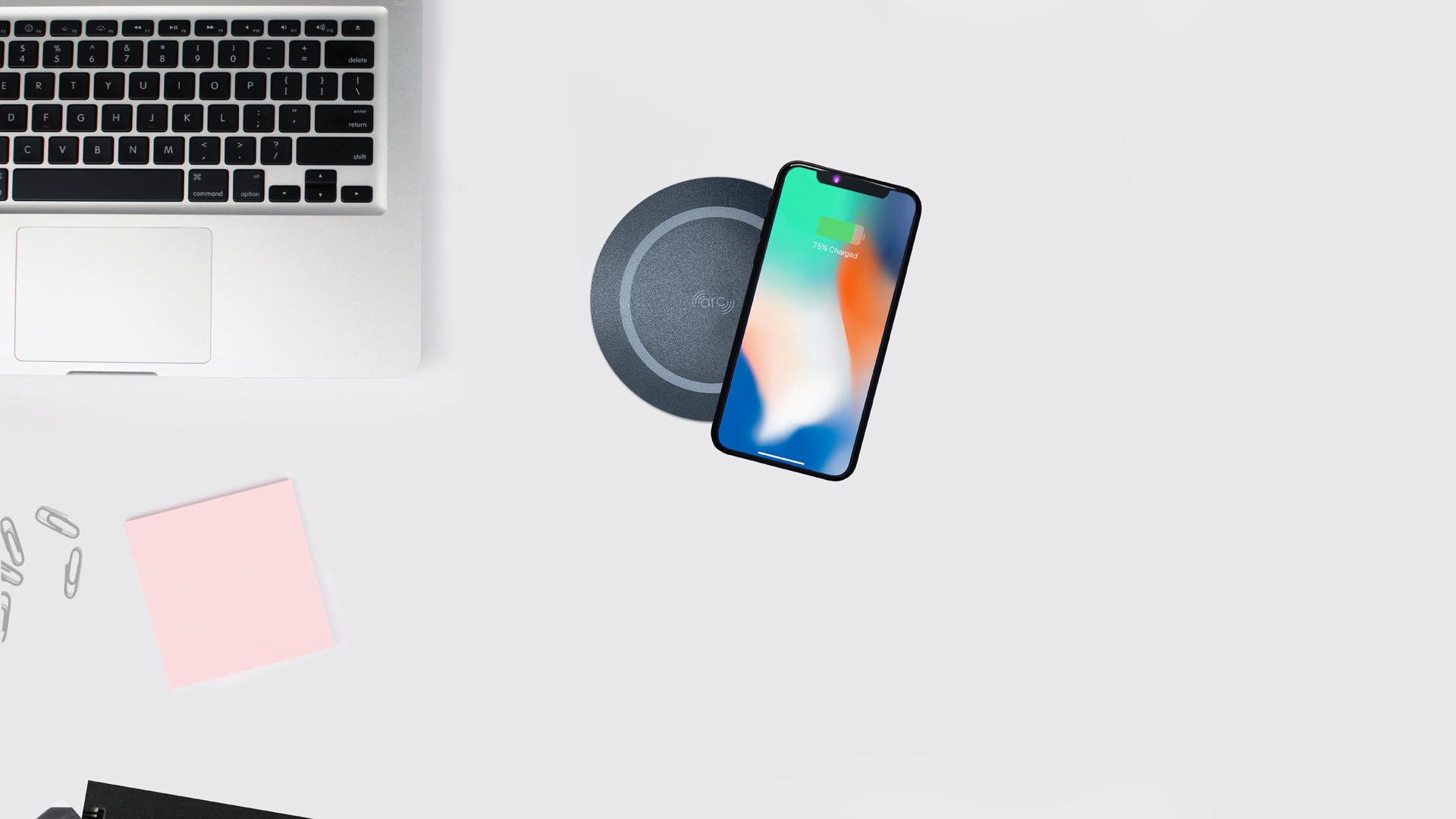

ARC-H-LD-Black02

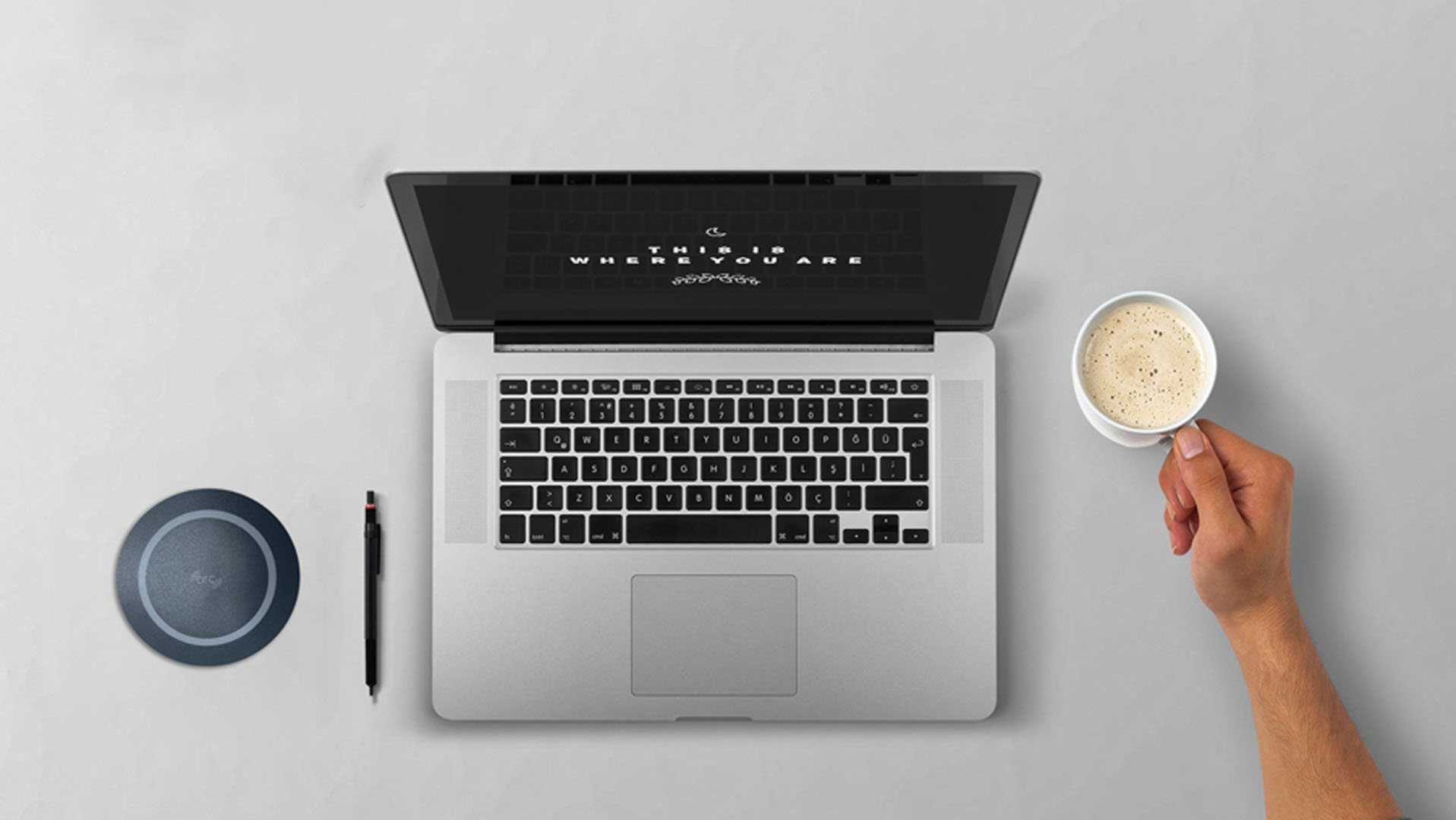

ARC-H-LD-Black03
ARC-H-LD-Black05
ARC-H-LD-Black06
White office desk with a notebook and pencils, glasses

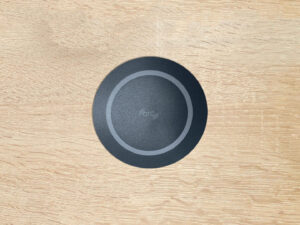

ARC-H-LD-Black-Pad-Only
Full Screen

Arc -h LD sub-surface charger (wireless)

15 Watts of charging power
Desk Thicknesses from 20-50mm
No cutting install
Fast charge for Samsung (10W)
Apple (7.5W)

Datasheet
User Manual
Universal Instructions

Original price was: £91.00.Current price is: £49.90.

SKU: DRD-Arc-h-LD Categories: , ,

Description

In box magnetic alignment card will work for desks up to 25mm thick. An electronic alignment guide is separately available for desks over 25mm thick.

The arc-H LD sub surface wireless charger offers the ultimate in charging convenience. Designed with a charging range of (20-50mm)*, arc-H LD can be installed without the need to cut into work surfaces.

OE’s patented design uses a resonant coil to focus the energy field and provide maximum efficiency and the fastest possible charging speeds. arc-H LD is available in Basalt Grey with a Basalt Grey resonator pad or in Black with a White resonator pad.

Providing 15 Watts of charging power arc-H LD is among the fastest wireless charger on the market! Keeping in mind it’s also a through surface charger! arc-H LD is great for fast charging or if you’ve got a couple of minutes a full charge.

*20-30mm to comply with FCC Part 15

*Surfaces thicker than 25mm require OE’s electronic alignment tool

arc-h LD Specifications (20-50mm):

Output power: Up to 15W
Input power: 19V/0.94A
Standby power: 0.2W
Charging Z-Distance:

20-30mm surface thickness to comply with FCC Part 15 or 20-50mm

Desk Thickness:

No under-desk routing for surfaces 20-30mm. Thicker surfaces require under-desk routing to comply with FCC requirements.

Certification:

Qi Compatible
FCC Part 15  (when installed under surfaces 20-30mm (0.78”-1.18”) thick)
IEC 60950-1 (Safety)
EN62311 (Health) EN 301 489-1
EN 301 489-3 (EMC)
EN 303 417 (Radio

Available colours:

ARC-H LD – RAL 7012 Basalt Grey with RAL 7012 Basalt Grey Resontor Pad
ARC-H LD – Black with White Resontor Pad

In the box:

1x ARC-H (LD),
1 x Power adaptor with (1.5m) lead and NEMA, UK, Euro 2 pin, and Australian/Chinese plugs

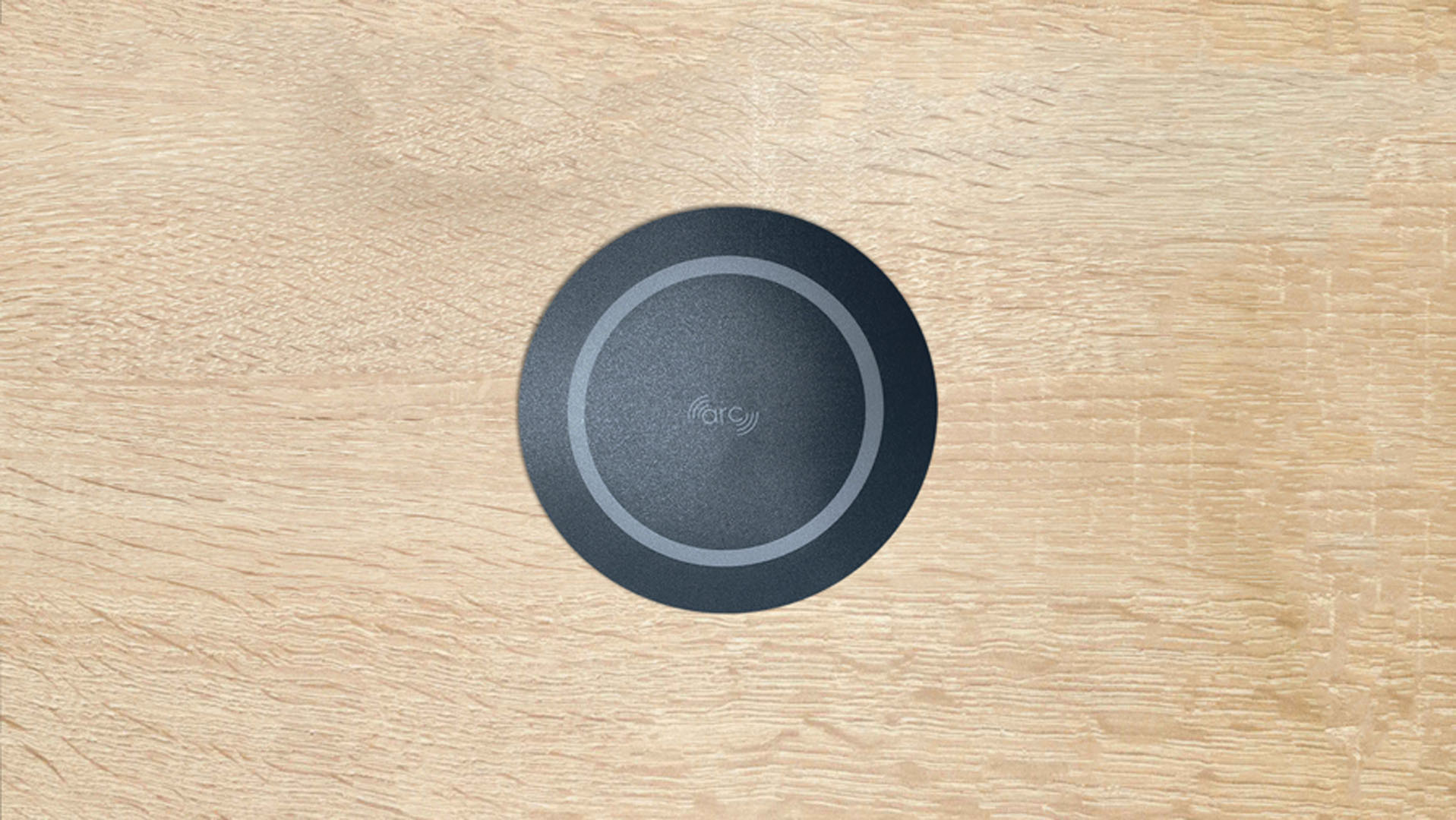

1 x Resonator pad,
1 x Alignment Magnet,
1 x Alignment Template,
3 x Cable Clips,
1 x Installation Manual

Compatible phones:

SAMSUNG S7
SAMSUNG S8
SAMSUNG NOTE 9
SAMSUNG S9+
SAMSUNG S10
iPhone 8P
iPhone X
iPhone XR
iPhone XS Max
iPhone XS
iPhone 11
iPhone 11 Pro
iPhone 12
iPhone 12 Pro
XIAOMI MIX 2S
XIAOMI 9
Huawei Mate20 Pro
Google Pixel 3

Colours:

arc-H LD is available in Basalt Grey with a Basalt Grey resonator pad or in Black with a White resonator pad.

arc-h LD Dimensions

arc-h Front View

arc-h Side View
